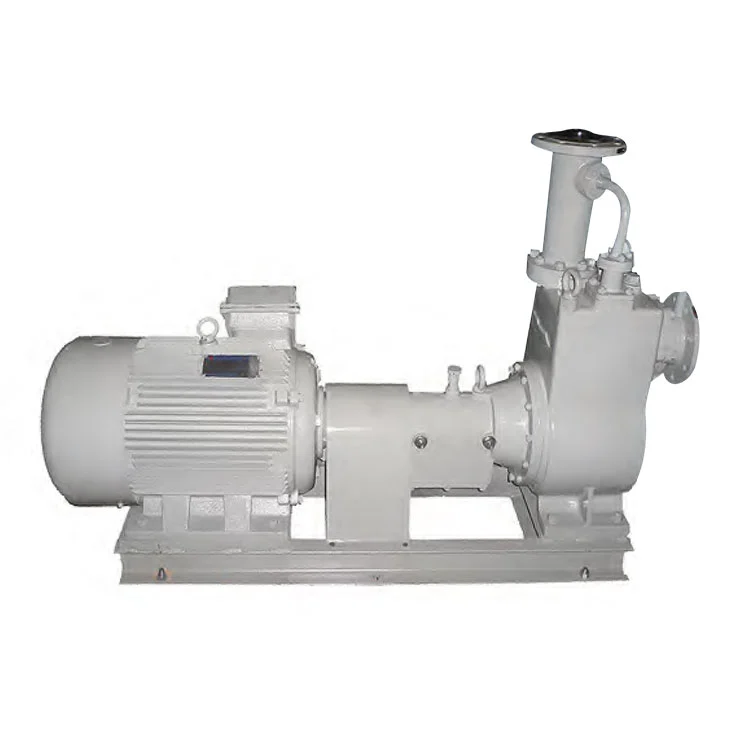

CYZ Marine Horizontal Self-Priming Centrifugal Oil Pump

CYZ marine horizontal self-priming centrifugal oil pump is a durable and corrosion-resistant product from Cagon, we not only offer different kinds of marine pumps, but also have other marine equipments, together provide you a comprehensive solution. Please feel free to ask us for price list and product customized service.

Send Inquiry

Product Description

The CYZ marine horizontal self-priming centrifugal oil pump is used on boats and ships to transport petrochemicals like petrol, coal oil, and diesel oil. The medium temperature can range from -20℃ to 80℃. This series is a high - quality marine cargo oil pump, also suitable for oil transfer to land oil tankers and tanker trucks. It can handle seawater and fresh water below 80℃. When equipped with a non - corrosive mechanical seal, it can transport chemical liquids.

Main technical parameter:

Parameters in case of power supply frequency of 50Hz

Type	(50Hz 3 φ 380v) main technical parameter					Motor type power Kw		weight Kg
Type	Capacity m3/h	Head m	Speed r/min	NPSHr m	Shaft power kw	Motor type power Kw		weight Kg
40CYZ-20	6.3	20	2900	3.5	0.80	Y802-2H	1.1
40CYZ-25	6.3	25	2900	3.5	1.07	Y90S-2H	1.5
40CYZ-32	6.3	32	2900	3.5	1.48	Y90L-2H	2.2
40CYZ-40	6.3	40	2900	3.5	1.96	Y100L-2H	3
50CYZ-25	12.5	25	2900	3.5	1.70	Y90L-2H	2.2
50CYZ-32	12.5	32	2900	3.5	2.37	Y100L-2H	3
50CYZ-40	12.5	40	2900	3.5	3.16	Y112M-2H	4
50CYZ-50	12.5	50	2900	3.5	4.15	Y132S1-2H	5.5
65CYZ-25	25	25	2900	4	2.79	Y112M-2H	4
65CYZ-32	25	32	2900	4	3.75	Y132S1-2H	5.5
65CYZ-40	25	40	2900	4	4.87	Y132S1-2H	5.5
65CYZ-50	25	50	2900	4	6.55	Y132S2-2H	7.5
65CYZ-63	25	63	2950	4	8.76	Y160M1-2H	11
80CYZ-21	60	21	2900	4	5.12	Y132S2-2H	7.5
80CYZ-25	50	25	2900	4	5.20	Y132S2-2H	7.5
80CYZ-32	50	32	2950	4	6.77	Y160M1-2H	11
80CYZ-40	50	40	2950	4	8.59	Y160M1-2H	11
80CYZ-50	50	50	2950	4	11.27	Y160M2-2H	15
80CYZ-63	50	63	2950	4	14.70	Y160L-2H	18.5
80CYZ-80	50	80	2950	4	19.32	Y180M-2H	22
100CYZ-40	100	40	2950	4	16.27	Y160L-2H	18.5
100CYZ-50	100	50	2950	4	20.65	Y200L1-2H	30
100CYZ-65	100	65	2950	4	27.23	Y200L1-2H	30
100CYZ-75	70	75	2950	4	24.2	Y200L1-2H	30
100CYZ-80	100	80	2950	4	34.61	Y200L2-2H	30
150CYZ-20	250	20	1480	4.5	22.7	Y200L-4H	30
150CYZ-20A	210	18	1480	4.5	17.7	Y180M-4H	22
150CYZ-50	200	50	1480	5	42.59	Y250M-4H	55
150CYZ-63	200	63	1480	5	57.24	Y280S-4H	75
150CYZ-80	200	80	1480	5	72.68	Y280M-4H	90
200CYZ-50	400	50	1480	5	76.71	Y280M-4H	90
200CYZ-63	400	63	1480	5	99.45	Y315S-4H	110
200CYZ-80	400	80	1480	5	130.06	Y315L1-4H	160

Parameters in case of power supply frequency of 60Hz

Type	(60Hz 3 φ 440v) main technical parameter					Motor type power Kw		weight Kg
Type	Capacity m3/h	Head m	Speed r/min	NPSHr m	Shaft power kw	Motor type power Kw		weight Kg
40CYZ1-20	7.6	28.8	3500	3.8	1.38	Y90L-2H	2.2
40CYZ1-25	7.6	36	3500	3.8	1.85	Y100L-2H	3
40CYZ1-32	7.6	46	3500	3.8	2.66	Y112M-2H	4
40CYZ1-40	7. 6	57.6	3500	3.8	3.39	Y112M-2H	4
50CYZ1-25	15	36	3500	3.8	2.93	Y112M-2H	4
50CYZ1-32	15	46	3500	3.8	4.1	Y132S1-2H	5.5
50CYZ1-40	15	57.6	3500	3.8	5.46	Y132S2-2H	7.5
50CYZ1-50	15	72	3550	3.8	7.17	Y160M1-2H	11
65CYZ1-25	30	36	3500	5	4.82	Y132S1-2H	5.5
65CYZ1-32	30	46	3500	5	6.48	Y132S2-2H	7.5
65CYZ1-40	30	57.6	3550	5	8.42	Y160M1-2H	11
65CYZ1-50	30	72	3550	5	11.3	Y160M2-2H	15
65CYZ1-63	30	90.7	3550	5	15.1	Y160L-2H	18.5
80CYZ1-21	72	30.2	3550	5.6	8.8	Y160M1-2H	11
80CYZ1-25	60	36	3550	5	9.1	Y160M1-2H	11
80CYZ1-32	60	46	3550	5	11.7	Y160M2-2H	15
80CYZ1-40	60	57.6	3550	5	14.8	Y160L-2H	18.5
80CYZ1-50	60	72	3550	5	19.5	Y180M-2H	22
80CYZ1-63	60	90.7	3580	5	25.4	Y200L1-2H	30
80CYZ1-80	60	115.2	3580	5	33.4	Y225M-2H	45
100CYZ1-40	120	57.6	3580	5	28.1	Y200L2-2H	37
100CYZ1-50	120	72	3580	5	35.7	Y225M-2H	45
100CYZ1-65	120	93.6	3580	5	47.1	Y250M-2H	55
100CYZ1-75	84	108	3580	6	41.8	Y250M-2H	55
100CYZ1-80	120	115.2	3580	5	59.8	Y280S-2H	75
150CYZ1-20	300	28.8	1780	6.3	39.2	Y250M-4H	55
150CYZ1-20A	252	25.9	1780	6.3	30.6	Y225S-4H	37
150CYZ1-50	240	72	1780	6	73.6	Y280M-4H	90
150CYZ1-63	240	90.7	1780	6	98.9	Y315S-4H	110
150CYZ1-80	240	115.2	1780	6	125.6	Y315L1-4H	160
200CYZ1-50	480	72	1780	6	132.5	Y315L1-4H	160
200CYZ1-63	480	90.7	1780	6	171.8	Y315L2-4H	200
200CYZ1-80	480	115.2	1780	6	224.7	Y355L1-4H	280
