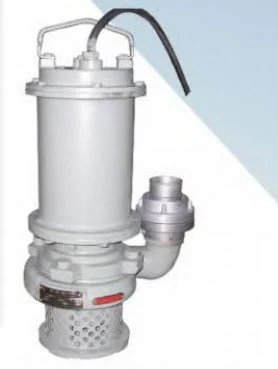

Our CQX marine submerged motor pump has different models for you to choose according to your needs. Among these models, CQX10-16-1.1S&CQX40-15-3 pumps must be submerged when running, motor pump is not allowed to run under no-water state; For the others, their motors are allowed to conduct no-water running due to their patterns of cooling for motors,which are conducted by-water flowing through the interlining of motor casing.
| Type |
Capacity m3/h |
Head m |
power kw | Speed r/min |
Voltage V |
Efficiency % |
Diameter of discharge mm |
weight kg |
(mm ) External dimension | |
| D | H | |||||||||
| CQx10-16-1.1S | 10 | 16 | 1.1 | 2900 | 380 | 48 | 40 | 28 | shown in the external | |
| CQx40-15-3S | 40 | 15 | 3 | 2900 | 380 | 50 | 60 | 50 | shown in the external | |
| CQx30-20-4 | 30 | 20 | 4 | 2900 | 380 | 52 | 50 | 65 | φ249 | 613 |
| CQx40-15-4 | 40 | 15 | 4 | 2900 | 380 | 50 | 50 | 73 | φ249 | 613 |
| CQx40-32-7.5 | 40 | 32 | 7.5 | 2900 | 380 | 55 | 65 | 130 | φ325 | 734 |
| CQx50-20-5.5S | 50 | 20 | 5.5 | 2900 | 380 | 55 | 65 | 75 | φ318 | 725 |
| CQx65-15-5.5 | 65 | 15 | 5.5 | 2900 | 380 | 55 | 85 | 100 | φ317 | 725 |
| CQx150-17-15 | 150 | 17 | 15 | 2900 | 380 | 64 | 125 | 210 | φ500 | 970 |
| CQx180-28-37 | 180 | 28 | 37 | 2950 | 380 | 62 | 150 | 447 | φ450 | 1100 |
| CQx250-15-18.5 | 250 | 15 | 18.5 | 2900 | 380 | 61 | 150 | 205 | φ385 | 920 |
Standard configuration, the water outlet of the pump is equipped with a fire-fighting quick connector, and a fire hose (either 10 meters or 20 meters in length) is provided. The length of the cable is 20 meters.
