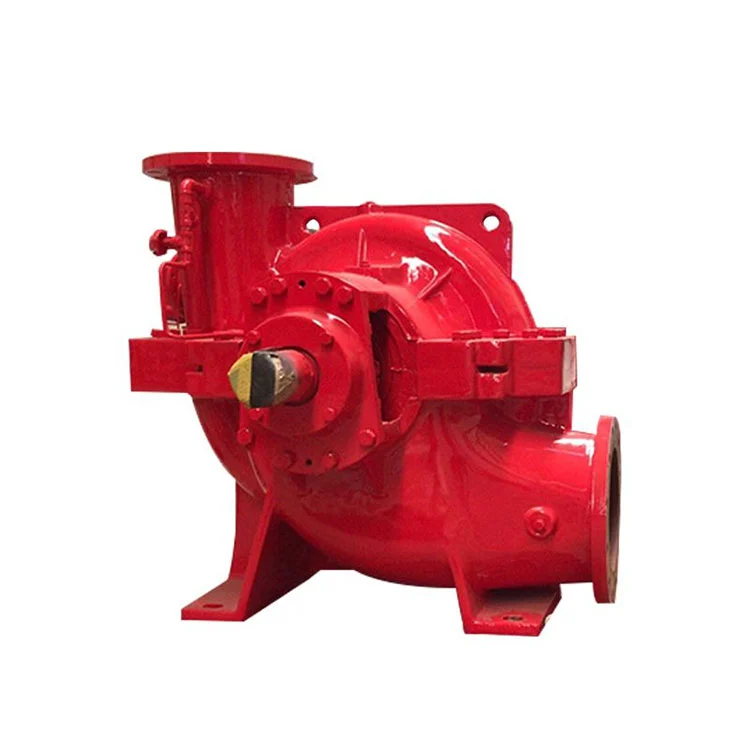

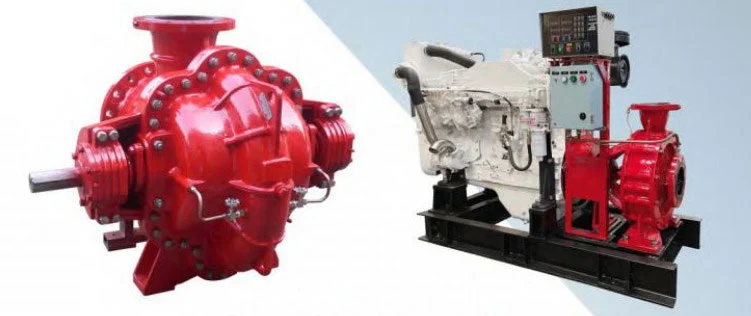

This series of CXB marine external fire pump is mainly driven by marine diesel engine. Those with smaller power may also be driven by motor.
Viewing fro the motor, there is two turning you can choices, but the thread in the shaft must be inverse. We can provide fire fighting cannon and control system bases to client's request.
| Type | main technical parameter | drive power |
weight kg |
||||
|
Capacity m3/h |
Head m |
speed r/min |
NPsHr m |
shaft power kw |
|||
| CXB150-125-400G | 180 | 130 | 2300 | 63 | |||
| CXB200-150-370 | 300 | 160 | 2950 | 7 | 185 | ~450 | |
| CXB200-150-370A | 270 | 145 | 2950 | 7 | 155 | ~450 | |
| CXB200-150-350 | 300 | 130 | 2950 | 7.8 | 150 | ~450 | |
| CXB200-150-350A | 270 | 120 | 2950 | 7.8 | 118 | ~450 | |
| CXB200-150-420/2 | 300 | 150 | 1800 | 4.5 | 210 | ||
| CXB200-150-530L | 300 | 97 | 1480 | 3.5 | 210 | ||
| CXB200-150-530G | 300 | 140 | 1800 | 4 | 163 | ~370 | |
| CXB200-150-530GA | 280 | 125 | 1800 | 4 | 138 | ~370 | |
| CXB200-150-530GB | 260 | 110 | 1800 | 4 | 116 | ~370 | |
| CXB250-200-530G | 750 | 130 | 1800 | 7.5 | 354 | ~400 | |
| CXB250-200-530GA | 700 | 115 | 1800 | 7.5 | 300 | ~400 | |
| CXB250-200-530GB | 650 | 102 | 1800 | 7.5 | 254 | ~400 | |
| CXB250-200-530GC | 600 | 90 | 1800 | 7.5 | 216 | ~400 | |
| CXB300-200-530G | 1000 | 140 | 1800 | 8 | 471 | ~450 | |
| CXB300-200-680G | 750 | 160 | 1500 | 6.5 | 445 | ~580 | |
| CXB350-250-600G | 1700 | 160 | 1800 | 10.8 | 915 | Should be not less than 1.1 times the shaft power. | ~580 |
| CXB350-250-600GA | 1600 | 140 | 1800 | 10.8 | 777 | ~580 | |
| CXB350-250-600GB | 1500 | 120 | 1800 | 10.8 | 654 | ~580 | |
| CXB350-250-600GC | 1400 | 100 | 1800 | 10.8 | 545 | ~580 | |
| CXB350-250-580 | 1300 | 170 | 1800 | 7.5 | 752 | ~1500 | |
| 1230 | 105 | 1500 | 5.8 | 451 | |||
| CXB350-300-580A | 1250 | 140 | 1800 | 8 | 607 | ~1500 | |
| 1025 | 95 | 1500 | 4.5 | 342 | |||
| CXB350-250-580G | 1500 | 160 | 1800 | 8.4 | 843 | ~1230 | |
| 1250 | 110 | 1500 | 5.5 | 486 | |||
| CXB400-300-610 | 1750 | 175 | 1800 | 1043 | |||
| 1500 | 160 | 1800 | 817 | ||||
| CXB400-350-530G | 2400 | 120 | 1800 | 8 | 956 | ||
| CXB450-350-580G | 2900 | 140 | 1800 | 11 | 1350 | ||
| CXB400-350-620 | 1750 | 180 | 1800 | 8 | 1086 | ~1800 | |
| 1435 | 120 | 1500 | 4.5 | 610 | |||
| CXB500-400-740 | 4300 | 175 | 1500 | 10.8 | 2411 | ~2800 | |
| CXB500-400-740A | 3800 | 160 | 1500 | 9.7 | 1948 | ~2800 | |
