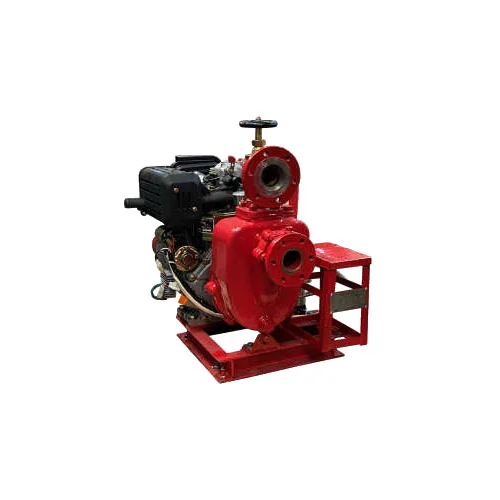

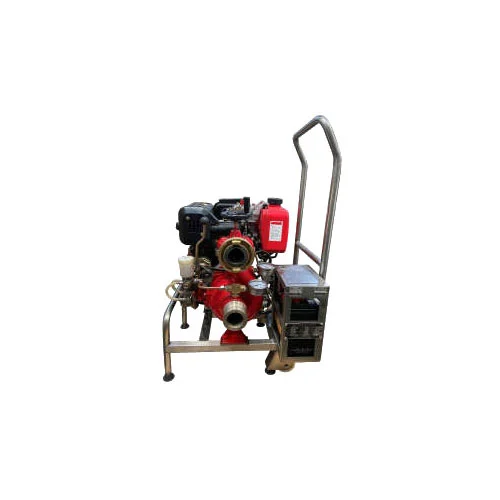

The CWY marine diesel emergency fire pump integrates widely acclaimed features such as light weight, small size, flexibility in moving, rapid starting, rapid discharge, large capacity of fuel tank, anti corrosion, reliability and ease of maintenance etc, as two types of pumps are available for sale, user should note his/her preference when making an order.
When the Diameter is betweenф50 to ф65, the pump set may be started by manual or electrically started, the diesel engine may be vertical, single cylinder, 4 stroke and air cooled.

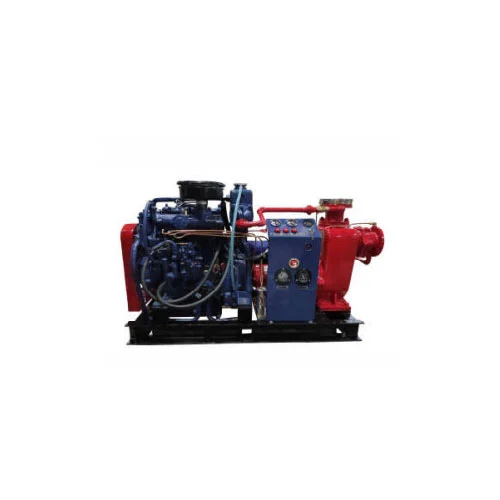

When the Diameter is between80 to ф100, the pump set may be started by spring starter or electrically started, the diesel engine may be vertical, multi-cylinder, 4-stroke and water cooled, the outlet may be deployed as required for air cooling.
| Type |
Capacity (m3/h) |
Head (m) |
speed (r/min) |
suction head (m) |
Time of discharge (s) |
| 65CWY-30 | 25 | 30 | 3600 | 6~7 | ≤35 |
| 65CWY-40 | 30 | 40 | 3600 | 6~7 | ≤35 |
| Type | Diesel engine |
Weight kg |
Diameter of discharge mm |
||
| Type |
power kW |
||||
| 65CWY-30 | 186FA | 6.3 | 98/83 | 65/50 | |
| 65CWY-40 | 186FA | 6.3 | 110/85 | 65/50 | |
| Type |
Capacity m3/h |
Head m |
speed r/min |
suction head m |
Time s |
diesel engine |
suction diameter mm |
Weigh t kg |

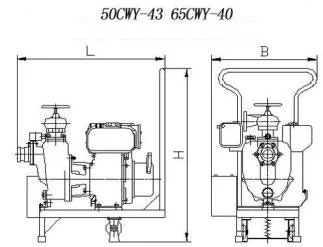

Installation and Contour Dimensions |
||||||
| Type |
power kW |
(Portable) | (Fixed) | ||||||||||||
| L | B | H | L1 | B1 | H1 | ||||||||||
| 50CWY-43 | 25.5 | 43 | 3600 | 6 | ≤150 | 186FA | 6.3 | 50/50 | 110 | 800 | 600 | 916 | 780 | 520 | 700 |
| 50CWY-50 | 25 | 50 | 3600 | 6-7 | ≤150 | 186FA | 6.3 | 65/50 | 105 | 675 | 556 | 680 | |||
| 65CWY-40A | 30 | 37 | 3600 | 6 | ≤150 | 186FA | 6.3 | 65/65 | 110 | 800 | 600 | 910 | 780 | 520 | 700 |
| 80CWF-60 | 50 | 60 | 2950 | 5 | ≤150 | 380C-4 | 22 | 80/80 | 410 | ||||||
50CWY-4365CWY-40
50CWY-43 65CWY-40
