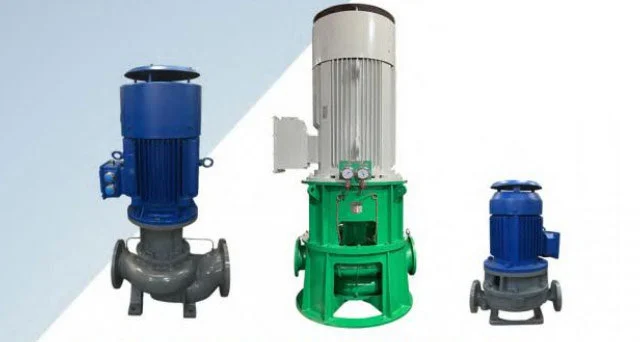

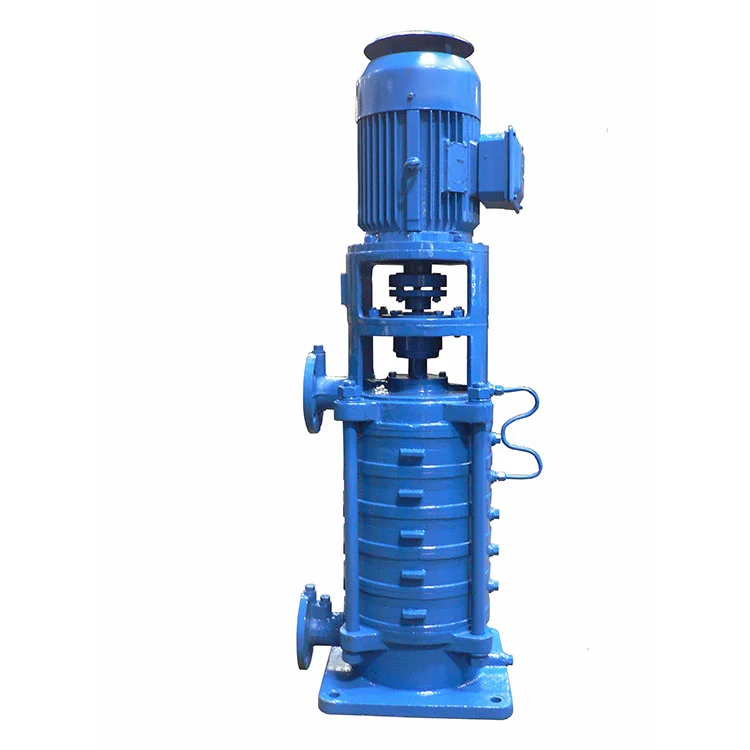

CLH Marine Vertical Centrifugal Pump

As a reliable supplier, Cagon can offer various kinds of marine equipments, including CLH marine vertical centrifugal pump. We have a professional team with many years experience, willing to provide tech-support, high quality products and services for you.

Send Inquiry

Product Description

CLH marine vertical centrifugal pumps are used at cabin bottom to cool water and fight fire. It is able to carry sea water under 80 degrees. Fresh water and other non-eroding liquid.

Main technical parameter:

Parameters in case of power supply frequency of 50Hz 3φ380V

Type	(50Hz 3 φ 380v) main technical parameter					Motor type power Kw		weight Kg
Type	Capacity m3/h	Head m	Speed r/min	NPSHr m	Shaft power kw	Motor type power Kw		weight Kg
15CLH-3Z	0.5	15	2900	3		Y80L1-2H	0.75	33
25CLH-6.5Z	3	8	2900	4	0.16	Y80L1-2H	0.75	35
32CLH-5Z	5	15	2900	4	0.52	Y80L1-2H	0.75	38
40CLH-5Z	10	30	2900	4	1.82	Y90L-2H	2.2	73
40CLH-3.5Z	5	30	2900	4	1.26	Y90S-2H	1.5	65
40CLH-3Z	10	50	2900	2.8	3.24	Y112M-2H	4	110
40CLH-2.5Z	10	65	2900	3	4.66	Y132S1-2H	5.5	136
40CLH-2Z	5	50	2900	2.8	2.28	Y100L-2H	3	104
50CLH-7Z	20	30	2900	3	2.47	Y112M-2H	4	83
50CLH-7AZ	18	25	2900	3	1.92	Y100L-2H	3	72
50CLH-5Z	20	45	2900	4	4.6	Y132S1-2H	5.5	98
50CLH-5AZ	20	35	2900	4	3.6	Y132S1-2H	5.5	98
50CLH-4.5Z	20	50	2900	3	4.54	Y132S1-2H	5.5	98
50CLH-4.5AZ	15	40	2900	3	3.26	Y132S1-2H	5.5	98
50CLH-4	12.5	32	2900	2.8	2	Y100L-2H	3
50CLH-3.5Z	20	65	2950	3.5	8.85	Y160M1-2H	11	145
50CLH-2.5	20	100	2950	2.6		Y160M2-2H	15
65CLH-8.5Z	30	30	2900	3	4.02	Y132S1-2H	5.5	125
65CLH-8.5AZ	25	26	2900	3	2.95	Y112M-2H	4	106
65CLH-8Z	25	10	1450	4	1.05	Y90L-4H	1.5	144
65CLH-5.5Z	30	50	2950	3	6.92	Y160M1-2H	11	171
65CLH-5.5AZ	27	45	2900	3	5.7	Y132S2-2H 7	7.5	140
65CLH-4.5Z	30	65	2950	3	9.48	Y160M1-2H	11	200
65CLH-4.5AZ	27	58	2950	3	7.9	Y160M1-2H	11	141
65CLH-3Z	25	86	2950	4	14.9	Y160L-2H	18.5	265
65CLH-2.5Z	10	30	1450	3	2.8	Y112M-2H	4
80CLH-16Z	50	20	2900	3.5	3.6	Y132S1-2H	5.5	156
80CLH-11Z	50	30	2900	3.5	6.19	Y132S2-2H	7.5	162
80CLH-11AZ	45	26	2900	3.5	4.98	Y132S2-2H	7.5	162
80CLH-8.5	40	35	2900	3.5	5.8	Y132S2-2H	7.5
80CLH-7Z	50	50	2950	3.5	10.47	Y160M2-2H	15	245
80CLH-7AZ	44	45	2950	3.5	8.56	Y160M1-2H	11	230
80CLH-6	50	50	2950	3	10.5	Y160M2-2H	15
80CLH-5.5Z	50	65	2950	3.5	15.25	Y160L-2H	18.5	275
80CLH-5.5AZ	46	57	2950	3.5	12.76	Y160M2-2H	15	250

Type	(50Hz 3 φ 380v) main technical parameter					Motor type power Kw		weight Kg
Type	Capacity m3/h	Head m	Speed r/min	NPSHr m	Shaft power kw	Motor type power Kw		weight Kg
80CLH-5	60	85	2950	4	24.8	Y200L1-2H	30	595
80CLH-5A	50	80	2950	4	19.5	Y180M-2H	22	560
80CLH-4.5Z	50	80	2950	3.5	19.5	Y180M-2H	22	295
80CLH-3	50	125	2950	4		Y200L2-2H	37
100CLH-22Z	95	15	2900	5	5.18	Y132M2-2H	7.5	142
100CLH-19Z	100	20	2950	5	7.27	Y160M1-2H	11	192
100CLH-15Z	100	30	2950	4.8	11.19	Y160M2-2H	15	215
100CLH-15Z	108	30	2950	4.8		Y160M2-2H	15	215
100CLH-15AZ	90	27	2950	4.8	9.32	Y160M1-2H	11	192
100CLH-13Z	70	30	2950	4	8.41	Y160M1-2H	11	195
100CLH-13AZ	63	27	2950	4	6.18	Y160M1-2H	11	194
100CLH-11Z	80	15	1450	2.5	4.36	Y132S-4H	5.5	152
100CLH-10Z	100	50	2950	4.8	18.39	Y180M-2H	22	305
100CLH-10AZ	86	45	2950	5	14.84	Y160L-2H	18.5	240
100CLH-10	100	50	2950	4.8	18.39	Y180M-2H	22	560
100CLH-10A	86	45	2950	5	14.84	Y160L-2H	18.5	540
100CLH-9	100	50	2950	4	18.9	Y180M-2H	22
100CLH-8.5Z	70	45	2950	4	12.89	Y160L-2H	18.5	239
100CLH-6	100	80	2950	4	30.3	Y200L2-2H	37	487
100CLH-6S	100	80	2950	4	29	Y200L2-2H	37
100CLH-6A	93	70	2950	4	24.2	Y200L1-2H	30	457
100CLH-6B	80	62	2950	4	18.5	Y180M-2H	22
100CLH-6BZ	70	60	2950	3.8	15.8	Y180M-2H	22
100CLH-5	100	125	2950	4.5		Y280S-2H	75
125CLH-19	150	30	2950	5	16.34	Y180M-2H	22	308
125CLH-19A	135	26.5	2950	5.5	13.32	Y160L-2H	18.5	280
125CLH-19Z	150	30	2950	5	16.34	Y180M-2H	22	242
125CLH-19AZ	135	26.5	2950	5.5	13.34	Y160L-2H	18.5	222
125CLH-13	200	50	2950	5	34.9	Y225M-2H	45	448
125CLH-13A	185	44	2950	5	28.8	Y200L2-2H	37	378
125CLH-13B	165	34	2950	5	19.9	Y180M-2H	22	313
125CLH-12	160	50	2950	5	28.3	Y200L2-2H	37	378
125CLH-10	150	65	2950	5.5	36.86	Y225M-2H	45	525
125CLH-10A	130	58	2950	5.5	29.32	Y200L2-2H	37	450
125CLH-8	140	86	2950	4	46.7	Y250M-2H	55	650
125CLH-8A	120	80	2950	4	38.5	Y225M-2H	45	580

Type	(50Hz 3 φ 380v) main technical parameter					Motor type power Kw		weight Kg
Type	Capacity m3/h	Head m	Speed r/min	NPSHr m	Shaft power kw	Motor type power Kw		weight Kg
125CLH-6.5	150	110	2950	5.5	62.4	Y280S-2H	75	935
150CLH-26Z	200	20	2950	5.5	14.3	Y160L-2H	18.5	295
150CLH-26AZ	190	17	2950	5.5	11.7	Y160M2-2H	15	270
150CLH-22Z	200	30	2950	6	20.94	Y200L1-2H	30	400
150CLH-18Z	160	14	1480	6.5	7.63	Y160M-4H	11	258
150CLH-13.5	180	50	2950	5	32.67	Y225M-2H	45	448
150CLH-13	200	20	1480	3.5	13.62	Y180M-4H	18.5	450
150CLH-13A	187	17	1480	3.5	11	Y160L-4H	15	422
150CLH-11.5Z	130	50	2950	4.5		Y200L1-2H	30	450
150CLH-11	180	65	2950	6.2	43.63	Y250M-2H	55	738
150CLH-10.5	250	32	1480	4	29.1	Y225S-4H	37	556
150CLH-10	260	86	2950	4	81.7	Y315S-2H	110
150CLH-9	200	32	1480	3.5	22.1	Y200L-4H	30	495
150CLH-9A	180	28	1480	3.5	18.2	Y180L-4H	22	435
150CLH-9B	160	25	1480	3.5	14.7	Y160L-2H	18.5	395
150CLH-7	200	125	2950	5	93	Y315S-2H	110	1380
150CLH-7A	180	115	2950	5	78.5	Y280M-2H	90	950
150CLH-7B	160	105	2950	5	63.5	Y280S-2H	75	935
150CLH-6	160	50	1480	4	29.8	Y225S-4H	37
150CLH-6A	150	45	1480	4	25.2	Y200L-4H	30
200CLH-18	400	20	1480	4.5	27.2	Y225S-4H	37
200CLH-15G	250	25	1780	3.8	21.3	Y200L-4H	30
200CLH-12	300	30	1480	4	30.6	Y225S-4H	37	629
200CLH-12A	280	25	1480	4	24.1	Y200L-4H	30	568
200CLH-9	320	32	1480	4	36.7	Y225M-4H	45	719
250CLH-18	500	30	1480	4.5	51.1	Y280S-4H	75
250CLH-18A	500	24	1480	4.5	40.9	Y225M-4H	45
250CLH-18B	450	20	1480	4.5	33.6	Y225S-4H	37	754
300CLH-8	700	100	1480				355
2/65CLH-6	36	90	2950	3	15.8	Y160L-2H	18.5	317
3/65CLH-6	36	135	2950	3	23.8	Y200L1-2H		372
4/65CLH-6	36	180	2950		31.8	Y200L2-2H	37	420
2/40CLH-3	20	70	2950	3.5	10.05	Y160M2-2H	15
2/50CLH-2.5	35	140	2950	4	26.15	Y200L1-2H	30
2/65CLH-3.5	50	120	2950	4.5	27.68	Y200L2-2H	37
2/40CLH-2Z	6	110	2900	3.5	5.14	Y132S2-2H	7.5	170
2/40CLH-4.5	8	20	1450	3	1.08	Y90L-4H	1.5	120

Type	(50Hz 3 φ 380v) main technical parameter					Motor type power Kw		weight Kg
Type	Capacity m3/h	Head m	Speed r/min	NPSHr m	Shaft power kw	Motor type power Kw		weight Kg
3/40CLH-4.5	8	30	1450	3	1.61	Y100L1-4H	2.2	154
4/40CLH-4.5	8	40	1450	3	2.15	Y112M-4H	4	190
5/40CLH-4.5	8	50	1450	3	2.69	Y112M-4H	4	215
6/40CLH-4.5	8	60	1450	3	3.22	Y132S-4H	5.5	271
7/40CLH-4.5	8	70	1450	3	3.76	Y132S-4H	5.5	296
8/40CLH-4.5	8	80	1450	3	4.3	Y132M-4H	7.5	341
9/40CLH-4.5	8	90	1450	3	4.84	Y132M-4H	7.5	366

Parameters in case of power supply frequency of 60Hz 3 φ 440v

Type	(60Hz 3 φ 440v) main technical parameter					Motor type power Kw		weight Kg
Type	Capacity m3/h	Head m	Speed r/min	NPSHr m	Shaft power Kw	Motor type power Kw		weight Kg
25CLH-6.5ZG	3.6	11.5	3500	4	0.27	Y80L1-2H	0.75
32CLH-5ZG	6	21.6	3500	5.6	0.89	Y80L2-2H	1.1
40CLH-5ZG	12	42	3500	5	3.05	Y112M-2H	4
40CLH-3.5ZG	6	45	3500	5	2.26	Y100L-2H	3
40CLH-3ZG	12	72	3500	4	5.88	Y132S2-2H	7.5
40CLH-2.5ZG	12	93	3550	4	7.6	Y160M1-2H	11
40CLH-2ZG	6	72	3500	4	3.36	Y112M-2H	4
50CLH-5ZG	24	64.8	3500	5.6	8.1	Y160M1-2H	11
50CLH-5AZG	24	50	3500	5.6	6.33	Y132S2-2H	7.5
50CLH-7ZG	24	42	3500	4.2	4.65	Y132S1-2H	5.5
50CLH-7AZG	21	36	3500	4.2	3.22	Y112M-2H	4
50CLH-4.5ZG	24	72	3550	4.1	8.55	Y160M1-2H	11
50CLH-4.5AZG	18	57.6	3550	5.2	5.6	Y160M1-2H	11
50CLH-3.5ZG	24	93	3550	3.8	15.2	Y160L-2H	18.5
65CLH-8.5ZG	36	42	3500	4.3	6.43	Y132S2-2H	7.5
65CLH-8.5AZG	30	37	3500	4.5	4.88	Y132S1-2H	5.5
65CLH-8ZG	30	14.4	1750	5.6	1.8	Y100L2-4H	3
65CLH-5.5ZG	36	72	3550	4.9	12.2	Y160M2-2H	15
65CLH-5.5AZG	32	64	3550	4.9	9.62	Y160M1-2H	11
65CLH-4.5ZG	36	93	3550	4.2	16.9	Y180M-2H	22
65CLH-4.5AZG	32	82	3550	4.2	13.2	Y160M2-2H	15
65CLH-3G	30	123	3580	5.5	25.7	Y200L1-2H	30
65CLH-2.5ZG	12	42	1750	5.1	5	Y132M-4H	7.5
80CLH-16ZG	60	28	3500	4.5	6.1	Y132S2-2H	7.5

Type	(60Hz 3 φ 440v) main technical parameter					Motor type power Kw		weight Kg
Type	Capacity m3/h	Head m	Speed r/min	NPSHr m	Shaft power Kw	Motor type power Kw		weight Kg
80CLH-11ZG	60	42	3550	5	10.1	Y160M2-2H	15
80CLH-11AZG	54	37	3550	5	8.12	Y160M1-2H	11
80CLH-7ZG	60	72	3550	5.6	18.1	Y180M-2H	22
80CLH-7AZG	52	64	3550	5.6	14.4	Y160L-2H	18.5
80CLH-5.5G	60	93	3580	4.8	25.3	Y200L1-2H	30
80CLH-5.5AG	55	82	3580	4.8	21.2	Y200L1-2H	30
80CLH-5G	72	122	3580	4.8	42.7	Y250M-2H	55
80CLH-5AG	60	115	3580	4.8	33.6	Y225M-2H	45
80CLH-4.5G	60	115	3580	4.8	33.6	Y200L2-2H	37
100CLH-22ZG	110	22	3550	6.5	9.03	Y160M1-2H	11
100CLH-19ZG	120	28	3550	6.5	12.2	Y160M2-2H	15
100CLH-15G	120	42	3550	5.7	19.3	Y180M-2H	22
100CLH-15AG	108	38	3550	5.7	15.7	Y160L-2H	18.5
100CLH-13G	84	42	3550	5.7	13.9	Y160L-2H	18.5
100CLH-13AG	75	38	3550	5.7	11.6	Y160M2-2H	15
100CLH-11G	95	21	1780	4	7.4	Y160M-4H	11
100CLH-10G	120	72	3580	6.5	33.6	Y200L2-2H	37
100CLH-10AG	103	64	3580	6.5	26	Y200L1-2H	30
100CLH-8.5G	84	64	3580	4.2	22.5	Y200L1-2H	30
100CLH-6G	115	108	3580	5.8	47.0	Y250M-2H	55
100CLH-6AG	111	100	3580	5.6	41.8	Y250M-2H	55
100CLH-6BG	96	89	3580	5.5	32.8	Y200L2-2H	37
125CLH-19G	180	42	3580	7	28.2	Y200L2-2H	37
125CLH-19AG	160	38	3580	7	22.7	Y200L1-2H	30
125CLH-13G	240	72	3580	7	60.3	Y280S-2H	75
125CLH-13AG	220	63	3580	7	49	Y250M-2H	55
125CLH-13BG	195	48	3580	7	25.5	Y200L1-2H	30
125CLH-12G	190	72	3580	7	48.4	Y250M-2H	55
125CLH-10G	180	93	3580	7	63.3	Y280S-2H	75
125CLH-10AG	155	82	3580	7	49.4	Y250M-2H	55
125CLH-8G	165	123	3580	6.5	79	Y280M-2H	90
125CLH-13G	240	72	3580	7	60.3	Y280S-2H	75
125CLH-13AG	220	63	3580	7	49	Y250M-2H	55
125CLH-13BG	195	48	3580	7	25.5	Y200L1-2H	30
125CLH-12G	190	72	3580	7	48.4	Y250M-2H	55
125CLH-10G	180	93	3580	7	63.3	Y280S-2H	75
125CLH-10AG	155	82	3580	7	49.4	Y250M-2H	55
125CLH-8G	165	123	3580	6.5	79	Y280M-2H	90

Type	(60Hz 3 φ 440v) main technical parameter					Motor type power Kw		weight Kg
Type	Capacity m3/h	Head m	Speed r/min	NPSHr m	Shaft power Kw	Motor type power Kw		weight Kg
125CLH-6.5G	180	158	3580	6.5	107.8	Y315M-2H	132
150CLH-26G	240	28	3580	6.5	24.1	Y200L1-2H	30
150CLH-26AG	225	24	3550	6.5	19.6	Y180M-2H	22
150CLH-22G	240	42	3580	7.2	35.2	Y225M-2H	45
150CLH-18ZG	190	20	1780	7.5	12.9	Y160L-4H	15
150CLH-13.5G	215	72	3580	6.5	56.2	Y280S-2H	75
150CLH-13G	240	28	1780	4.5	22.88	Y200L-4H	30
150CLH-13AG	224	25	1780	4.5	19.3	Y180L-4H	22
150CLH-11G	215	93	3580	8.5	74.6	Y280M-2H	90
150CLH-10.5 G	300	45	1780	6	49.1	Y250M-4H	55
150CLH-10G	310	123	3580	6	135.1	Y315L1-2H	160
150CLH-9G	240	46	1780	4	38.1	Y225M-4H	45
150CLH-9AG	216	40	1780	4	31.4	Y225S-4H	37
150CLH-7	240	180	3580	6	165	Y315L2-2H	200
150CLH-7A	216	165	3580	6	138	Y315L1-2H	160
150CLH-7B	192	151	3580	6	110	Y315M-2H	132
150CLH-6G	190	72	1780	6	51	Y280S-4H	75
150CLH-6AG	180	64	1780	6	43	Y250M-4H	55
200CLH-9G	384	46	1780	5.5	63.3	Y280S-4H	75
200CLH-12G	360	42	1780	5.5	51.5	Y280S-4H	75
200CLH-12AG	335	36	1780	5.5	41.6	Y250M-4H	55
200CLH-18G	482	29	1780	5.5	47.58	Y250M-4H	55
250CLH-18G	600	43	1780	5.5	87.8	Y315S-4H	110
250CLH-18AG	600	35	1780	5.5	71.5	Y280M-4H	90
250CLH-18BG	540	28	1780	5.5	56.4	Y280S-4H	75
300CLH-8G	900	140	1780				500
2/40CLH-2G	7	158	3550	4.2	8.9	Y160M2-2H	15
2/40CLH-3G	24	100	3550	4.2	17.2	Y180M-2H	22
2/50CLH-2.5G	42	200	3580	4.2	44.9	Y250M-2H	55
2/65CLH-3.5G	60	172	3580	5	47.6	Y250M-2H	55
2/40CLH-4.5G	9.6	28.5	1750	4	1.87	Y100L1-4H	2.2
3/40CLH-4.5G	9.6	43	1750	4	2.78	Y100L2-4H	3
4/40CLH-4.5G	9.6	57.5	1750	4	3.72	Y132S-4H	5.5
5/40CLH-4.5G	9.6	72	1750	4	4.65	Y132S-4H	5.5
6/40CLH-4.5G	9.6	86	1750	4	5.56	Y132M-4H	7.5
7/40CLH-4.5G	9.6	100	1750	4	6.5	Y132M-4H	7.5
2/65CLH-6	43.2	129	3580	4	27.3	Y200L-2H	37
