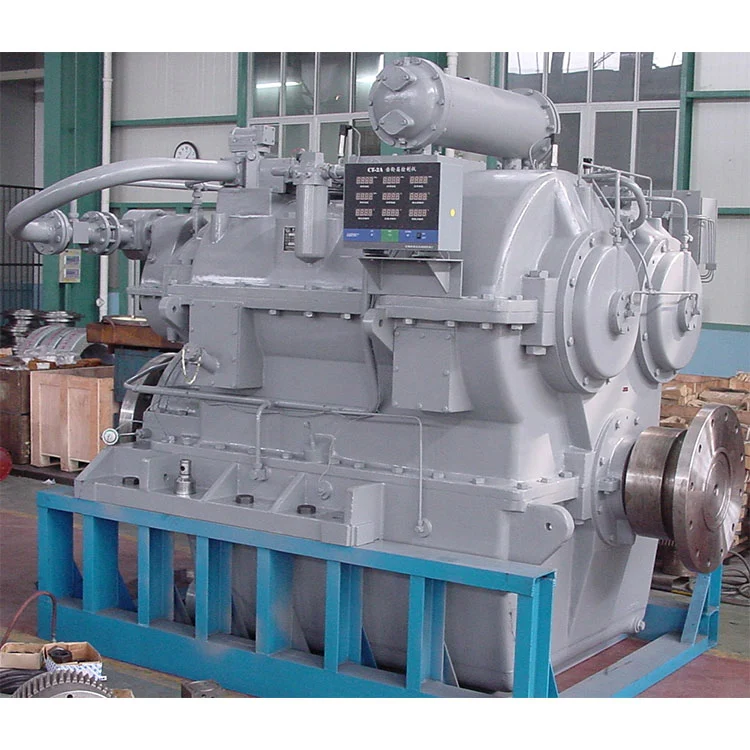

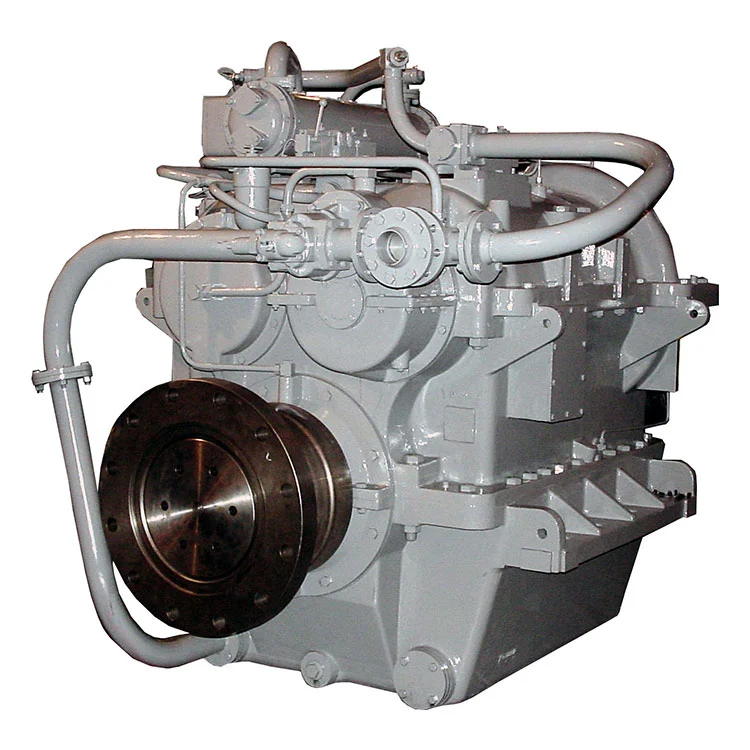

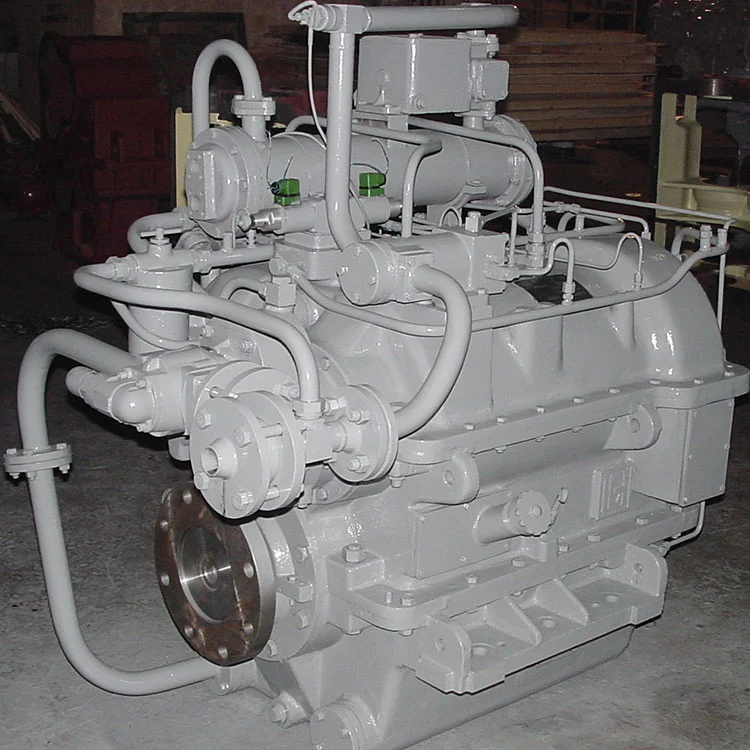

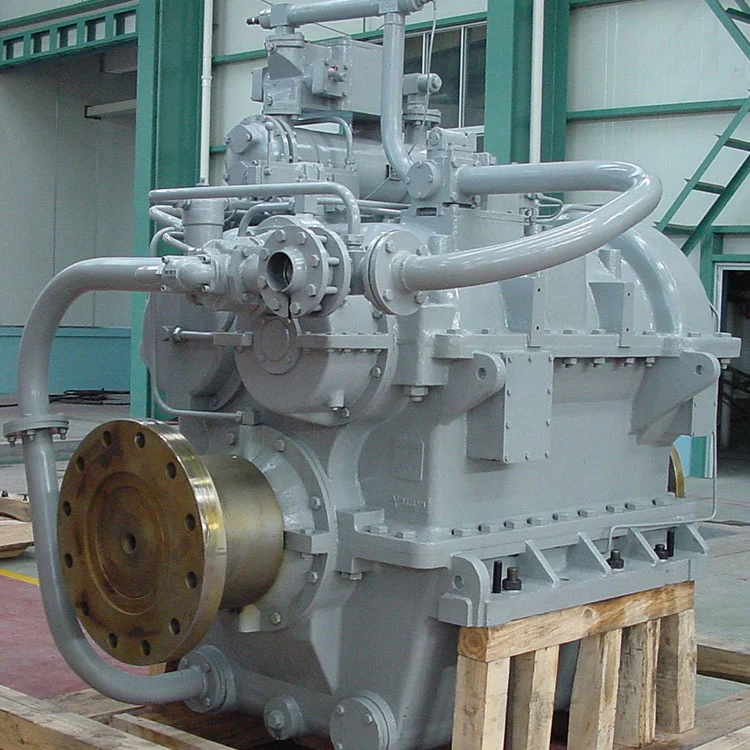

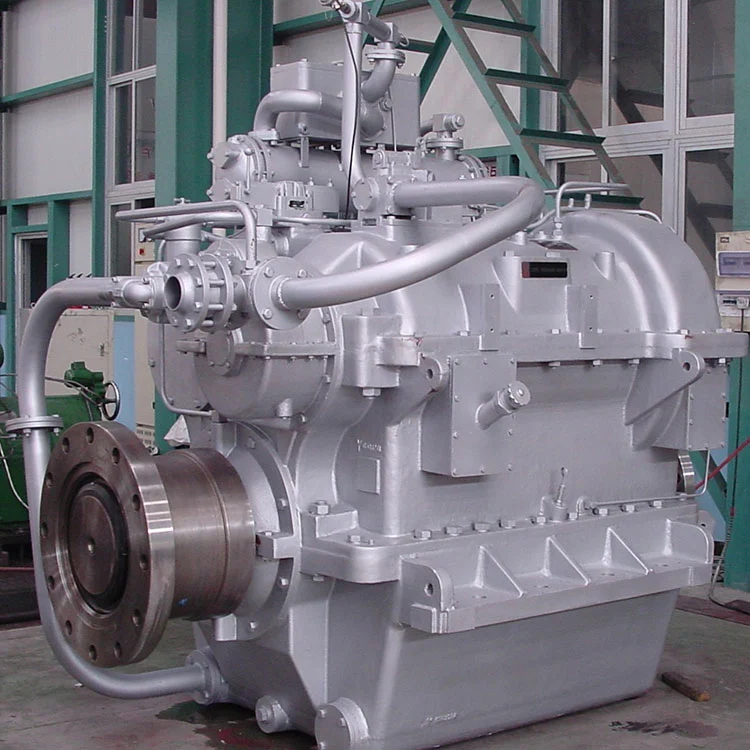

The Advance GW marine gearbox is mainly used in large bulk carriers, ocean-going fishing vessels, oil tankers, warships and the like. Its transmission capacity ranges from 0.29 kW/r/min to 35.429 kW/r/min. This series of products have reliable performance and are convenient to operate, and they are the best partners for medium-speed diesel engines
| Advance GW marine gearbox | ||
| Trans.capacity | Naming Method | Model type |
|
0.257~8.111 Kw/r·min-1 |
Center Distance between Main Transmission and Clutch |
GWC28.30、GWL28.30、GWS28.30、GWK28.30、 GWH28.30、GWD28.30~GWC70.76、GWL70.76、GWS70.76、GWK70.76、GWH70.76、GWD70.76 |
SGW - Double speed. Single speed is the default setting.
GWC - With two-stage speed reduction and reversing function. GE
GWL - Without reversing function. Only two-stage speed reduction is available. The input and output are at the same center and have the same rotation direction.
GWD - Only with the final stage of speed reduction and reversing function. The input and output are angularly off-centered and have opposite rotation directions.
GWK - Without reversing function. The input and output are vertically off-centered and have opposite rotation directions.
GWS - Only with the final stage of speed reduction and reversing function. The input and output are vertically off-centered and have opposite rotation directions.
GWH - Only with the final stage of speed reduction and reversing function. The input and output are horizontally off-centered and have opposite rotation directions.
| Model | GWS30.32A |
| Input speed (r/min) | 400-1800 |
| Transmission capacity (kW/r/min) | 0.537 |
| Note: Input speed and transmission capacity are related to the gearbox reduction ratio. Please consult the manufacturer for details. | |
