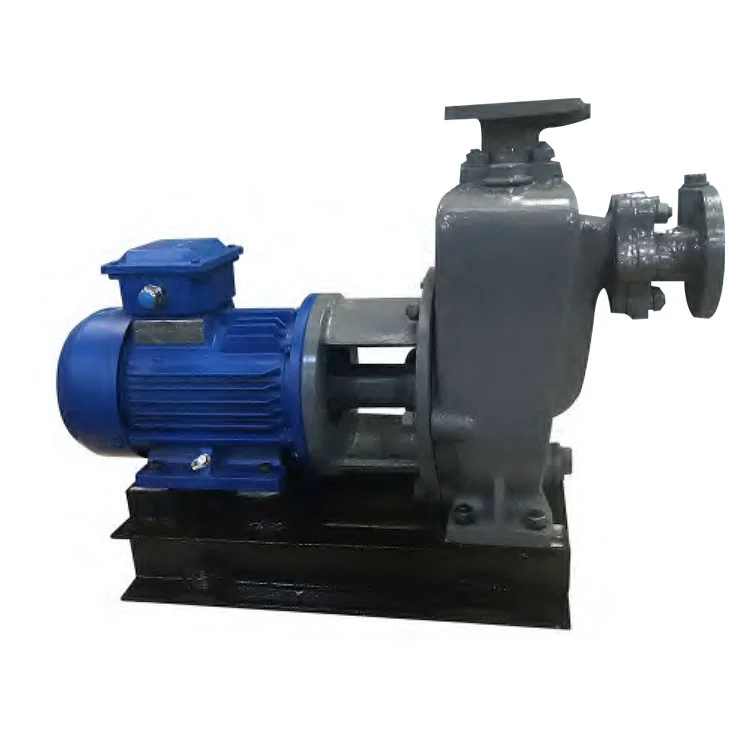

Widely applied in light industry, paper - making, textile, food, chemicals, power industry, mining, boats, urban sewage drainage, and aquatic culture, the CWFZ type marine self-suction horizontal crushing pump is currently the most ideal pump in China for transporting media with solid particles, fibers, pulps, and mixed suspensions.
performance and parameter table for the power supply frequency of 50Hz 3 φ 380V:
| Type | (50Hz 3 φ 380V) main technical parameter | Motor type power Kw |
Weight Kg |
|||||
|
Capacity m3/h |
Head m |
Speed r/min |
NpSHr m |
Shaft power kW |
||||
| 0.5CWFZ-20 | 5 | 20 | 2900 | 4 | Y90L-2H | 2.2 | ||
| 0.5CWFZ-25 | 5 | 25 | 2900 | 4 | Y90L-2H | 2.2 | ||
| 0.5CWFZ-30 | 5 | 30 | 2900 | 4 | Y112M-2H | 4 | ||
| 1CWFZ-20 | 10 | 20 | 2900 | 4.5 | Y90L-2H | 2.2 | ||
| 1CWFZ-25 | 10 | 25 | 2900 | 4.5 | Y112M-2H | 4 | ||
| 1CWFZ-30 | 10 | 30 | 2900 | 4.5 | Y112M-2H | 4 | ||
| 1CWFZ-35 | 10 | 35 | 2900 | 4.5 | Y132S1-2H | 5.5 | ||
| 1CWFZ-40 | 10 | 40 | 2900 | 4.5 | Y132S1-2H | 5.5 | ||
| 1CWFZ-50 | 10 | 50 | 2900 | 4.5 | Y132S2-2H | 7.5 | ||
| 1.5CWFZ-30 | 15 | 30 | 2900 | 5 | Y132S1-2H | 5.5 | ||
| 1.5CWFZ-35 | 15 | 35 | 2900 | 5 | Y132S1-2H | 5.5 | ||
| 2CWFZ-35 | 20 | 35 | 2900 | 5 | Y132S2-2H | 7.5 | ||
| 2CWFZ-40 | 20 | 40 | 2900 | 5 | Y132S2-2H | 7.5 | ||
| 5CWFZ-30 | 50 | 30 | 2950 | 4.5 | Y160M1-2H | 11 | ||
| 5CWFZ-40 | 50 | 40 | 2950 | 4.5 | Y180M-2H | 22 | ||
performance and parameter table for the power supply frequency of 60Hz 3 φ 440V:
| Type | (60Hz 3 φ 440V) | Kw | Kg | |||||
| m3/h |
Head m |
r/min | m | kW | ||||
| 0.5CWFZ1-20 | 6 | 28 | 3500 | 4.5 | Y112M-2H | 4 | ||
| 0.5CWFZ1-25 | 6 | 36 | 3500 | 4.5 | Y112M-2H | 4 | ||
| 0.5CWFZ1-30 | 6 | 43 | 3500 | 4.5 | Y112M-2H | 4 | ||
| 1CWFZ1-20 | 12 | 28.5 | 3500 | 5 | Y132S1-2H | 5.5 | ||
| 1CWFZ1-25 | 12 | 35.5 | 3500 | 5 | Y132S2-2H | 7.5 | ||
| 1CWFZ1-30 | 12 | 43 | 3500 | 5 | Y132S2-2H | 7.5 | ||
| 1CWFZ1-35 | 12 | 51 | 3550 | 5 | Y160M1-2H | 11 | ||
| 1CWFZ1-40 | 12 | 59 | 3550 | 5 | Y160M1-2H | 11 | ||
| 1CWFZ1-50 | 12 | 73 | 3550 | 5 | Y160M2-2H | 15 | ||
| 1.5CWFZ1-30 | 18 | 44 | 3550 | 5.5 | Y160M1-2H | 11 | ||
| 1.5CWFZ1-35 | 18 | 51 | 3550 | 5.5 | Y160M1-2H | 11 | ||
| 2CWFZ1-35 | 24.5 | 51 | 3550 | 5.5 | Y160M1-2H | 11 | ||
| 2CWFZ1-40 | 24.5 | 58 | 3550 | 5.5 | Y160M2-2H | 15 | ||
| 5CWFZ1-30 | 60 | 42 | 3550 | 5 | Y160L-2H | 18.5 | ||
| 5CWFZ1-40 | 60 | 57 | 3580 | 6 | Y200L2-2H | 37 | ||
