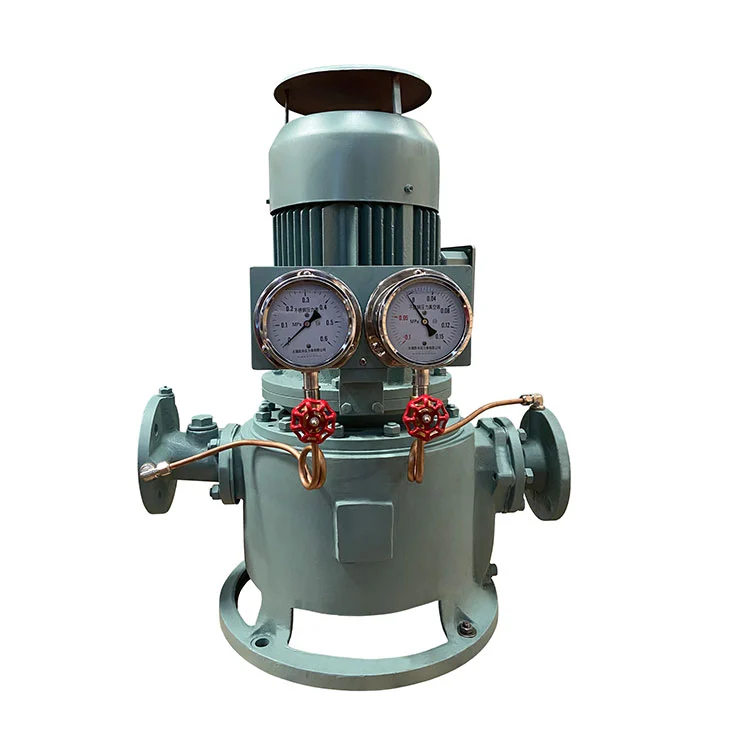

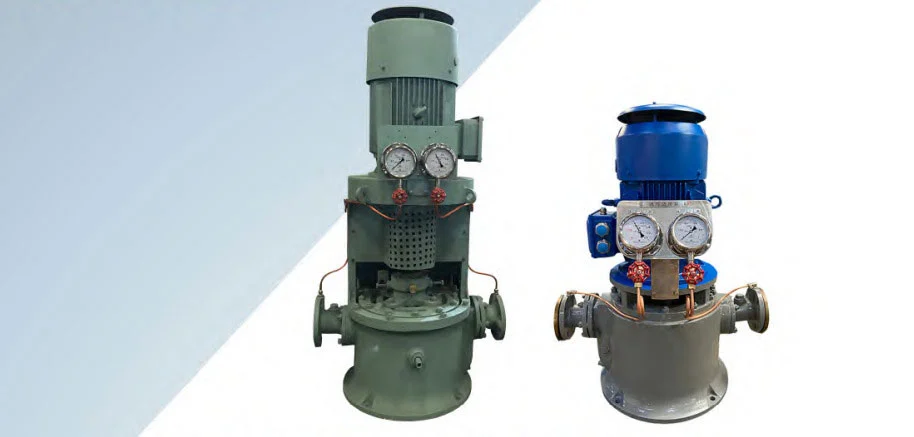

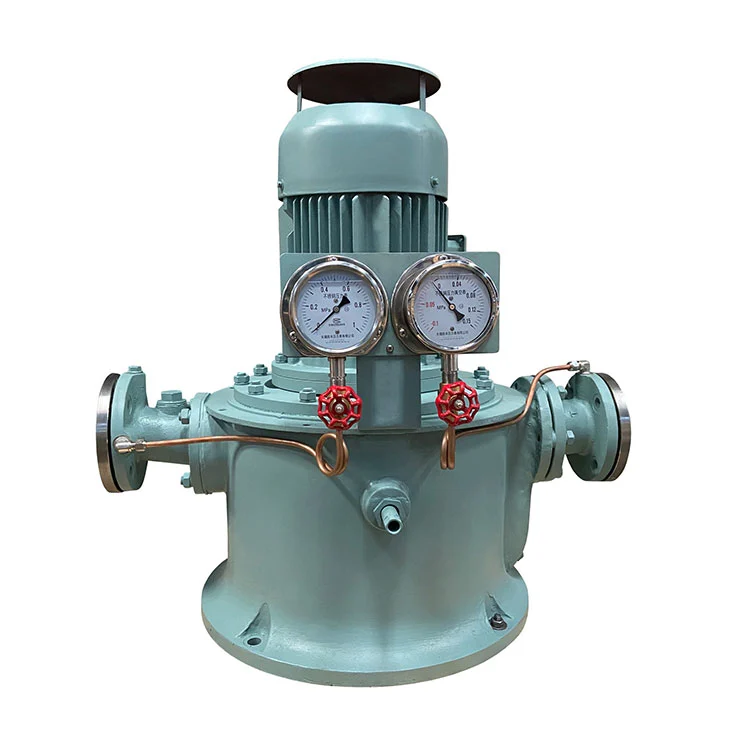

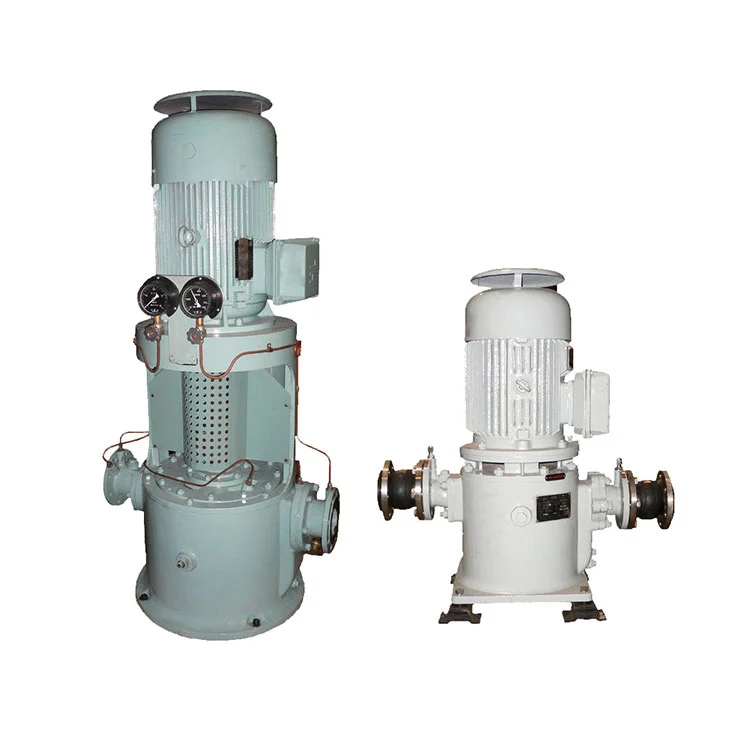

CLZ Marine Vertical Self-Priming Centrifugal Pump

If you are trying to find a suitable supplier of marine pump, then you can choose Cagon. Our CLZ marine vertical self-priming centrifugal pump is a durable and high quality choice for you, also has good cost performance, get our price list and ask for more technique detail about the products now.

Send Inquiry

Product Description

CLZ marine vertical self-priming centrifugal pumps are used at cabin bottom to cool water and fight fire. It is able to carry sea water under 70 degrees. Fresh water and other non-eroding liquid.

Main technical parameter:

Parameters in case of power supply frequency of 50Hz 3 φ 380v

Type	(50Hz 3 φ 380v) main technical parameter					Motor type power Kw		weight Kg
Type	Capacity m3/h	Head m	Speed r/min	NPSHr m	Shaft power kw	Motor type power Kw		weight Kg
40CLZ-2	5	60	2900	3.5	3.9	Y132S1-2H	5.5	170
40CLZ-2A	4	54	2900	3.5	3.2	Y132S1-2H	5.5	170
40CLZ-4Z	5	32	2900	3.5	1.6	Y90L-2H	2.2	130
40CLZ-4AZ	5	22	2900	3.5	1.2	Y90S-2H	1.5	123
40CLZ-4ZS	5	32	2900	3.2	1.6	Y90L-2H	2.2
40CLZ-4AZS	5	22	2900	3.2	1.2	Y90S-2H	1.5
50CLZ-3	10	40	2900	3.2	3.4	Y112M-2H	4
50CLZ-4Z	20	50	2900	3.2	6.1	Y132S2-2H	7.5	175
50CLZ-4AZ	17	46	2900	3.2	5.0	Y132S2-2H	7.5	175
50CLZ-4.5Z	12.5	32	2900	3.2	2.5	Y112M-2H	4	153
50CLZ-4.5AZ	10	28	2900	3.2	1.8	Y100L-2H	3	144
50CLZ-6	20	32	2900	3.2	3.2	Y112M-2H	4	162
50CLZ-6S	20	32	2900	3.2	3.2	Y112M-2H	4	162
50CLZ-6A	17	28	2900	3.2	2.5	Y112M-2H	4	162
50CLZ-6AS	17	28	2900	3.2	2.5	Y112M-2H	4	162
50CLZ-7Z	12.5	20	2900	3.5	1.7	Y100L-2H	3	144
50CLZ-7AZ	10	17	2900	3.5	1.2	Y90L-2H	2.2	135
50CLZ-9Z	25	14.5	2900	3.5	1.7	Y100L-2H	3	144
65CLZ-3	25	85	2950	4	16	Y180M-2H	22
65CLZ-4	35	70	2950	3.2	13.9	Y160L-2H	18.5	438
65CLZ-4A	32	65	2950	3.2	12.1	Y160M2-2H	15	413
65CLZ-4B	20	60	2950	3.5	9.2	Y160M1-2H	11	398
65CLZ-5.5	35	50	2950	3.2	9.5	Y160M2-2H	15	413
65CLZ-5.5Z	35	50	2950	3.2	9.5	Y160M2-2H	15	293
65CLZ-5.5A	30	48	2950	3.2	8.2	Y160M1-2H	11	408
65CLZ-5.5AZ	30	48	2950	3.2	8.2	Y160M1-2H	11	288
65CLZ-5.5BZ	25	45	2900	3.2	6.4	Y132S2-2H	7.5	258
65CLZ-6	25	32	2900	3.2	4.2	Y132S1-2H	5.5	240
65CLZ-6S								190
65CLZ-6ZS								176
65CLZ-6A	21	28	2900	3.2	3.1	Y112M-2H	4	212
65CLZ-6AS								164
65CLZ-6AZS								150
65CLZ-8	35	32	2900	3.2	5.6	Y132S2-2H	7.5	265

Type	(50Hz 3 φ 380v) main technical parameter					Motor type power Kw		weight Kg
Type	Capacity m3/h	Head m	Speed r/min	NPSHr m	Shaft power kw	Motor type power Kw		weight Kg
65CLZ-8A	32	28	2900	3.2	4.5	Y132S1-2H	5.5	260
65CLZ-9Z	25	20	2900	3.5	2.3	Y100L-2H	3	144
65CLZ-9AZ	21	17	2900	3.5	1.6	Y90L-2H	2.2	135
80CLZ-3	50	120	2950	3.5	35.5	Y225M-2H	45	668
80CLZ-3A	45	110	2950	3.5	29.3	Y200L2-2H	37	583
80CLZ-4	50	80	2950	3.5	21.8	Y200L1-2H	30	485
80CLZ-4A	50	70	2950	3.5	19.5	Y180M-2H	22	450
80CLZ-4B	45	62	2950	3.5	16.2	Y160L-2H	18.5	420
80CLZ-6	50	50	2950	3.5	11.7	Y160M2-2H	15	372
80CLZ-6A	45	48	2950	3.5	10.3	Y160M2-2H	15	372
80CLZ-6B	40	42	2950	3.8	8.5	Y160M1-2H	11	346
80CLZ-6BS	40	42	2950	3.8	8.5	Y160M1-2H	11
80CLZ-9	50	32	2950	3.5	7.2	Y160M1-2H	11	345
80CLZ-9A	45	28	2900	3.5	5.6	Y132S2-2H	300	300
80CLZ-9B	54	21	2900	3.5	5.1	Y132S2-2H	7.5	327
80CLZ-9Z	50	32	2950	3.5	7.9	Y160M1-2H	11
80CLZ-9AZ	45	28	2900	3.5	6.2	Y132S2-2H	7.5
80CLZ-9BZ	54	21	2900	3.5	5.6	Y132S2-2H	7.5
80CLZ-9ZS	50	32	2950	3.5	7.9	Y160M1-2H	11
80CLZ-9AZS	45	28	2900	3.5	6.2	Y132S2-2H	7.5
80CLZ-9BZS	54	21	2900	3.5	5.6	Y132S2-2H	7.5
80CLZ-13	45	21	2900	4.5	4.6	Y132S1-2H	5.5	195
80CLZ-13Z	45	21	2900	4.5	4.6	Y132S1-2H	5.5
80CLZ-14S	60	20	2900	4.0	5.8	Y132S2-2H	7.5	316
100CLZ-5	100	120	2950	4.5	62.8	Y280S-2H	75	880
100CLZ-5A	95	110	2950	4.5	55.8	Y280S-2H	75	880
100CLZ-5B	80	100	2950	4.5	43.6	Y250M-2H	55	738
100CLZ-5C	75	95	2950	4.5	39.6	Y225M-2H	45	668
100CLZ-6	80	80	2950	4.0	34.2	Y200L2-2H	37	591
100CLZ-6A	72	75	2950	4.5	29.4	Y200L2-2H	37	591
100CLZ-6B	75	62	2950	4.5	26.4	Y200L1-2H	30	561
100CLZ-6.5	100	80	2950	4.5	39.6	Y225M-2H	45	668
100CLZ-6.5A	95	75	2950	4.5	35.9	Y225M-2H	45	668
100CLZ-8	80	50	2950	4.0	18.8	Y180M-2H	22	470
100CLZ-8A	72	46	2950	4.0	15.8	Y160L-2H	18.5	445
100CLZ-9	100	50	2950	4.5	22.0	Y200L1-2H	30	510

Type	(50Hz 3 φ 380v) main technical parameter					Motor type power Kw		weight Kg
Type	Capacity m3/h	Head m	Speed r/min	NPSHr m	Shaft power kw	Motor type power Kw		weight Kg
100CLZ-9A	95	46	2950	4.5	19.5	Y180M-2H	22	470
100CLZ-12	80	32	2950	4.0	11.6	Y160M2-2H	15	420
100CLZ-12A	72	28	2950	4.0	9.3	Y160M1-2H	11	405
100CLZ-13	100	32	2950	4.8	13.8	Y160L-2H	18.5	445
100CLZ-13A	95	28	2950	4.8	11.7	Y160M2-2H	15	420
100CLZ-17	80	20	2950	4.0	7.3	Y160M1-2H	11	405
100CLZ-18.5	100	20	2950	4.8	9.1	Y160M1-2H	11	405
100CLZ-18.5A	95	18	2950	4.8	8.0	Y160M1-2H	11	405
125CLZ-6	160	120	2950	5.2	95.1	Y315S-2H	110
125CLZ-6A	150	110	2950	5.2	83.2	Y315S-2H	110
125CLZ-6B	140	110	2950	5.2	77.1	Y280M-2H	90
125CLZ-8	160	80	2950	5.2	60.1	Y280S-2H	75
125CLZ-8A	150	75	2950	5.2	52.8	Y280S-2H	75
125CLZ-8B	140	68	2950	5.2	48.7	Y250M-2H	55	742
125CLZ-8/2	70/112	70/25	1480	4.1		Y180M-4H	45
125CLZ-9/2	116/58	24/61	1480	4.1		Y180M-2H	22
125CLZ-12	160	50	2950	5.2	35.1	Y225M-2H	45	672
125CLZ-12A	150	46	2950	5.2	30.8	Y200L2-2H	37	587
125CLZ-16.5	160	32	2950	5.2	22.1	Y200L1-2H	30	557
125CLZ-16.5A	150	28	2950	5.2	18.4	Y180M-2H	22	522
125CLZ-23.5	160	20	2950	5.2	15.2	Y160L-2H	18.5	502
125CLZ-23.5A	150	18	2950	5.2	12.9	Y160M2-2H	15	477
150CLZ-12/2	224/70	25/70	1480	4.1		Y250M-2H	55
150CLZ-14	250	50	2950	6.0	53.2	Y280S-2H	75	913
150CLZ-14A	240	46	2950	6.0	47.7	Y250M-2H	55	778
150CLZ-17.5	188	33	2950	6.5	26.8	Y200L1-2H	30	593
150CLZ-21	250	32	2950	6.0	33.5	Y225M-2H	45	730
150CLZ-21A	240	28	2950	6.0	28.2	Y200L2-2H	37	645
200CLZ-12	300	30	1480	5.5	40.9	Y225M-4H	45	808
200CLZ-12A	280	25	1480	5.5	32.9	Y225S-4H	37	774
200CLZ-24.5	450	15	1480	6.0	34.0	Y225S-4H	37	774

Performance and parameter table for the power supply frequency of 60Hz 3 φ 440v (continued):

Type	(60Hz 3 φ 440v) main technical parameter					Motor type power Kw		weight Kg
Type	Capacity m3/h	Head m	Speed r/min	NPSHr m	Shaft power Kw	Motor type power Kw		weight Kg
40CLZ1-2	6	85	3550	4	6.6	Y160M1-2H	11
40CLZ1-2A	5	78	3500	4	5.5	Y132S2-2H	7.5
40CLZ1-4Z	6	46	3500	4	2.8	Y112M-2H	4
40CLZ1-4AZ	6	32	3500	4	2.1	Y100L-2H	3
50CLZ1-4Z	24	72	3550	4	10.5	Y160M2-2H	15
50CLZ1-4AZ	20	65	3550	4	8.2	Y160M1-2H	11
50CLZ1-4.5Z	15	45	3500	4	4.3	Y132S1-2H	5.5
50CLZ1-4.5AZ	12	40	3500	4	3.1	Y112M-2H	4
50CLZ1-6	24	45	3500	4	5.5	Y132S2-2H	7.5
50CLZ1-6S	24	45	3500	4	5.5	Y132S2-2H	7.5
50CLZ1-6A	20	40	3500	4	4.2	Y132S1-2H	5.5
50CLZ1-6AS	20	40	3500	4	4.2	Y132S1-2H	5.5
50CLZ1-7Z	15	29	3500	4	3.0	Y112M-2H	4
50CLZ1-7AZ	12	25	3500	4	2.1	Y100L-2H	3
50CLZ1-9Z	30	21	3500	4	2.9	Y112M-2H	4
65CLZ1-4	42	100	3580	4	23.9	Y200L1-2H	30
65CLZ1-4A	38	93	3580	4	20.5	Y200L1-2H	30
65CLZ1-4B	24	86	3550	4	15.6	Y180M-2H	22
65CLZ1-5.5	42	72	3550	4	16.5	Y180M-2H	22
65CLZ1-5.5A	36	69	3550	4	14.1	Y160L-2H	18.5
65CLZ1-5.5BZ	30	64.8	3550	4.5	11.1	Y160M2-2H	15
65CLZ1-6	30	45	3550	4	7.1	Y160M1-2H	11
65CLZ1-6S
65CLZ1-6ZS
65CLZ1-6A	25	40	3500	4	5.3	Y132S2-2H	7.5
65CLZ1-6AS
65CLZ1-6AZS
65CLZ1-8	42	45	3550	4	9.4	Y160M2-2H	15
65CLZ1-8A	38	40	3550	4	7.7	Y160M1-2H	11
65CLZ1-9Z	30	29	3500	4.2	4.0	Y132S1-2H	5.5
65CLZ1-9AZ	25	25	3500	4.2	3.0	Y112M-2H	4
80CLZ1-4	60	115	3580	4.2	37.6	Y225M-2H	45
80CLZ1-4A	60	100	3580	4.2	33.4	Y200L2-2H	37
80CLZ1-4B	54	89	3580	4.2	27.9	Y200L2-2H	37
80CLZ1-6	60	72	3580	4.2	20.3	Y200L1-2H	30

Type	(60Hz 3 φ 440v) main technical parameter					Motor type power Kw		weight Kg
Type	Capacity m3/h	Head m	Speed r/min	NPSHr m	Shaft power Kw	Motor type power Kw		weight Kg
80CLZ1-6A	54	69	3550	4.2	17.8	Y180M-2H	22
80CLZ1-6B	48	60	3550	4.5	14.5	Y160L-2H	18.5
80CLZ1-9	60	45	3550	4.2	11.9	Y160M2-2H	15
80CLZ1-9A	54	40	3550	4.2	9.6	Y160M2-2H	15
80CLZ1-9B	65	30	3550	4.2	8.9	Y160M1-2H	11
80CLZ1-9Z	60	45	3550	4.2	13.6	Y160L-2H	18.5
80CLZ1-9AZ	54	40	3550	4.2	10.7	Y160M2-2H	15
80CLZ1-9BZ	65	30	3550	4.2	9.7	Y160M2-2H	15
80CLZ1-9ZS	60	45	3550	4.2	13.6	Y160L-2H	18.5
80CLZ1-9AZS	54	40	3550	4.2	10.7	Y160M2-2H	15
80CLZ1-9BZS	65	30	3550	4.2	9.7	Y160M2-2H	15
80CLZ1-13	54	30	3550	5	8	Y160M1-2H	11
80CLZ1-13Z	54	30	3550	5	8	Y160M1-2H	11
80CLZ1-14S	72	28	3550	4.5	9.8	Y160M2-2H	15
100CLZ1-6	95	115	3580	4.5	58.3	Y280S-2H	75
100CLZ1-6A	85	108	3580	5	50	Y250M-2H	55
100CLZ1-6B	90	89	3580	5	45.4	Y250M-2H	55
100CLZ1-6.5	120	115	3580	5	68.3	Y280M-2H	90
100CLZ1-6.5A	114	108	3580	5	62.1	Y280S-2H	75
100CLZ1-8	95	72	3580	4.5	32.1	Y200L2-2H	37
100CLZ1-8A	85	65	3580	4.5	26.4	Y200L2-2H	37
100CLZ1-9	120	72	3580	5	38.0	Y225M-2H	45
100CLZ1-9A	114	65	3580	5	33.1	Y225M-2H	45
100CLZ1-12	95	45	3580	4.5	19.4	Y200L1-2H	30
100CLZ1-12A	85	40	3550	4.5	15.7	Y160L-2H	18.5
100CLZ1-13	120	45	3580	5.3	23.3	Y200L1-2H	30
100CLZ1-13A	114	40	3580	5.3	20	Y200L1-2H	30
100CLZ1-17	95	28	3550	4.5	12.1	Y160M2-2H	15
100CLZ1-18.5	120	28	3550	5.3	15.3	Y180M-2H	22
100CLZ1-18.5A	114	25	3550	5.3	13.4	Y160L-2H	18.5
125CLZ1-8	192	115	3580	6.5	103.7	Y315M-2H	132
125CLZ1-8A	180	108	3580	6.5	91.3	Y315S-2H	110
125CLZ1-8B	180	95	3580	6.5	81.7	Y280M-2H	90
125CLZ1-12	192	72	3580	5.8	60.7	Y280S-2H	75
125CLZ1-12A	180	65	3580	5.8	52.2	Y280S-2H	75
125CLZ1-16.5	192	45	3580	5.8	37.4	Y225M-2H	45

Type	(60Hz 3 φ 440v) main technical parameter					Motor type power Kw		weight Kg
Type	Capacity m3/h	Head m	Speed r/min	NPSHr m	Shaft power Kw	Motor type power Kw		weight Kg
125CLZ1-16.5A	180	40	3580	5.8	31.6	Y200L2-2H	37
125CLZ1-23.5	192	28	3580	5.8	22.5	Y200L1-2H	30
125CLZ1-23.5A	180	25	3580	5.8	19.2	Y200L1-2H	30
150CLZ1-14	300	72	3580	7	91.9	Y315S-2H	110
150CLZ1-14A	288	66	3580	7	82.2	Y280M-2H	90
150CLZ1-17.5	225	47	3580	7	46.3	Y250M-2H	55
150CLZ1-21	300	46	3580	7	57.8	Y280S-2H	75
150CLZ1-21A	288	40	3580	7	48.3	Y250M-2H	55
200CLZ1-12	360	43	1780	6.5	70.3	Y280M-4H	90
200CLZ1-12A	336	36	1780	6.5	56.8	Y280S-4H	75
200CLZ1-24.5	500	26	1780	7	57.2	Y280S-4H	75

CLZ Marine Vertical Self-Priming Centrifugal Pump
