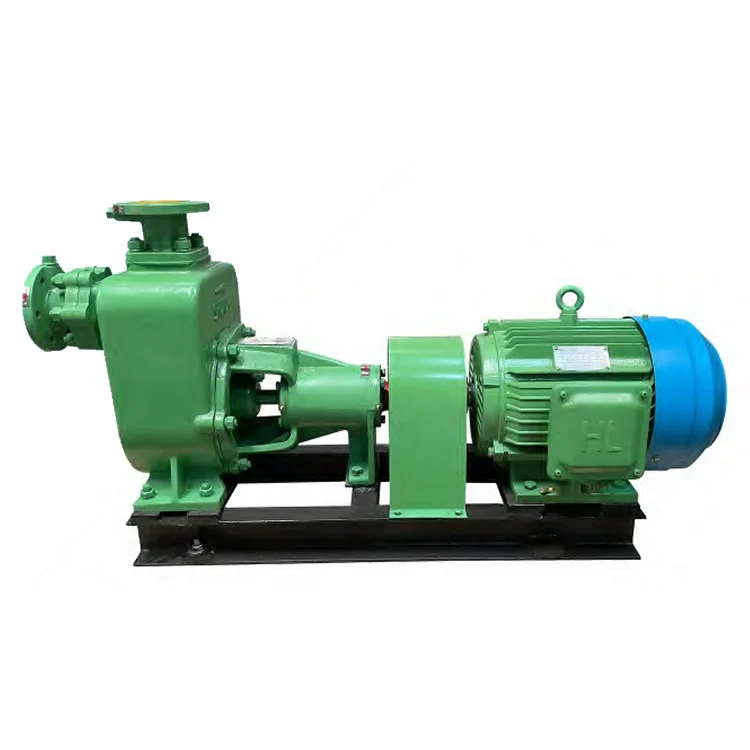

CWZ Marine Horizontal Self-Priming Centrifugal Pump

CWZ marine horizontal self-priming centrifugal pump is a well-designed marine pump, Cagon can also supply you other kinds of marine pumps. We have already cooperated with many countries' customers, and gain good reputation. Hoping can become your long-term supplier, we will offer tech-support when you need.

Send Inquiry

Product Description

The CWZ marine horizontal self-priming centrifugal pumps are installed at the cabin bottom for water cooling and fire-fighting. They can handle sea water below 80 degrees, fresh water, and other non-eroding liquids. When viewed from the motor, the pump rotates anticlockwise.

Main technical parameter:

Type	(50Hz 3 φ 380v) main technical parameter					Motor type power Kw		Weight kg
Type	Capacity m3/h	Head m	Speed r/min	NPSHr m	Shaft power kW	Motor type power Kw		Weight kg
32CWZ-5	4	23.7	2900	3		Y90S-2H	1.5	28
	8	21		2.8	1.2
	9.6	19.5		3.1
32CWZ-4	4	31.2	2900	5		Y90L-2H	2.2	30
	8	30		3.5	1.63
	9.6	28		3.2
32CWZ-3	4	45.7	2900	3.2		Y112M-2H	4	30
	8	42		2.8	2.54
	9.6	40.4		3
40CWZ-6	6	24.5	2900	2.2		Y90L-2H	2.2	48
	12	21		2.6	1.32
	14.4	18.5		3
40CWZ-5	6	3.8	2900	2		Y100L-2H	3	50
	12	30		2.8	1.92
	14.4	28.7		3.4
40CWZ-4	6	42.8	2900	4.4		Y112M-2H	4	50
	12	42		3.7	2.92
	14.4	41.5		4
40CWZ-3	12	50	2900	4	4.36	Y132S1-2H	5.5	136
50CWZ-8	10.5	23.5	2900	3		Y100L-2H	3	51
	21	21		2.8	2.35
	25.2	18.8		3.1
50CWZ-6	10.5	34.8	2900	2.8		Y112M-2H	4	51
	21	30		3.5	3.06
	25.2	27		4.3
50CWZ-5	10.5	44.8	2900	2.3		Y132S1-2H	5.5	52
	21	42		2.7	4.62
	25.2	40		3.2
65CWZ-11	18	24	2900	3.6		Y112M-2H	4	50
	36	21		3.8	3.22
	43.2	19		4.2
65CWZ-8	18	34	2900	4.5		Y132S1-2H	5.5	52
	36	30		5	4.82
	43.2	28.2		5.4
65CWZ-6	18	46.4	2950	2.2		Y160M1-2H	11	65
	36	42		2.8	7.22
	43.2	39.1		3.6
65CWZ-5	18	65	2950	3.2		Y160M2-2H	15	78
	36	60		3.4	11.31
	43.2	58		4.3
80CWZ-14	30	23.8	2900	4.4		Y132S2-2H	7.5	93
	60	21		3.8	5.12
	72	19		4.2

Type	(50Hz 3 φ 380v) main technical parameter					Motor type power Kw		Weight kg
Type	Capacity m3/h	Head m	Speed r/min	NPSHr m	Shaft power kW	Motor type power Kw		Weight kg
80CWZ-11	30	34	2950	4.5		Y160M1-2H	11	95
	60	30		4.9	7.54
	72	27.5		5.6
80CWZ-8	30	47.4	2950	3.3		Y160M2-2H	15	100
	60	42		4.2	12.48
	72	37		4.8
80CWZ-6	30	64.4	2950	3.5		Y180M-2H	22	100
	60	60		3.2	18.16
	72	56		3.8
80CWZ-5.5	30	79.4	2950	2.4		Y200L1-2H	30	120
	60	75		3.5	21.88
	72	71		3.9
80CWZ-4	12.5	27.2	1450	2.1		Y132S-4H	5.5	160
	25	25		2.3	3.4
	30	23.5		2.6
100CWZ-18	50	24.2	2950	3		Y160M1-2H	11	112
	100	21		4.4	8.41
	120	18.6		5.1
100CWZ-14	50	32.2	2950	3		Y160M2-2H	15	112
	100	30		4.5	12.57
	120	27		5.5
100CWZ-11	50	48	2950	3.2		Y180M-2H	22	135
	100	42		4.8	19.72
	120	36.5		6
100CWZ-8	50	64.5	2950	2.4		Y200L2-2H	37	188
	100	60		4.1	29.70
	120	58		4.8
100CWZ-6	50	87.8	2950	3.1		Y250M-2H	55	188
	100	85		4.9	46.29
	120	81		6
125CWZ-23.5	80	23.2	2950	3		Y160L-2H	18.5	165
	160	20		4.4	14.5
	192	17.4		5.1
125CWZ-16.5	80	34.2	2950	3		Y200L1-2H	30	165
	160	32		4.4	22.1
	192	28		5.1
150CWZ-15	125	23.2	1480	3.5		Y200L-4H	30	225
	250	20		4.5	22.7
	300	18.6		5.1
150CWZ-9	100	32.2	1480	2.1		Y225S-4H	37	240
	200	30		2.3	29.7
	240	27		2.6
150CWZ-7	100	52	1480	2.1		Y225M-4H	45	245
	200	45		2.3	37.7
	240	39.5		2.6

Type	(50Hz 3 φ 380v) main technical parameter					Motor type power Kw		Weight kg
	Capacity m3/h	Head m	Speed r/min	NPSHr m	Shaft power kW
200CWZ-23.5	200	24	1480	3.8		Y225M-4H	45	300
	400	20		4.5	36.3
	480	17		5.2
200CWZ-15	125	16.2	1480	2.1		Y180M-4H	18.5	340
	250	14		2.3	13.4
	300	11.6		2.6
200CWZ-9	150	49.5	1480	2.1		Y280S-4H	75	260
	300	45		2.3	52.5
	360	43		2.6

Parameters in case of power supply frequency of 60Hz

Type	(60Hz 3 φ 440v) main technical parameter					Motor type power Kw		Weight kg
Type	Capacity m3/h	Head m	Speed r/min	NPSHr m	Shaft power kW	Motor type power Kw		Weight kg
32CWZ1-5	4.8	34.1	3500	4		Y100L-2H	3	28
	9.6	30.2		3.7	2.08
	11.5	28		4.1
32CWZ1-4	4.8	44.8	3500	6.6		Y112M-2H	4	30
	9.6	43.2		4.7	2.82
	11.5	40.3		4.3
32CWZ1-3	4.8	65.5	3500	4.3		Y132S1-2H	5.5	30
	9.6	60.4		3.7	4.39
	11.5	58.1		4
40CWZ1-6	7.2	35.2	3500	2.9		Y100L-2H	3	48
	14.4	30.2		3.5	2.28
	17.3	26.5		4
40CWZ1-5	7.2	45.5	3500	2.7		Y112M-2H	4	50
	14.4	43.2		3.7	3.32
	17.3	41		4.5
40CWZ1-3	14.4	72	3550	5.6	7.53	Y160M1-2H	11
40CWZ1-4	7.2	61.5	3500	5.8		Y132S2-2H	7.5	50
	14.4	60.5		4.9	5.05
	17.3	59.7		5.3
50CWZ1-8	12.6	33.8	3500	4		Y132S1-2H	5.5	46
	25.2	30.2		3.7	4.06
	30.2	27		4.1
50CWZ1-6	12.6	50	3500	3.7		Y132S2-2H	7.5	60
	25.2	43.2		4.6	5.29
	30.2	38.8		5.7
50CWZ1-5	12.6	64.5	3550	3		Y160M1-2H	11	52
	25.2	60.4		3.6	7.97
	30.2	57.6		4.2
65CWZ1-11	21.6	34.5	3500	4.8		Y132S2-2H	7.5	50
	43.2	30.2		5	5.55
	51.8	27.3		5.6

Type	(50Hz 3 φ 380v) main technical parameter					Motor type power Kw		Weight kg
Type	Capacity m3/h	Head m	speed r/min	NPsHr m	shaft power kW	Motor type power Kw		Weight kg
65CWZ1-8	21.6	48.9	3550	6		Y160M1-2H	11	52
	43.2	43.2		6.6	8.33
	51.8	37.2		7.1
65CWZ1-6	21.6	66.8	3550	2.9		Y160M2-2H	15	65
	43.2	60.4		3.7	12.5
	51.8	56.3		4.8
65CWZ1-5	21.6	93.6	3550	4.2		Y180M-2H	22	78
	43.2	86.4		4.5	19.5
	51.8	83.5		5.7
80CWZ1-14	36	34.2	3550	5.8		Y160M1-2H	11	100
	72	30.2		5.1	8.84
	86.4	27.3		5.6
80CWZ1-11	36	48.9	3550	6		Y160M2-2H	15	100
	72	43.2		6.5	13.0
	86.4	39.6		7.4
80CWZ1-8	36	68.2	3580	4.4		Y200L1-2H	30	100
	72	60.4		5.6	21.53
	86.4	53.2		6.3
80CWZ1-6	36	92.5	3580	3.3		Y200L2-2H	37	100
	72	86.4		4.3	31.4
	86.4	80.6		5
80CWZ1-5.5	36	114	3580	3.2		Y225M-2H	45	120
	72	108		4.7	37.8
	86.4	102		5.2
80CWZ1-4	15	39.1	1750	2.8		Y132M-4H	7.5	160
	30	36		3.1	5.88
	36	33.8		3.5
100CWZ1-18	60	34.8	3550	4		Y160L-2H	18.5	112
	120	30.2		5.8	14.5
	144	26.5		6.1
100CWZ1-14	60	46	3580	4.8		Y200L1-2H	30	112
	120	43.2		6	21.7
	144	38.8		7.3
100CWZ1-11	60	69	3580	4.3		Y200L2-2H	37	135
	120	60.4		6.4	34.1
	144	52.5		8
100CWZ1-8	60.0	92.5	3580	3.2		Y250M-2H	55	188
	120	86.4		5.5	51.3
	144	83		6.4
100CWZ1-6	60	126	3580	4.5		Y280M-4H	90	188
	120	122		6.5	79.7
	144	116		8
125CWZ1-23.5	96	33.4	3580	4		Y200L1-2H	30	165
	192	28.8		5.8	25.1
	230.4	25.1		6.1

Type	(50Hz 3 φ 380v) main technical parameter					Motor type power Kw		Weight kg
	Capacity m3/h	Head m	Speed r/min	NPSHr m	Shaft power kW
125CWZ1-16.5	96	49.3	3580	4		Y225M-2H	45	165
	192	46.1		5.8	38.3
	230.4	40.3		6.1
150CWZ1-15	150	33.4	1780	5		Y225M-4H	45	225
	300	28.8		6	39.2
	360	26.7		7
150CWZ1-9	120	46.4	1780	2.8		Y250M-4H	55	240
	240	43.2		3.1	51.4
	288	38.9		3.5
150CWZ1-7	120	74.9	1780	2.8		Y280S-4H	75	245
	240	64.8		3.1	65.2
	288	56.9		3.5
200CWZ1-23.5	240	34.6	1780	5		Y280S-4H	75	300
	480	28.8		6	62.7
	576	24.5		7
200CWZ1-15	150	23.3	1780	2.8		Y200L-4H	30	340
	300	20		3.1	23.2
	360	16.7		3.5
200CWZ1-9	180	71.3	1780	2.8		Y315S-4H	110	260
	360	64.8		3.1	90.8
	432	61.2		3.5
