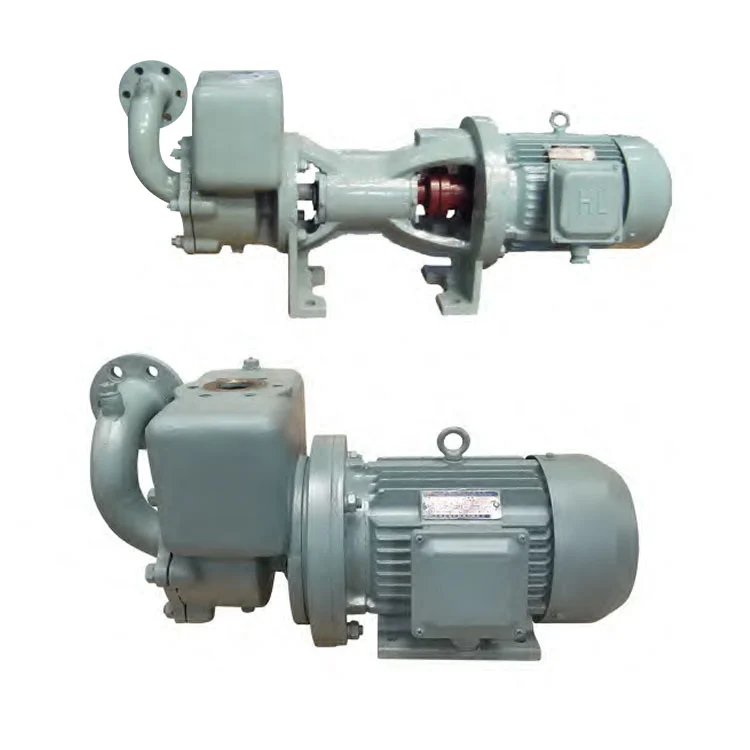

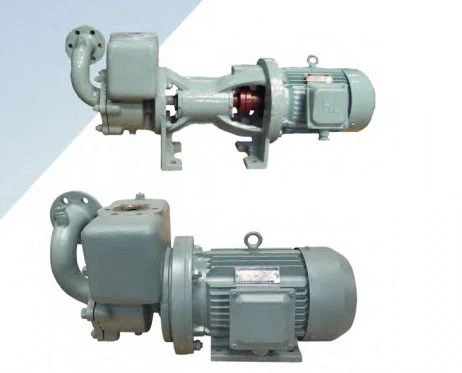

CWX marine self-priming vortex pump are applicable to pumping fresh and sea water for drinking washing and sanitary uses in vessels.
Parameters in case of power supply frequency of 50Hz
| Type | (50Hz 3 φ 440V) main technical parameter | Motor type power Kw |
Weight Kg |
Remark s |
|||||
|
Capacity m3/h |
Head m |
Speed r/min |
NPSHr m |
Shaft power kW |
|||||
| 1.5CWX-2 | 3 | 40 | 2900 | 4 | 2 | Y90L-2H | 2.2 | direct connection type、 | |
| 1.5CWX-3 | 6.5 | 35 | 2900 | 4 | 2.3 | Y100L-2H | 3 | 50 | |
| 1.5CWX-4 | 10 | 35 | 2900 | 4 | 2.5 | Y112M-2H | 4 | 65 | |
| 1.5CWX-2A | 3 | 40 | 2900 | 4 | 2 | Y90L-2H | 2.2 | 63 | Bracket-mounted connection |
| 1.5CWX-3A | 6.5 | 35 | 2900 | 4 | 2.3 | Y100L-2H | 3 | 68 | |
| 1.5CWX-4A | 10 | 35 | 2900 | 4 | 2.5 | Y112M-2H | 4 | 84 | |
Parameters in case of power supply frequency of 60Hz
| Type | (60Hz 3 φ 440V) main technical parameter | Motor type power Kw |
Weight Kg |
Remark s |
|||||
|
Capacity m3/h |
Head m |
Speed r/min |
NPSHr m |
Shaft power kW |
|||||
| 1.5CWX1-2 | 3.6 | 57 | 3500 | 4.5 | 3.43 | Y112M-2H | 4 | 65 | direct connection type |
| 1.5CWX1-3 | 7.8 | 50 | 3500 | 4.5 | 3.95 | Y132S1-2H | 5.5 | 82 | |
| 1.5CWX1-4 | 12 | 50 | 3500 | 4.5 | 4.29 | Y132S1-2H | 5.5 | 86 | |
| 1.5CWX1-2A | 3.6 | 57 | 3500 | 4.5 | 3.43 | Y112M-2H | 4 | 83 | Bracket-mounted connection |
| 1.5CWX1-3A | 7.8 | 50 | 3500 | 4.5 | 3.95 | Y132S1-2H | 5.5 | 100 | |
| 1.5CWX1-4A | 12 | 50 | 3500 | 4.5 | 4.29 | Y132S1-2H | 5.5 | 105 | |
