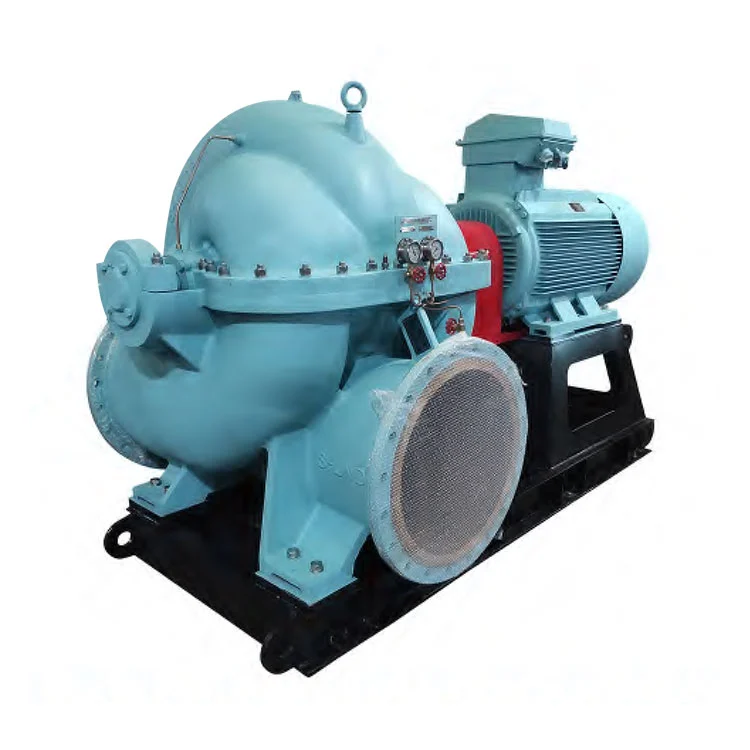

CWS Marine Double Suction Mid-Open Horizontal Centrifugal Pump

Get one-step solution of your marine equipments from Cagon, a reliable manufacturer and supplier. CWS marine double suction mid-open horizontal centrifugal pump is a quality and durable product, can performance well in capital ships and float boatyards. Welcome both new and old customers contact us for our price list and more information.

Send Inquiry

Product Description

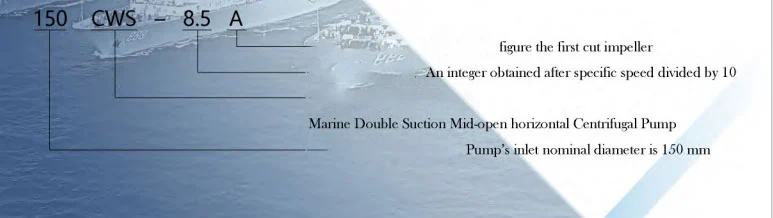

The CWS marine double suction mid-open horizontal centrifugal pump is a single-stage, double-suction, horizontally split-case centrifugal pump. It's used to transfer fresh water and liquids with similar physical and chemical properties. When the overflow components are made of stainless steel or coated with SEBF high-performance epoxy powder coating, it can handle corrosive liquids. The maximum temperature of the conveyed liquids should not exceed 80℃. It's applicable for water supply and drainage in factories, mines, cities, power stations, and agricultural flood control and irrigation projects. It's commonly used in capital ships and float boatyards.

Main technical parameter:

Type	(50Hz 3 φ 380V) main technical parameter					Motor type power Kw		Weight Kg
Type	Capacity m3/h	Head m	Speed r/min	NPSHr m	Shaft power kW	Motor type power Kw		Weight Kg
150CWS-8.5	125	54	2950		25.2	Y200L2-2H	37	147
	160	50		3.8	28.1
	200	42			29.7
150CWS-8.5A	105	44	2950		17.5	Y200L1-2H	30	147
	140	40		3.8	20.3
	170	35			21.9
150CWS-8.5B	100	39	2950		16.3	Y180M-2H	22	147
	130	36		3.1	18.2
	160	32			19.4
150CWS-6	125	84	2950		39.7	Y250M-2H	55	158
	160	78		3.3	46.9
	200	70			52.2
150CWS-6A	105	65	2950		27.3	Y225M-2H	45	158
	140	60		3.3	31.8
	170	54			35.7
200CWS-13	210	48	2950		33.9	Y225M-2H	45	190
	280	42		6.3	39.3
	335	35			40.4
200CWS-13A	200	43	2950		30.8	Y200L2-2H	37	190
	270	36		6	33.1
	325	30			34.9
200CWS-9	210	68	2950		50.2	Y280S-2H	75	190
	280	63		5.7	60.4
	335	58			64.1
200CWS-9A	180	55	2950		36.4	Y250M-2H	55	190
	245	48		5.5	41
	295	40			42.8
200CWS-7	210	104	2950		79.3	Y315M-2H	132	240
	280	95		5.3	94.7
	335	90			103.9
200CWS-7A	200	94	2950		72.1	Y315S-2H	110	240
	270	87		5.2	84.2
	325	80			93.1
200CWS-7B	190	81	2950		60.8	Y280S-2H	75	240
	250	74		5.1	66.3
	300	66			72.8
250CWS-19	370	16	1480		20	Y200L-4H	30	290
	495	14		3.9	22.6
	595	12			23
250CWS-19A	345	12	1480		14.3	Y180M-4H	18.5	290
	460	10		3.8	15.3
	550	8			15.6
250CWS-13	370	27	1480		32.8	Y225M-4H	45	360
	495	24		3.7	38.7
	595	20			39.1
250CWS-13A	345	23	1480		26.7	Y225S-4H	37	360
	460	21		3.6	32.1
	550	18			33.3

Type	(50Hz 3 φ 380v) main technical parameter					Motor type power Kw		Weight Kg
Type	Capacity m3/h	Head m	Speed r/min	NPSHr m	Shaft power kW	Motor type power Kw		Weight Kg
250CWS-9	370	34	1480		55.3	Y280S-4H	75	370
	495	39		3.5	64.5
	595	34			67.2
250CWS-9A	345	37	1480		46.9	Y250M-4H	55	370
	460	31		3.5	49.2
	550	26			50.5
250CWS-6	370	69.5	1480		88	Y315M-4H	132	480
	495	65		3.2	115
	595	61			130
250CWS-6A	345	51	1480		63.9	Y315S-4H	110	480
	460	48		3.2	80.2
	550	44			89.1
300CWS-27.5	600	14.5	1480		28.5	Y225S-4H	37	530
	800	12		5.8	30.2
	960	9			28.9
300CWS-27.5A	540	11.5	1480		23.5	Y200L-4H	30	530
	720	10.5		5.7	25.1
	865	8.5			25.5
300CWS-19	600	21	1480		43.4	Y250M-4H	55	430
	800	19		5.5	48.7
	960	16			49.6
300CWS-19A	555	18	1480		38.3	Y225M-4H	45	430
	740	16		5.5	39.3
	890	13			39.8
300CWS-13	600	35	1480		69.7	Y280M-4H	90	530
	800	32		5.1	82
	960	28			85.1
300CWS-13A	555	29	1480		54.1	Y280S-4H	75	530
	740	25.5		5.1	61.2
	890	21.5			63
300CWS-8.5	600	62	1480		126.6	Y315L2-4H	200	555
	800	58		4.7	153.2
	960	52			169.9
300CWS-8.5A	560	57	1480		108.6	Y315L1-4H	160	555
	750	52		4.7	129.5
	900	44			138.2
300CWS-8.5B	530	49	1480		96.9	Y315M-4H	132	555
	710	45		4.7	108.7
	850	39			115.7
300CWS-6	600	95	1480		201.4	Y355L2-4H	315	740
	800	90		4.2	253
	960	84			288
300CWS-6A	570	89	1480		191.7	Y355L1-4H	280	740
	760	81		4.2	226.5
	910	72			251
300CWS-6B	535	75	1480		156	Y355M1-4H	220	740
	715	69		4.2	184
	860	59			197.5
350CWS-27.5	945	20	1480		64.7	Y280S-4H	75	740
	1260	16		7.5	63.5
	1510	12			60.9

Type	(50Hz 3 φ 380v) main technical parameter					Motor type power Kw		Weight Kg
Type	Capacity m3/h	Head m	Speed r/min	NPSHr m	Shaft power kW	Motor type power Kw		Weight Kg
350CWS-27.5A	860	16	1480		50.7	Y250M-4H	55	740
	1150	12.5		7.4	48.3
	1380	9.5			48.2
350CWS-19	945	30	1480		93	Y315M-4H	132	672
	1260	26		7.1	103.5
	1510	20.5			105.2
350CWS-19A	860	25	1480		73.2	Y280M-4H	90	672
	1150	21.5		7.1	79.2
	1380	17.5			82.2
350CWS-13	945	49	1480		149.2	Y355M1-4H	220	870
	1260	44		6.7	148.5
	1510	38.5			154.8
350CWS-13A	890	44	1480		133.3	Y315L1-4H	160	870
	1190	38.5		6.7	148.5
	1400	32.5			154.8
350CWS-8.5	945	82	1480		268.6	Y355L2-4H	350	1200
	1260	75		6.2	307
	1510	66			327
350CWS-8.5A	890	70	1480		216	Y355L1-4H	280	1200
	1190	64		6.2	253
	1400	56.5			262.5
350CWS-8.5B	825	57	1480		169.5	Y355M1-4H	220	1200
	1100	52		6.2	192
	1320	46			206
350CWS-6	945	138	1480		493		710	1420
	1260	125		5.3	545
	1510	107			590
350CWS-6A	890	122	1480		416.5		560	1420
	1190	112		5.3	465
	1400	96			501
350CWS-6B	825	104	1480		329		450	1420
	1100	96		5.3	373.5
	1320	83			408.5
400CWS-13	1200	59	1480		248.6		355	1420
	1800	52		8.5	293
	2100	45			312
400CWS-13A	1160	54.5	1480		214.3	Y355L1-4H	280	1420
	1740	45		5.3	373.5
	2030	38			408.5
500CWS-27.5	1515	15.5	980		80.9	Y315L1-6H	110	1260
	2020	13		6.2	86.1
	2425	10			82.5
500CWS-19	1515	24.5	980		131.2	Y355M2-6H	185	1722
	2020	22		5.7	144
	2425	19			147.5
500CWS-19A	1350	20	980		99.3	Y315L2-6H	132	1722
	1800	17		5.7	144
	2160	15			147.5
500CWS-13	1515	39	980		189.2	Y355L2-6H	280	2210
	2020	35		5.2	220.8
	2425	29			225.3

Type	(50Hz 3φ 380V) main technical parameter					Motor type power Kw		Weight Kg
Type	Capacity m3/h	Head m	Speed r/min	NPSHr m	Shaft power kW	Motor type power Kw		Weight Kg
500CWS-13A	1350	32	980		143.5	Y355M2-6H	200	2210
	1800	27		5.2	155.6
	2160	22.5			157.5
500CWS-8.5	1515	69	980		360		450	2340
	2020	59		4.8	391
	2425	45			371.5
500CWS-8.5A	1350	58	980		288		400	2340
	1800	49.5		4.8	323.5
	2160	39			318.5
500CWS-8.5B	1275	48	980		228.3	Y400M-6H	315	2340
	1700	40.5		4.8	253.2
	2020	32			248
500CWS-6	1620	114	980		644.8		800
	2020	98		4.5	678
	2340	79			680.3
500CWS-6A	1500	96	980		509.3		630
	1872	83		4.5	540
	2170	67			542.4
500CWS-6B	1400	86	980		431.4		560
	1746	74		4.5	452
	2020	59			432.8
600CWS-23			980			Y355L2-6H	280
	3170	22		7.8	223

600CWS-23A			980			Y355M3-6H	200
	2880	18.2		7.5	168.5

600CWS-17.5	2520	37	980		295		400
	3170	32		7.2	310
	3960	22			279
600CWS-17.5A	2304	31.5	980		235	Y355L2-6H	280
	2880	27		7.2	238
	3600	20			231
600CWS-13	2500	56	980		460		560
	3170	47		6.8	465
	3500	38			452.8
600CWS-13A	1980	46	980		318		450
	2920	40		6.8	361
	3240	37			380
600CWS-9			980				800
	3770	75		6.5	727

600CWS-9A			980				630
	2880	65		6.5	580

600CWS-9B	1800	60	980		367.6		560
	2710	55		6.5	477.5
	3060	51			531.3
700CWS-27			740			Y355L-8H	200
	3800	14		8	174.5
