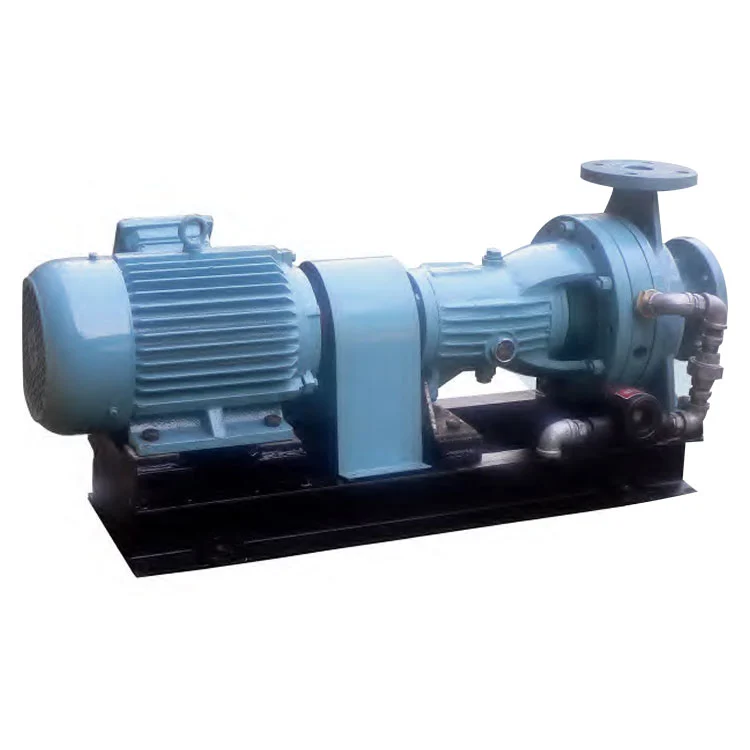

CWR Marine Horizontal Hot Water Circulating Pump

Cagon is a marine pump supplier, our CWR marine horizontal hot water circulating pump is commonly used for boiler hot water (fresh water) circulation in sea or river shipping. The feeding hot water temperature must not exceed 200℃, the water inlet pressure should be no higher than 1.6MPa, the cooling water capacity ranges from 0.6m³/h to 1 m³/h, and the cooling water temperature should not exceed 40℃.

Send Inquiry

Product Description

Widely applied in light industry, paper-making, textile, food, chemicals, power industry, mining, boats, urban sewage drainage, and aquatic culture, the CWR marine horizontal hot water circulating pump is currently the most ideal pump in China for transporting media with solid particles, fibers, pulps, and mixed suspensions.

Main technical parameter:

Parameters in case of power supply frequency of 50Hz

Type	(50Hz 3 φ 380V) main technical parameter					Motor type power Kw		Weight Kg
Type	Capacity m3/h	Head m	Speed r/min	NPSHr m	Shaft power kW	Motor type power Kw		Weight Kg
40CWR-6.5	8	15	2900	3	0.58	Y802-2H	1.1
40CWR-6.5A	7	12	2900	3	0.42	Y801-2H	0.75
40CWR-4.5	8	25	2900	3	1.10	Y90S-2H	1.5
40CWR-4.5A	7	22	2900	3	0.87	Y90S-2H	1.5
40CWR-4.5B	6	18	2900	3	0.63	Y802-2H	1.1
40CWR-3.5	8	35	2900	3	1.71	Y100L-2H	3
40CWR-3.5A	7	32	2900	3	1.42	Y90L-2H	2.2
40CWR-3.5B	6	28	2900	3	1.12	Y90S-2H	1.5
50CWR-9	15	15	2900	3	0.94	Y90S-2H	1.5
50CWR-9A	13	12	2900	3	0.66	Y802-2H	1.1
50CWR-6	15	25	2900	3	1.70	Y100L-2H	3
50CWR-6A	13	22	2900	3	1.32	Y90L-2H	2.2
50CWR-6B	11	18	2900	3	0.95	Y90S-2H	1.5
50CWR-4.5	15	35	2900	3	2.57	Y100L-2H	3
50CWR-4.5A	13	32	2900	3	2.10	Y100L-2H	3
50CWR-4.5B	11	28	2900	3	1.58	Y90L-2H	2.2
50CWR-3.5	15	50	2900	3	4.04	Y132S1-2H	5.5
50CWR-3.5A	13	45	2900	3	3.25	Y112M-2H	4
50CWR-3.5B	11	40	2900	3	2.55	Y100L-2H	3
65CWR-11.5	25	15	2900	3	1.44	Y90L-2H	2.2
65CWR-11.5A	23	12	2900	3	1.09	Y90L-2H	2.2
65CWR-8	25	25	2900	3	2.52	Y100L-2H	3
65CWR-8A	23	22	2900	3	2.09	Y100L-2H	3
65CWR-8B	21	18	2900	3	1.61	Y90L-2H	2.2
65CWR-6	25	35	2900	3	3.73	Y132S1-2H	5.5
65CWR-6A	23	32	2900	3	3.23	Y112M-2H	4
65CWR-6B	21	28	2900	3	2.67	Y112M-2H	4
65CWR-4.5	25	50	2900	3	5.77	Y132S2-2H	7.5
65CWR-4.5A	23	45	2900	3	4.94	Y132S2-2H	7.5
65CWR-4.5B	21	40	2900	3	4.16	Y132S1-2H	5.5
80CWR-16	50	15	2900	3.5	2.73	Y112M-2H	4
80CWR-16A	47	12	2900	3.5	2.10	Y100L-2H	3
80CWR-8.5	50	35	2950	3.5	6.56	Y160M1-2H	11
80CWR-8.5A	47	32	2900	3.5	5.77	Y132S2-2H	7.5
80CWR-8.5B	45	28	2900	3.5	4.97	Y132S2-2H	7.5
80CWR-6.5	50	50	2950	3.5	9.87	Y160M2-2H	15
80CWR-6.5A	47	45	2950	3.5	8.60	Y160M1-2H	11

Type	(50Hz 3 φ 380v) main technical parameter					Motor type power Kw		Weight Kg
Type	Capacity m3/h	Head m	speed r/min	NPsHr m	shaft power kW	Motor type power Kw		Weight Kg
80CWR-6.5B	45	40	2950	3.5	7.54	Y160M1-2H	11
100CWR-21	80	15	2900	4.5	4.24	Y132s1-2H	5.5
100CWR-21A	75	12	2900	4.5	3.27	Y112M-2H	4
100CWR-11	80	35	2950	4	9.97	Y160M2-2H	15
100CWR-11A	75	32	2950	4	8.71	Y160M1-2H	11
100CWR-11B	70	28	2950	4	7.31	Y160M1-2H	11
100CWR-8.5	80	50	2950	4	14.64	Y160L-2H	18.5
100CWR-8.5A	75	45	2950	4	12.59	Y160M2-2H	15
100CWR-8.5B	70	40	2950	4	10.74	Y160M2-2H	15
125CWR-13.5	120	35	2950	5.3	14.52	Y160L-2H	18.5
125CWR-13.5A	110	32	2950	5.3	12.45	Y160M2-2H	15
125CWR-13.5B	100	28	2950	5.3	10.17	Y160M2-2H	15
125CWR-10	120	50	2950	5	20.95	Y200L1-2H	30
125CWR-10A	110	45	2950	5	17.74	Y180M-2H	22
125CWR-10B	100	40	2950	5	14.72	Y160L-2H	18.5

Performance and parameter table for the power supply frequency of 60Hz 3 φ 440v

Type	(60Hz 3 φ 440v) main technical parameter					Motor type power Kw		Weight Kg
Type	Capacity m3/h	Head m	speed r/min	NPsHr m	shaft power kW	Motor type power Kw		Weight Kg
40CWR1-6.5	10	21	3500	3.5	1.04	Y90s-2H	1.5
40CWR1-6.5A	8.5	17	3500	3.5	0.74	Y802-2H	1.1
40CWR1-4.5	10	35	3500	3.5	1.96	Y100L-2H	3
40CWR1-4.5A	8.5	31	3500	3.5	1.52	Y90L-2H	2.2
40CWR1-4.5B	7	26	3500	3.5	1.08	Y90s-2H	1.5
40CWR1-3.5	10	50	3500	3.5	3.11	Y112M-2H	4
40CWR1-3.5A	8.5	45	3500	3.5	2.46	Y100L-2H	3
40CWR1-3.5B	7	40	3500	3.5	1.89	Y100L-2H	3
50CWR1-9	18	21	3500	3.5	1.61	Y90L-2H	2.2
50CWR1-9A	15	17	3500	3.5	1.10	Y90s-2H	1.5
50CWR1-6	18	36	3500	3.5	2.99	Y112M-2H	4
50CWR1-6A	15	32	3500	3.5	2.25	Y100L-2H	3
50CWR1-6B	13	26	3500	3.5	1.64	Y90L-2H	2.2
50CWR1-4.5	18	50	3500	3.5	4.48	Y132s1-2H	5.5
50CWR1-4.5A	15	46	3500	3.5	3.54	Y132s1-2H	5.5
50CWR1-4.5B	13	40	3500	3.5	2.72	Y112M-2H	4
50CWR1-3.5	18	72	3550	3.5	7.40	Y160M1-2H	11

Type	(60Hz 3 φ 440v) main technical parameter					Motor type power Kw		Weight Kg
Type	Capacity m3/h	Head m	speed r/min	NPsHr m	shaft power kW	Motor type power Kw		Weight Kg
40CWR1-6.5	10	21	3500	3.5	1.04	Y90s-2H	1.5
40CWR1-6.5A	8.5	17	3500	3.5	0.74	Y802-2H	1.1
40CWR1-4.5	10	35	3500	3.5	1.96	Y100L-2H	3
40CWR1-4.5A	8.5	31	3500	3.5	1.52	Y90L-2H	2.2
40CWR1-4.5B	7	26	3500	3.5	1.08	Y90s-2H	1.5
40CWR1-3.5	10	50	3500	3.5	3.11	Y112M-2H	4
40CWR1-3.5A	8.5	45	3500	3.5	2.46	Y100L-2H	3
40CWR1-3.5B	7	40	3500	3.5	1.89	Y100L-2H	3
50CWR1-9	18	21	3500	3.5	1.61	Y90L-2H	2.2
50CWR1-9A	15	17	3500	3.5	1.10	Y90s-2H	1.5
50CWR1-6	18	36	3500	3.5	2.99	Y112M-2H	4
50CWR1-6A	15	32	3500	3.5	2.25	Y100L-2H	3
50CWR1-6B	13	26	3500	3.5	1.64	Y90L-2H	2.2
50CWR1-4.5	18	50	3500	3.5	4.48	Y132s1-2H	5.5
50CWR1-4.5A	15	46	3500	3.5	3.54	Y132s1-2H	5.5
50CWR1-4.5B	13	40	3500	3.5	2.72	Y112M-2H	4
50CWR1-3.5	18	72	3550	3.5	7.40	Y160M1-2H	11

Type	(60Hz 3 φ 440v) main technical parameter					Motor type power Kw		Weight Kg
Type	Capacity m3/h	Head m	Speed r/min	NPSHr m	Shaft power kW	Motor type power Kw		Weight Kg
50CWR1-3.5A	15	65	3500	3.5	5.51	Y132S2-2H	7.5
50CWR1-3.5B	13	58	3500	3.5	4.44	Y132S1-2H	5.5
65CWR1-11.5	30	21	3500	3.5	2.47	Y100L-2H	3
65CWR1-11.5A	27	17	3500	3.5	1.84	Y100L-2H	3
65CWR1-8	30	36	3500	3.5	4.43	Y132S1-2H	5.5
65CWR1-8A	27	32	3500	3.5	3.63	Y132S1-2H	5.5
65CWR1-8B	25	26	3500	3.5	2.81	Y112M-2H	4
65CWR1-6	30	50	3550	3.5	6.80	Y160M1-2H	11
65CWR1-6A	27	46	3500	3.5	5.55	Y132S2-2H	7.5
65CWR1-6B	25	40	3500	3.5	4.62	Y132S1-2H	5.5
65CWR1-4.5	30	72	3550	3.5	10.58	Y160M2-2H	15
65CWR1-4.5A	27	65	3550	3.5	8.90	Y160M1-2H	11
65CWR1-4.5B	25	58	3550	3.5	7.62	Y160M1-2H	11
80CWR1-16	60	21	3500	4.3	4.66	Y132S2-2H	7.5
80CWR1-16A	56	17	3500	4.3	3.61	Y132S1-2H	5.5
80CWR1-8.5	60	50	3550	4.3	11.35	Y160M2-2H	15
80CWR1-8.5A	56	46	3550	4.3	10.49	Y160M2-2H	15
80CWR1-8.5B	54	40	3550	4.3	9.05	Y160M1-2H	11
80CWR1-6.5	60	72	3550	4	17.20	Y180M-2H	22
80CWR1-6.5A	56	65	3550	4	14.92	Y160L-2H	18.5
80CWR1-6.5B	54	58	3550	4	13.23	Y160M2-2H	15
100CWR1-21	96	21	3550	6	7.57	Y160M1-2H	11
100CWR1-21A	90	17	3500	6	5.65	Y132S2-2H	7.5
100CWR1-11	96	50	3550	5.5	17.23	Y180M-2H	22
100CWR1-11A	90	46	3550	5.5	15.16	Y160L-2H	18.5
100CWR1-11B	84	40	3550	5.5	12.64	Y160M2-2H	15
100CWR1-8.5	96	72	3550	5.5	25.52	Y200L1-2H	30
100CWR1-8.5A	90	65	3550	5.5	22.01	Y200L1-2H	30
100CWR1-8.5B	84	58	3550	5.5	18.85	Y180M-2H	22
125CWR1-13.5	144	50	3550	7.2	25.09	Y200L1-2H	30
125CWR1-13.5A	132	46	3550	7.2	21.66	Y200L1-2H	30
125CWR1-13.5B	120	40	3550	7.2	17.58	Y180M-2H	22
125CWR1-10	144	72	3550	5.5	36.51	Y200L2-2H	37
125CWR1-10A	132	65	3550	5.5	31.01	Y200L2-2H	37
125CWR1-10B	120	58	3550	5.5	25.83	Y200L1-2H	30
