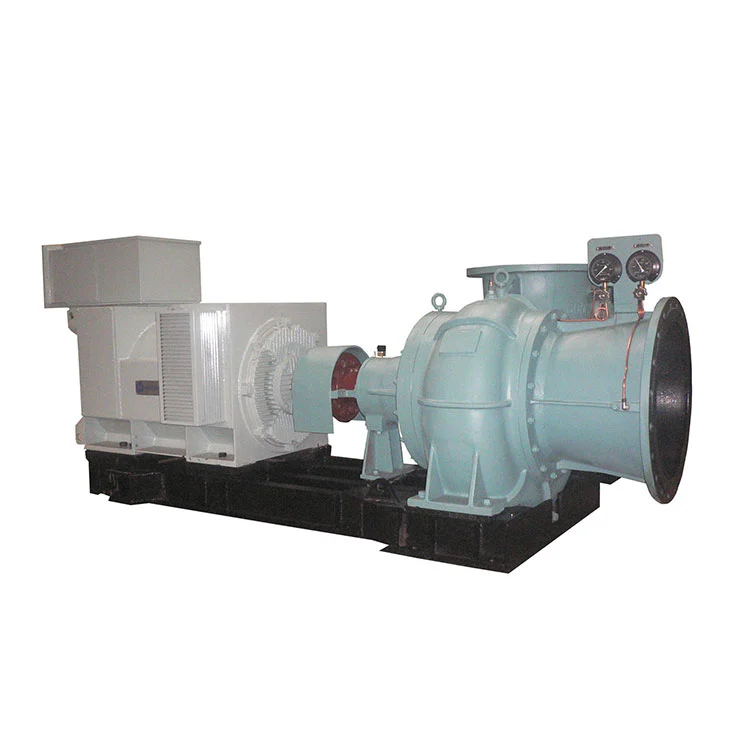

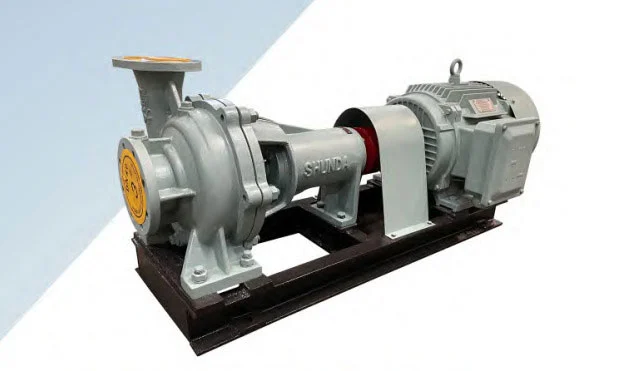

CWL Marine Horizontal Centrifugal Pump

Get Cagon high quality and customized marine pump solution, buy our CWL marine horizontal centrifugal pump and enjoy a wide application. We focus on the supplying of marine equipments, have strong ability of R&D, and can offer you tech-support. Products are easy to use and maintain, services are comprehensive.

Send Inquiry

Product Description

CWL marine horizontal centrifugal pumps are used for ship fire control, cooling, and sanitation systems. They also find applications in industries, urban water supply and drainage, as well as agricultural and orchard irrigation

Main technical parameter:

Performance parameters when power frequency is 50Hz

Type	(50Hz 3 φ 380V) main technical parameter					Motor type power Kw		Weight Kg
Type	Capacity m3/h	Head m	Speed r/min	NPSHr m	Shaft power kW	Motor type power Kw		Weight Kg
32CWL-2	5	60	2900	3.5	3.3	Y112M-2H	4
32CWL-4	2	20.2	2900	4.2		Y802-2H	1.1	62
	4	21		4.1	0.74
	4.8	20.9		4.1
32CWL-3	2	31	2900	3.0		Y90S-2H	1.5	60
	4	30		2.5	0.99
	4.8	29.2		2.8
40CWL-5	4	22.2	2900	4.4		Y802-2H	1.1	50
	8	21		3.0	0.85
	9.6	20		3.1
40CWL-4	4	32.3	2900	3.6		Y90L-2H	2.2	65
	8	30		2.6	1.31
	9.6	28.5		2.5
40CWL-3	4	43	2900	3.0		Y100L-2H	3	87
	8	42		2.5	2.13
	9.6	41		2.9
50CWL-6	6	22.2	2900	2.8		Y90S-2H	1.5	60
	12	21		2.0	1.16
	14.4	19.8		3.0
50CWL-4.5	6.0	31.5	2900	6.0		Y100L-2H	3	82
	12	30		3.6	1.78
	14.4	28.0		3.3
50CWL-4	6	43.7	2900	2.8		Y112M-2H	4	101
	12	42		3.4	2.75
	14.4	40.4		4.1
50CWL-8	16.5	22.8	2900	2.2		Y100L-2H	3	95
	21	21		2.2	1.91
	25.2	19		2.6
50CWL-7	10.5	33.6	2900	2.2		Y112M-2H	4	95
	21	30		2.4	2.72
	25.2	27		2.9
50CWL-5	10.5	45.5	2900	5		Y132S1-2H	5.5	125
	21	42		2.8	4.07
	25.2	39.5		3.1
50CWL-3.5	10.5	64	2900	1.8		Y132S2-2H	7.5	134
	21	60		2.3	6.24
	25.2	57		2.9
65CWL-11	17.5	23.7	2900	3.5		Y112M-2H	4	96
	35	21		3.8	2.78
	42	19.4		4
65CWL-8	17.5	33	2900	2.2		Y132S1-2H	5.5	118
	35	30		2.4	4.08
	42	28		2.7
65CWL-6	17.5	45.2	2900	2.8		Y132S2-2H	7.5	131
	35	42		2.5	5.98
	42	38.2		2.8
65CWL-5	17.5	64	2950	2.8		Y160M1-2H	11
	35	60		2.5	9.08
	42	57		2.8

Type	(50Hz 3 φ 380v) main technical parameter						Motor type power Kw		Weight Kg
	Capacity m3/h	Head m	Speed r/min		NPSHr m	Shaft power kW
80CWL-14	30	23	2900		3.7		Y132S1-2H	5.5	135
	60	21			3.7	4.4
	72	19.7			3.8
80CWL-14A	28	20.4	2900		3.7		Y132S1-2H	5.5	135
	56	18.5			3.7	3.71
	67.2	17.5			3.8
80CWL-11	30	34.5	2900		2.2		Y132S2-2H	7.5	132
	60	30			2.9	6.54
	72	27.2			3.6
80CWL-11A	28.5	31	2900		2.2		Y132S2-2H	7.5	132
	57	27			2.9	5.74
	68.4	24.5			3.6
80CWL-8	30	45	2950		3.7		Y160M1-2H	11	192
	60	42			3.2	9.4
	72	38.8			3.1
80CWL-8A	28	40	2950		3.7		Y160M1-2H	11	192
	56	37.6			3.2	8.07
	68.2	34.5			3.1
80CWL-6	30	67.7	2950		2.8		Y160L-2H	18.5	224
	60	60			2.3	14.21
	72	54.4			2.7
80CWL-5.5	30	77.3	2950		2.6		Y180M-2H	22	260
	60	75			2.6	17.26
	72	73			2.8
80CWL-5.5A	28.4	69.4	2950		2.6		Y160L-2H	18.5	260
	56.8	67.3			2.6	14.8
	68	65.5			2.8
100CWL-18	50	24.4	2950		3.6		Y160M1-2H	11	196
	100	21			4.3	7.33
	120	17.8			4.9
100CWL-18A	48.2	22.7	2900		3.6		Y132S2-2H	7.5	154
	96.4	19.5			4.3	6.82
	115.6	16.5			4.9
100CWL-14	50	33.7		2950	2.5		Y160M2-2H	15	213
	100	30			3.3	10.47
	120	27.5			3.8
100CWL-14A	47.6	30.5		2950	2.5		Y160M1-2H	11	213
	95.2	27.1			3.3	9.24
	114	24.9			3.8
100CWL-11	50	46.8		2950	2.5		Y160L-2H	18.5	242
	100	42			3.2	14.85
	120	37.5			3.7
100CWL-11A	46.8	41		2950	2.5		Y160M2-2H	15	242
	93.6	36.9			3.2	12.54
	112	32.9			3.7
100CWL-8	50	64.8		2950	3.0		Y200L1-2H	30	255
	100	60			3.7	21.79
	120	57			4.5

Type	(50Hz 3 φ 380v) main technical parameter					Motor type power Kw		Weight Kg
Type	Capacity m3/h	Head m	Speed r/min	NPSHr m	Shaft power kW	Motor type power Kw		Weight Kg
100CWL-8A	47	57.5	2950	3.0		Y180M-2H	22	255
	94	53.2		3.7	18.66
	112.8	50.6		4.5
100CWL-6	50	97	2950	2.6		Y225M-2H	45	430
	100	85		3.7	32.15
	120	71.5		4.6
100CWL-6A	47	86	2950	2.6		Y200L2-2H	37	350
	94	75.4		3.7	27.6
	112.8	63.4		4.6
150CWL-16	80	15.6	1480	2.8		Y160M-4H	11	250
	160	13		3.0	6.75
	192	11.2		3.4
150CWL-12	160	20	1480	4	11	Y160L-4H	15
150CWL-9	160	30	1480	4	16.97	Y180L-4H	22
150CWL-6	160	45	1480	5	26.85	Y225S-4H	37
200CWL-21	280	13	1480	4	12.08	Y160L-4H	15
200CWL-15	280	20	1480	4	18.59	Y180L-4H	22
200CWL-9	280	45	1480	5	43.42	Y250M-4H	55
200CWL-12	150	32.5	1480	1.9		Y225S-4H	37	475
	300	30		3.1	31.4
	360	28.3		3.7
200CWL-18	200	23.8	1480	2.3		Y225S-4H	37	550
	400	21		4.0	27.23
	480	16.8		4.5
250CWL-29	500	13	1480	5	21.32	Y200L-4H	30
250CWL-21	250	23.2	1480			Y225M-4H	45
	500	20		4.5	32.8
	600	15.5
250CWL-15	500	30	1480	5	49.2	Y250M-4H	55
250CWL-11	500	45	1480	6	73.8	Y280M-4H	90
300CWL-35	792	8	980	4.5		Y200L2-6H	22
350CWL-40	900	9.4	980	4.5	27.1	Y225M-6H	30
400CWL-30	1400	9.5	730	4	43	Y315S2-8H	55
600CWL-31	3400	23	980	7.5	250.4	Y355L2-6H	280

Performance parameters when power frequency is 60Hz

Type	(60Hz 3 φ 440v) main technical parameter					Motor type power Kw		Weight Kg
Type	Capacity m3/h	Head m	Speed r/min	NPSHr m	Shaft power kW	Motor type power Kw		Weight Kg
32CWL1-2	6	85	3500	4	5.8	Y132S2-2H	7.5
32CWL1-4	2.4	29	3500	5.6		Y90L-2H	2.2	72
	4.8	30.2		5.4	0.81
	5.7	29.5		5.4
32CWL1-3	2.4	44.6	3500	4.0		Y90L-2H	2.2	75
	4.8	43.2		3.3	0.81
	5.7	42		3.7
40CWL1-5	4.8	31.9	3500	5.8		Y90L-2H	2.2	60
	9.6	30.2		4.0	1.46
	11.5	28.8		4.9
40CWL1-4	4.8	46.5	3500	4.8		Y100L-2H	3	77
	9.6	43.2		3.5	2.26
	11.5	41		3.3
40CWL1-3	4.8	61.5	3500	4.0		Y132S1-2H	5.5	142
	9.6	60		3.3	3.64
	11.5	59		3.9
50CWL1-6	7.2	31.8	3500	3.7		Y100L-2H	3	75
	14.4	30.2		2.7	2
	17.3	28.5		4.0
50CWL1-4.5	7.2	45	3500	8.0		Y112M-2H	4	97
	14.4	43.2		4.8	3.08
	17.3	40		4.4
50CWL1-4	7.2	62.5	3500	3.7		Y132S1-2H	5.5	126
	14.4	60.4		4.5	4.74
	17.3	58		5.5
50CWL1-8	12.6	32.5	3500	2.9		Y112M-2H	4	90
	25.2	30.2		2.9	3.29
	30.2	27.4		3.5
50CWL1-7	12.6	48	3500	2.9		Y132S1-2H	5.5	120
	25.2	43.2		3.2	4.71
	30.2	38.5		3.9
50CWL1-5	12.6	65	3550	6.6		Y160M1-2H	11	130
	25.2	60.4		3.7	7.03
	30.2	56.5		4.1
50CWL1-3.5	12.6	92	3550	2.4		Y160M2-2H	15	192
	25.2	86		3.1	10.73
	30.2	82		3.9
65CWL1-11	21	34	3500	4.7		Y132S2-2H	7.5	126
	42	30.2		5.0	4.8
	50.4	27.8		5.3
65CWL1-8	21	47	3550	2.9		Y160M1-2H	11	175
	42	43.2		3.2	7.06
	50.4	41.5		3.6
65CWL1-6	21	65	3550	3.7		Y160M2-2H	15	189
	42	60.4		3.3	10.31
	50.4	56		3.7
65CWL1-5	22	92	3550	5.2		Y180M-2H	22
	43	86		5.5	16.0
	50	82		5.8

Type	(60Hz 3 φ 440v) main technical parameter					Motor type power Kw		Weight Kg
Type	Capacity m3/h	Head m	speed r/min	NPsHr m	shaft power kW	Motor type power Kw		Weight Kg
80CWL1-14	36	33	3550	4.9		Y160M1-2H	11	180
	72	30.2		4.9	7.59
	86.4	28		5.0
80CWL1-14A	33.6	29	3550	4.9		Y160M1-2H	11	180
	67.2	26.6		4.9	6.41
	80.6	25.2		5.0
80CWL1-11	36	49	3550	3.0		Y160M2-2H	15	190
	72	43.2		3.9	11.29
	86.4	39		4.8
80CWL1-11A	34.2	44.5	3550	3.0		Y160M2-2H	15	190
	68.4	38.8		3.9	10.19
	82	35.2		4.8
80CWL1-8	36	64.5	3550	5.0		Y180M-2H	22	240
	72	60.4		4.3	16.22
	86.4	55.5		4.1
80CWL1-8A	33.6	57.5	3550	5.0		Y160L-2H	18.5	、240
	67.2	54		4.3	14.64
	80.5	49.5		4.1
80CWL1-6	36	97	3580	3.7		Y200L1-2H	30	350
	72	86		3.1	24.4
	86.4	78		3.6
80CWL1-6A	34	87.5	3580	3.7		Y200L1-2H	30	340
	68	77.7		3.1	22.02
	81.6	70		3.6
80CWL1-5.5	36	111.3	3580	3.5		Y200L2-2H	37	380
	72	108		3.5	29.83
	86.4	105		3.7
80CWL1-5.5A	34	100	3580	3.5		Y200L1-2H	30	370
	68	97.2		3.5	26.61
	82	94		3.7
100CWL1-18	60	35	3550	4.8		Y160M2-2H	15	204
	120	30.2		5.7	12.65
	144	25.5		6.5
100CWL1-18A	57.8	32.6	3550	4.8		Y160M2-2H	15	204
	115.6	28		5.7	11.73
	138.5	23.5		6.5
100CWL1-14	60	48.5	3550	3.3		Y180M-2H	22	252
	120	43.2		4.5	18.1
	144	39.5		5.0
100CWL1-14A	57	43.9	3550	3.3		Y160L-2H	18.5	252
	114	39		4.5	16.33
	137	35.8		5.0
100CWL1-11	60	67.3	3580	3.3		Y200L2-2H	37	365
	120	60.4		4.3	25.63
	144	54		4.9
100CWL1-11	56.1	59	3580	3.3		Y200L1-2H	30	365
	112.2	53.1		4.3	22.41
	134.6	47.3		4.9

Type	(60Hz 3 φ440v) Main technical parameter					Motor type & power kW		Weight kg
Type	Capacity m3/h	Head m	Speed r/min	NPSHR m	Shaft power kW	Motor type & power kW		Weight kg
100CWL1-8	60	93	3580	4.0		Y250M-2H	55
	120	86.4		4.9	37.65
	144	82		6.0
100CWL1-8A	56.4	82	3580	4.0		Y200L2-2H	37
	112.8	76.5		4.9	33.26
	135	72.5		6.0
100CWL1-6	60	139	3580	3.5		Y280S-2H	75
	120	122		4.9	55.4
	144	102		6.1
100CWL1-6A	56.4	123	3580	3.5		Y250M-2H	55
	112.8	108		4.9	47.39
	135	91.2		6.1
150CWL1-16	96	22.4	1780	3.7		Y160L-4H	15	312
	192	18.7		4.0	11.64
	230	16.1		4.5
150CWL1-12	190	29	1780	4	18.99	Y180L-4H	22
150CWL1-9	190	44	1780	4	29.56	Y225S-4H	37
150CWL1-6	190	65	1780	5	46.05	Y250M-4H	55
200CWL1-21	335	19	1780	5	21.13	Y200L-4H	30
200CWL1-15	335	29	1780	5	32.25	Y225S-4H	37
200CWL1-12	180	46.8	1780	3.5		Y250M-4H	55	530
	360	43.2		4.1	51.13
	432	40.5		4.9
200CWL1-18	240	34.2	1780	3.1		Y250M-4H	55	510
	480	30.2		3.3	47
	576	24.1		3.6
200CWL1-9	335	65	1780	6	75.03	Y280M-4H	90
250CWL1-29	600	19	1780	7	37.39	Y225M-4H	45
250CWL1-21	300	33	1780			Y280S-4H	75
	600	28.5		5.5	56.1
	720	22
250CWL1-15	600	44	1780	7	86.59	Y315S-4H	110
250CWL1-11	600	65	1780	7	127.91	Y315L1-4H	160
300CWL1-35	950	11.5	1190	6.3		Y280S-6H	45
350CWL1-40	1080	13.5	1190	6.3	46.83	Y280M-6H	55
400CWL1-30	1680	13.6	890	5.6	60.2	Y315M-8H	75
600CWL1-31	4080	33.1	1190	10.5	432.69		560
