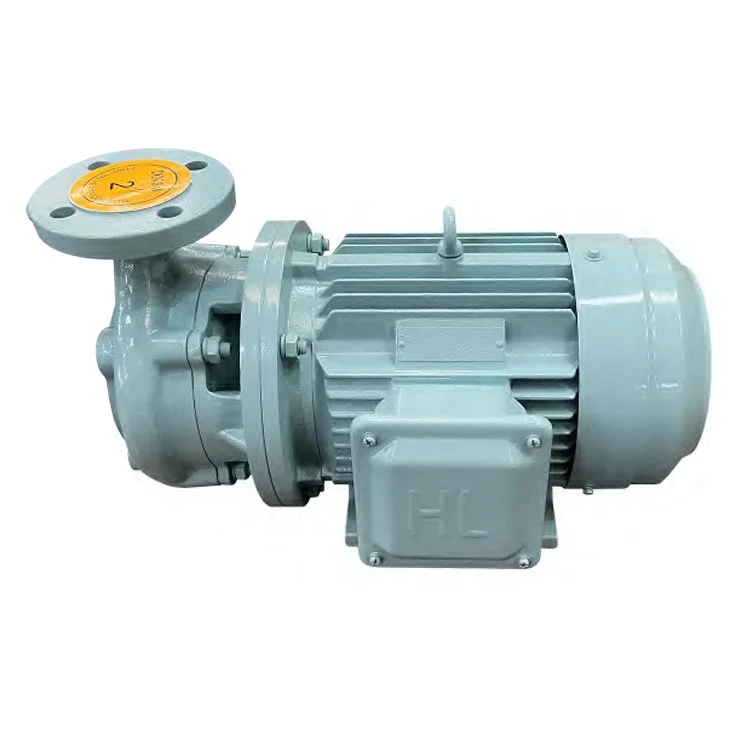

CWF Marine Horizontal Crushing Pump

Cagon is a professional supplier of CWF marine horizontal crushing pump. We have reliable research and development center to support the products design, manufacture and finally deliver to worldwide. We always regard the product quality as the key point, and will offer you technical support.

Send Inquiry

Product Description

The CWF marine horizontal crushing pump is an open-impeller centrifugal discharge pump. It pulverizes and transfers soft sewage pollutants under 85℃, like paper, food waste, dirt residues, sludge, excrement, etc. After circular pulverization, the maximum diameter of solid particles is within 5mm. It can also pulverize the low-temperature coagulate of heavy oil, facilitating injection.

Main technical parameter:

Performance and parameter table for the power supply frequency of 50Hz 3 φ 380v:

Type	(50Hz 3 φ 380v) main technical parameter					Motor type power Kw		Weight Kg
Type	Capacity m3/h	Head m	Speed r/min	NPSHr m	Shaft power kW	Motor type power Kw		Weight Kg
0.5CWF-10	5	10	2900	3.5	0.65	Y802-2H	1.1
0.5CWF-10I	2	15	2900			Y802-2H	1.1
0.5CWF-15	5	15	2900			Y90S-2H	1.5
0.5CWF-15A	5	13	2900			Y802-2H	1.1
0.5CWF-20	5	20	2900			Y90L-2H	2.2
0.5CWF-20A	5	18	2900			Y90S-2H	1.5
0.5CWF-25	5	25	2900			Y90L-2H	2.2
0.5CWF-25DS	5	25	2900			Y90L-2H	2.2
0.5CWF-30	5	30	2900			Y112M-2H	4
1CWF-10	10	10	2900			Y90S-2H	1.5
1CWF-15	10	15	2900			Y90L-2H	2.2
1CWF-20	10	20	2900			Y100L-2H	3
1CWF-25	10	25	2900	3.8	2.3	Y112M-2H	4
1CWF-30	10	30	2900			Y112M-2H	4
1.5CWF-15	15	15	2900			Y100L-2H	3
1.5CWF-20	15	20	2900			Y112M-2H	4
1.5CWF-25	15	25	2900			Y112M-2H	4
1.5CWF-30	15	30	2900			Y132S1-2H	5.5
1.5CWF-35	15	35	2900	6		Y132S2-2H	7.5
2CWF-15	20	15	2900			Y100L-2H	3
2CWF-20	20	20	2900			Y112M-2H	4
2CWF-25	20	25	2900			Y132S1-2H	5.5
2CWF-30	20	30	2900			Y132S2-2H	7.5
3CWF-12	25	12	2900	4		Y112M-2H	4
3CWF-30	30	30	2950	4		Y160M1-2H	11

Performance and parameter table for the power supply frequency of 60Hz 3 φ 440v

Type	(60Hz 3 φ 440v) main technical parameter					Motor type power Kw		Weight Kg
Type	Capacity m3/h	Head m	Speed r/min	NPSHr m	Shaft power kW	Motor type power Kw		Weight Kg
0.5CWF1-10	6	14.5	3500			Y90L-2H	2.2
0.5CWF1-10I	2.4	21.5	3500			Y90L-2H	2.2
0.5CWF1-15	6	21.5	3500			Y100L-2H	3
0.5CWF1-15A	6	18.5	3500			Y90L-2H	2.2
0.5CWF1-20	6	29	3500			Y100L-2H	3
0.5CWF1-20A	6	26	3500			Y100L-2H	3
0.5CWF1-25	6	36	3500			Y112M-2H	4
0.5CWF1-30	6	43	3500			Y132S1-2H	5.5
1CWF1-10	12	14.5	3500			Y100L-2H	3
1CWF1-15	12	21.5	3500			Y112M-2H	4
1CWF1-20	12	29	3500			Y132S1-2H	5.5
1CWF1-25	12	36	3500			Y132S1-2H	5.5
1CWF1-30	12	43	3550			Y160M1-2H	11
1.5CWF1-35	18	52	3550			Y160M1-2H	11
1.5CWF1-15	18	21.5	3500			Y132S1-2H	5.5
1.5CWF1-20	18	29	3500			Y132S2-2H	7.5
1.5CWF1-25	18	36	3550			Y160M1-2H	11
1.5CWF1-30	18	43	3550			Y160M1-2H	11
2CWF1-15	24	21.5	3500			Y132S1-2H	5.5
2CWF1-20	24	26	3500			Y132S2-2H	7.5
2CWF1-25	24	36	3550			Y160M1-2H	11
2CWF1-30	24	43	3550			Y160M2-2H	15
3CWF1-12	30	17.3	3500	5.6		Y132S2-2H	7.5
3CWF1-30	36	43	3550			Y160L-2H	18.5
