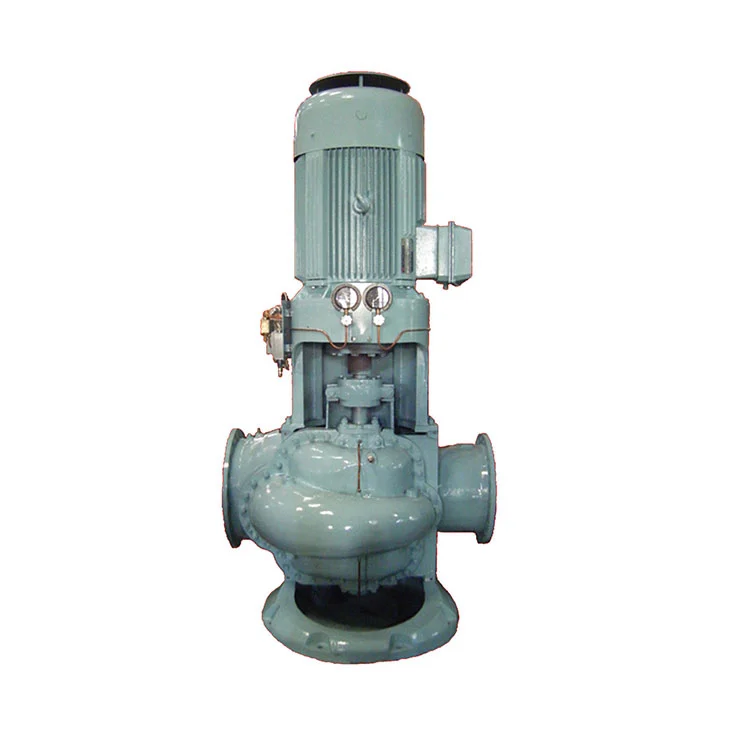

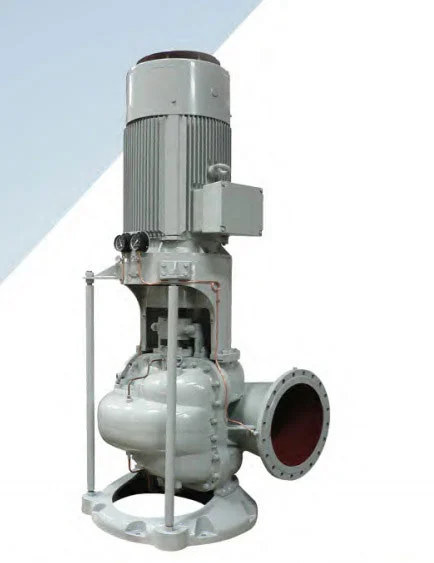

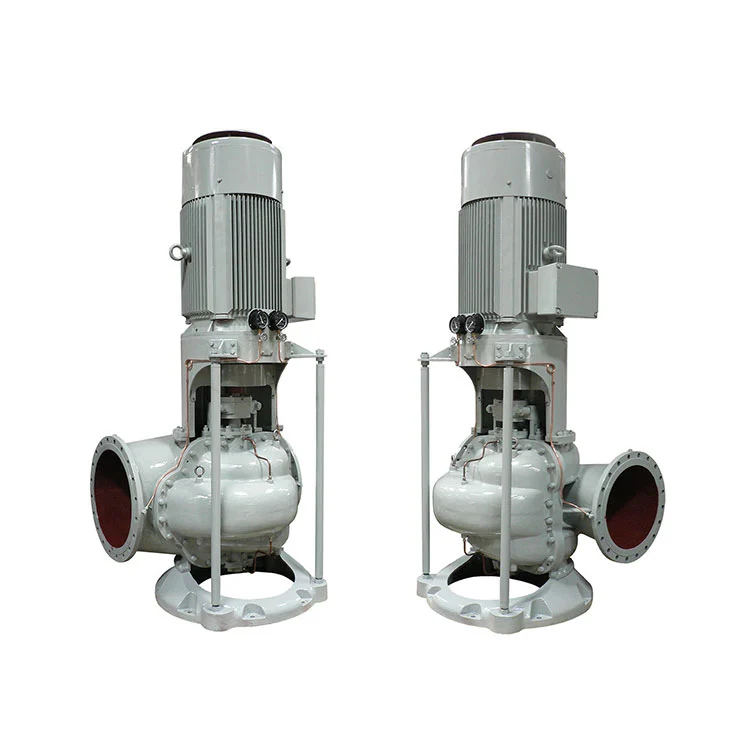

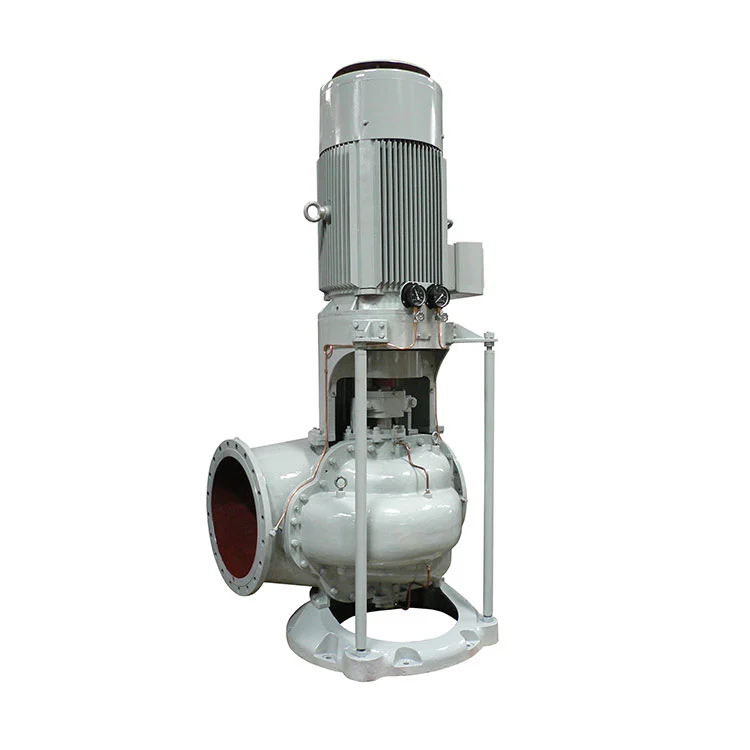

The temperature of the transported medium should not exceed 80℃. CSL marine vertical double-suction middle-open centrifugal pump is suitable for water supply and drainage in factories, mines, cities, and power stations, as well as for agricultural flood control and irrigation projects. Optionally, an AELC self-priming device can be installed at an additional cost upon users' request to enable self-priming.

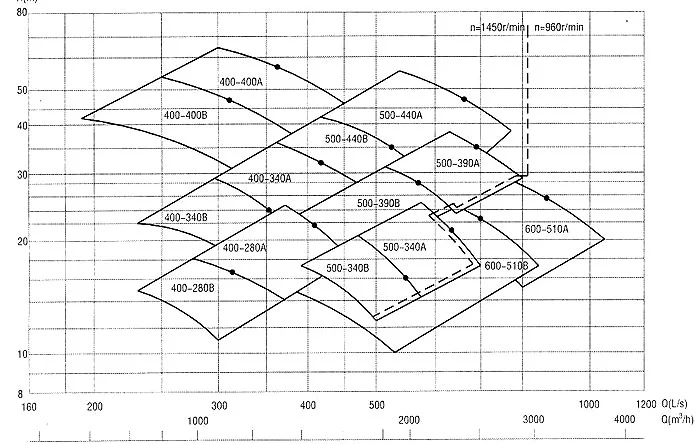

Model series at 50Hz Rotating speed n=1480r/min H(m)

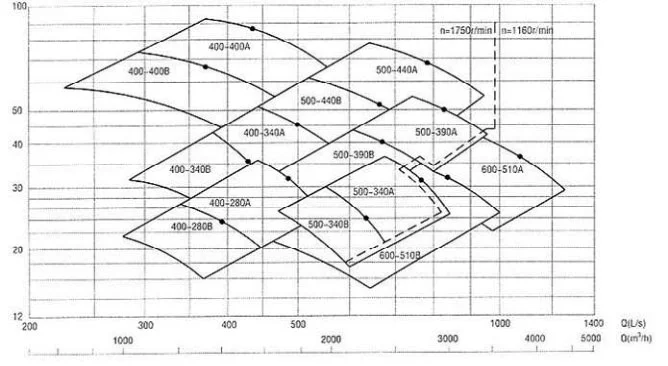

Model series at 60Hz Rotating speed n=1780r/min H(m)
Performance parameters when power frequency is 50Hz
| Type | (50Hz 3 φ 380v) main technical parameter | Motor type power Kw |
weight Kg |
|||||
|
Capacity m3/h |
Head m |
Speed r/min |
NPSHr m |
Shaft power kw |
||||
| CSL300-350A | 700 | 35 | 1480 | 3.5 | Y315S-4H | 110 | ||
| CSL400-280B | 1118 | 16 | 1480 | 5.1 | 63.3 | Y280S-4H | 75 | |
| CSL400-280A | 1450 | 22 | 1480 | 7 | 108.6 | Y315M-4H | 132 | |
| CSL400-340B | 1284 | 23.5 | 1480 | 5.5 | 102.7 | Y315M-4H | 132 | |
| CSL400-340A | 1491 | 31.5 | 1480 | 6.8 | 156.0 | Y315L2-4H | 200 | |
| CSL400-400B | 1118 | 47.4 | 1480 | 5.5 | 171.9 | Y315L2-4H | 200 | |
| CSL400-400A | 1284 | 58 | 1480 | 6 | 238.6 | Y355L1-4H | 280 | |
| CSL400-420 | 1200 | 30 | 1190 | 3.5 | Y355M1-6H | 160 | ||
| CSL500-340X | 1700 | 14 | 1480 | 7 | 85.3 | Y315S-4H | 110 | |
| CSL500-340B | 1906 | 16.5 | 1480 | 7 | 109.8 | Y315M-4H | 132 | |
| CSL500-340A | 2237 | 21 | 1480 | 7 | 164 | Y315L2-4H | 200 | |
| CSL500-390B | 2028 | 27.5 | 1480 | 8.6 | 180.8 | Y315L2-4H | 200 | |
| CSL500-390A | 2485 | 34 | 1480 | 6.7 | 277.2 | Y355L2-4H | 315 | |
| CSL500-440B | 1990 | 34 | 1480 | 6.3 | 219.3 | Y355M2-4H | 250 | |
| CSL500-440A | 2485 | 47 | 1480 | 7.2 | 349.4 | Y355M1-4H | 220 | |
| CSL600-420A | 2250 | 15 | 980 | 6.5 | 112 | Y315L2-6H | 132 | |
| CSL600-510B | 2473 | 22 | 980 | 4.7 | 172.3 | Y355L1-6H | 315 | |
| CSL600-510A | 3146 | 24.7 | 980 | 4.7 | 249 | 280 | ||
Performance parameters when power frequency is 60Hz
| Type | (60Hz 3 φ 440v) main technical parameter | Motor type power Kw |
weight Kg |
|||||
|
Capacity m3/h |
Head m |
Speed r/min |
NPSHr m |
Shaft power Kw |
||||
| CSL1300-350A | 840 | 50 | 1780 | 5 | 112.2 | Y315 L1-4H | 160 | |
| CSL1400-280B | 1350 | 23.5 | 1780 | 7.2 | 112.2 | Y315M-4H | 132 | |
| CSL1400-280A | 1750 | 32 | 1780 | 10 | 190.7 | Y355M1-4H | 220 | |
| CSL1400-340B | 1550 | 34.5 | 1780 | 7.8 | 182 | Y355M1-4H | 220 | |
| CSL1400-340A | 1800 | 46 | 1780 | 9.7 | 275 | Y355L2-4H | ||
| CSL1400-400B | 1350 | 69 | 1780 | 7.8 | 302 | 360 | ||
| CSL1400-400A | 1550 | 84 | 1780 | 8.5 | 417.1 | 460 | ||
| CSL1500-340X | 2040 | 20 | 1780 | 10 | 146.3 | Y315L2-4H | 200 | |
| CSL1500-340B | 2300 | 24 | 1780 | 10 | 192.7 | Y355M2-4H | 250 | |
| CSL1500-340A | 2700 | 31 | 1780 | 10 | 292.2 | 360 | ||
| CSL1500-390B | 2448 | 40 | 1780 | 12.3 | 317.5 | 360 | ||
| CSL1500-390A | 3000 | 50 | 1780 | 9.5 | 492.2 | 550 | ||
| CSL1500-440B | 2400 | 50 | 1780 | 9 | 389.1 | 460 | ||
| CSL1500-440A | 2800 | 68 | 1780 | 10.2 | 610 | 680 | ||
| CSL1600-420A | 2700 | 22 | 1190 | 8.5 | 198 | Y355L1-6H | 250 | 3470 |
| CSL1600-510B | 2988 | 32 | 1190 | 6.6 | 302.8 | 360 | ||
| CSL1600-510A | 3800 | 36 | 1190 | 6.7 | 438.3 | 500 | ||
