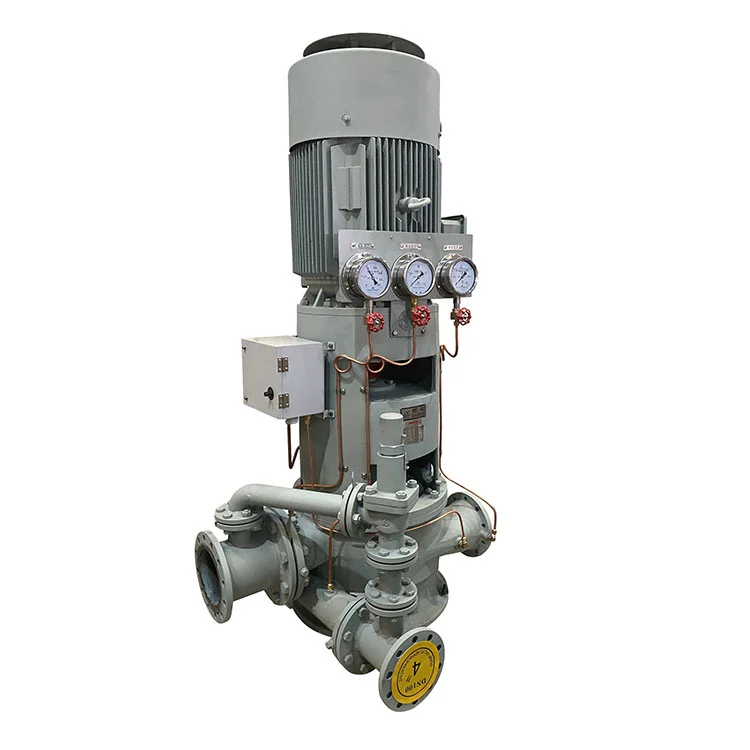

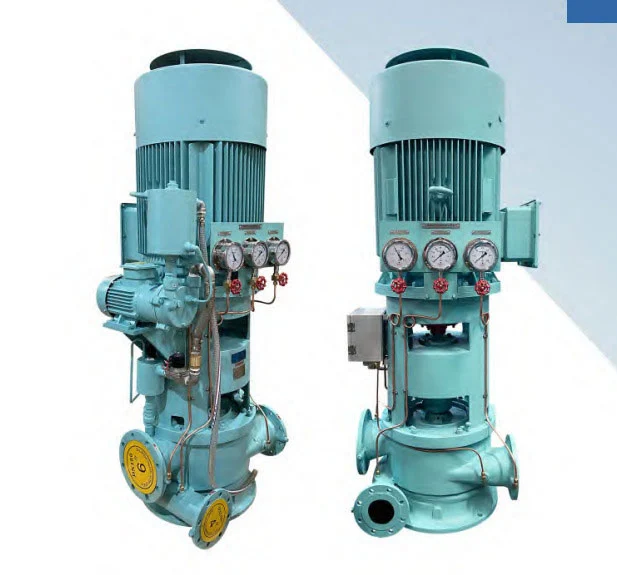

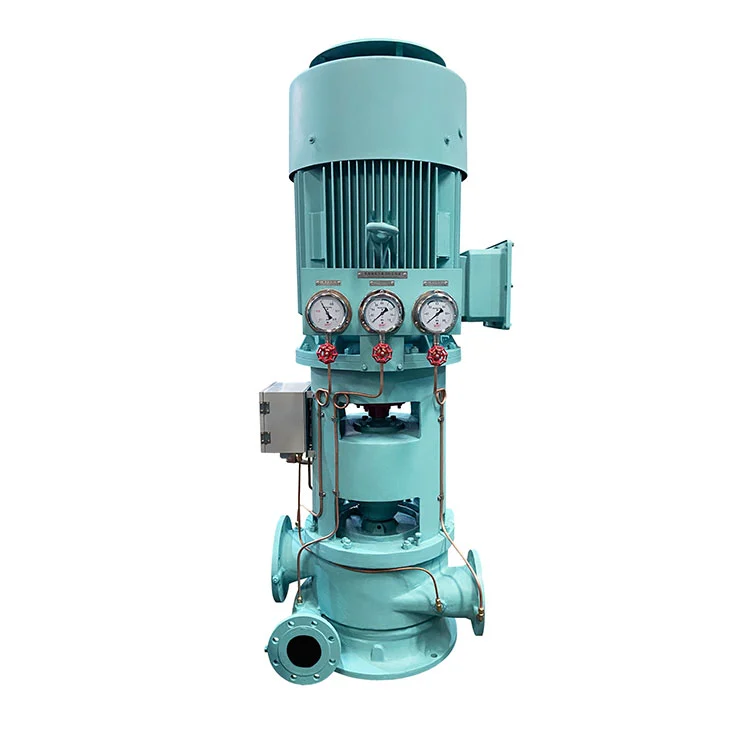

Distinct from common double-stage pumps, the CLN marine vertical double-stage double-outlet centrifugal pump has two stages. Besides the second-stage outlet, there's a manifold outlet at the first stage. As a general-purpose pump, it's highly suitable for ships and is typically used under the following conditions:
Performance parameters when power frequency is 50Hz
| Type | (50Hz 3 φ 380v) main technical parameter | Motor type power Kw |
weight Kg |
||||
|
Capacity m3/h |
Head m |
Speed r/min |
NPSHr m |
||||
| CLN80-340/2A | 51/51 | 29.5/65 | 1480 | 2.8 | Y180L-4H | 22 | 510 |
| CLN80-340/2C | 116/58 | 24/61 | 1480 | 3.4 | Y200L-4H | 30 | 525 |
| CLN80-340/2D | 112/54 | 15/51.5 | 1480 | 4.3 | Y180M-4H | 18.5 | 520 |
| CLN80-340/2E | 141/62 | 25.5/59 | 1480 | 4.2 | Y200L-4H | 30 | 530 |
| CLN100-380/2A | 95/91 | 36.5/86 | 1480 | 4.1 | Y225M-4H | 45 | 786 |
| CLN100-380/2C | 149/95 | 27.5/77 | 1480 | 3.7 | Y225M-4H | 45 | 781 |
| CLN100-380/2D | 141/95 | 16.5/60.5 | 1480 | 3.6 | Y225S-4H | 37 | 740 |
| CLN100-380/2E | 199/99 | 23.5/69.5 | 1480 | 4.2 | Y225M-4H | 45 | 775 |
| CLN125-380/2A | 124/120 | 33.5/77 | 1480 | 4.0 | Y250M-4H | 55 | 915 |
| CLN125-380/2C | 215/120 | 23.5/65 | 1480 | 4.2 | Y225M-4H | 45 | 828 |
| CLN125-380/2D | 199/108 | 17/60.5 | 1480 | 4.2 | Y225S-4H | 37 | 795 |
| CLN125-380/2E | 257/124 | 24/68.5 | 1480 | 3.5 | Y250M-4H | 55 | 925 |
| CLN125-380/2F | 190/80 | 40/80 | 1480 | 4.2 | Y280S-4H | 75 | |
| CLN150-380/2A | 199/182 | 33/79 | 1480 | 5.1 | Y280S-4H | 75 | 1082 |
| CLN150-380/2C | 348/174 | 22/71.5 | 1480 | 4.9 | Y280S-4H | 75 | 1078 |
| CLN150-380/2D | 265/166 | 14.5/62 | 1480 | 4.2 | Y250M-4H | 55 | 902 |
| CLN150-380/2E | 389/182 | 22/70 | 1480 | 4.6 | Y280S-4H | 75 | 1080 |
| CLN150-380/2F | 400/200 | 40/90 | 1480 | 5 | Y315S-4H | 110 | |
| CLN150-380/2G | 210/25 | 170/110 | 1480 | 5 | Y315S-4H | 110 | |
Performance parameters when power frequency is 60Hz
| Type | (50Hz 3 φ 380v) main technical parameter | Motor type power Kw |
weight Kg |
||||
|
Capacity m3/h |
Head m |
Speed r/min |
NPSHr m |
||||
| CLN80-340/2A | 60/62 | 43/95 | 1780 | 3.2 | Y225S-4H | 37 | 710 |
| CLN80-340/2C | 140/70 | 35/89 | 1780 | 4.0 | Y225S-4H | 37 | 710 |
| CLN80-340/2D | 135/65 | 22/75 | 1780 | 5.3 | Y200L-4H | 30 | 640 |
| CLN80-340/2E | 170/75 | 37/86 | 1780 | 5.2 | Y225S-4H | 37 | 710 |
| CLN100-380/2A | 115/110 | 53/125 | 1780 | 5.1 | Y280S-4H | 75 | 970 |
| CLN100-380/2C | 180/115 | 40/112 | 1780 | 4.5 | Y280S-4H | 75 | 970 |
| CLN100-380/2D | 170/115 | 24/88 | 1780 | 4.4 | Y250M-4H | 55 | 885 |
| CLN100-380/2E | 240/120 | 34/101 | 1780 | 5.2 | Y280S-4H | 75 | 970 |
| CLN125-380/2A | 150/145 | 49/112 | 1780 | 5 | Y280M-4H | 90 | 1050 |
| CLN125-380/2C | 260/145 | 34/95 | 1780 | 5.2 | Y280S-4H | 75 | 1010 |
| CLN125-380/2D | 240/130 | 25/88 | 1780 | 5.2 | Y280S-4H | 75 | 1010 |
| CLN125-380/2E | 310/150 | 35/100 | 1780 | 4.2 | Y280M-4H | 90 | 1050 |
| CLN125-380/2F | 228/96 | 56/113 | 1780 | 5.2 | Y315S-4H | 110 | |
| CLN150-380/2A | 240/220 | 48/115 | 1780 | 6.6 | Y315M-4H | 132 | |
| CLN150-380/2C | 420/210 | 32/104 | 1780 | 6.2 | Y315M-4H | 132 | |
| CLN150-380/2D | 320/200 | 21/90 | 1780 | 6 | Y280M-4H | 90 | 1130 |
| CLN150-380/2E | 470/220 | 32/102 | 1780 | 5.8 | Y315S-4H | 110 | |
| CLN150-380/2F | 480/240 | 58/130 | 1780 | 7 | Y315L2-4H | 200 | |
| CLN150-380/2G | 240/204 | 35/156 | 1780 | 6 | Y315L1-4H | 185 | |
