CLF Type Marine Self-Suction Vertical Crushing Pump
  • CLF Type Marine Self-Suction Vertical Crushing PumpCLF Type Marine Self-Suction Vertical Crushing Pump

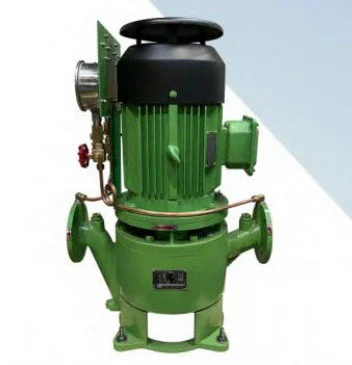

CLF Type Marine Self-Suction Vertical Crushing Pump

CLF type marine self-suction vertical crushing pump is driven by a marine motor, designed and manufactured by Cagon. It combines self-suction, cutting, and non-clogging drainage functions. It can cut long fibers, paper belts, and other foreign substances in sewage into pieces before drainage. Thanks to the unique design of the pump body and impeller flow channel, it has self-suction capabilities, similar to a general clear-water pump, eliminating the need for a base valve.

Widely applied in light industry, papermaking, textile, food, chemicals, power industry, mining, boats, urban sewage drainage, and aquatic culture, the CLF type marine self-suction vertical crushing pump is currently the most ideal pump in China for transporting media with solid particles, fibers, pulps, and mixed suspensions.

CLF Type Marine Self-Suction Vertical Crushing Pump


Main technical parameter:

Type Capacity
m3/h
Head
m
Speed r/min NPSHR
m
Motor type & power kw weight
kg
50CLF-3 10 40 2900 2.8 Y132S1-2H 5.5 220
50CLF-3A 10 30 2900 2.8 Y112M-2H 4 182
50CLF-3Z 10 40 2900 4 Y132S1-2H 5.5


CLF Type Marine Self-Suction Vertical Crushing Pump
