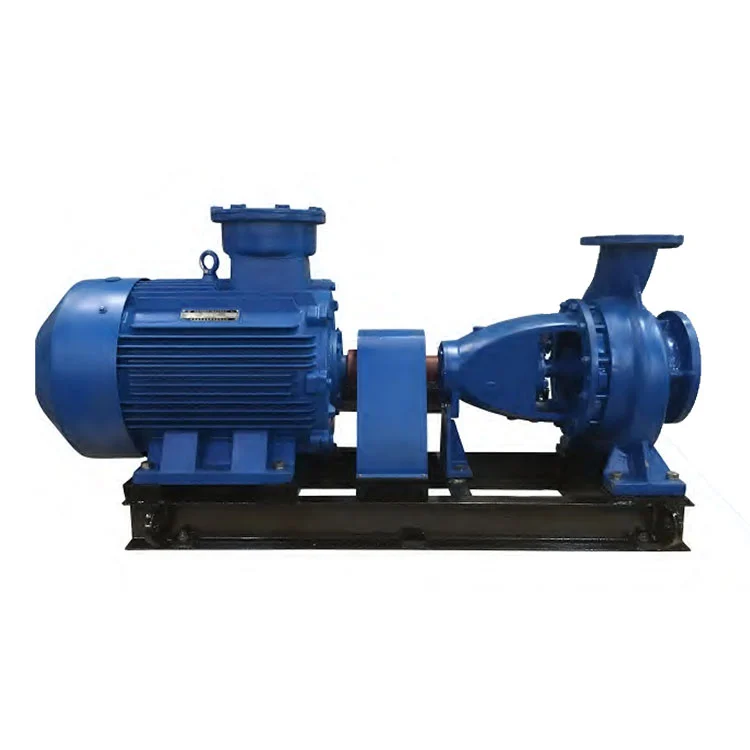

CIS Marine Horizontal Centrifugal Pump

CIS marine horizontal centrifugal pump belongs to the marine pump series products of Cagon, we are a reliable supplier of marine pump, and the factory has strong producing ability. We can offer you price list, and if you have customized needs or want to get one-step solution, you can contact us at any time.

Send Inquiry

Product Description

The CIS marine horizontal centrifugal pump is widely used for transferring freshwater and seawater. It is applicable to fire control, cooling, sanitation, industrial use, urban water supply and drainage, as well as agricultural and orchard irrigation.

Cis Marine Horizontal Centrifugal Pump

Main technical parameter:

Performance parameters when power frequency is 50Hz

Type	(50Hz 3 φ 380v) main technical parameter					Motor type power Kw		weight kg
Type	Capacity m3/h	Head m	Speed r/min	NPSHr m	Shaft power kw	Motor type power Kw		weight kg
CIS50-32-125	7.5	22	2900	2		Y90L-2H	2.2	33
	12.5	20		2	1.13
	15	18.5		2.5
CIS50-32-125A	6.7	17.6	2900	2		Y90S-2H	1.5	33
	11.2	16		2	0.82
	13.4	14.8		2.5
CIS50-32-160	7.5	34.3	2900	2		Y100L-2H	3	37
	12.5	32		2	2.02
	15	29.6		2.5
CIS50-32-160A	7.05	30.5	2900	2		Y90L-2H	2.2	37
	11.8	28.5		2	1.70
	14.1	26.3		2.5
CIS50-32-160B	6.48	25.6	2900	2		Y90S-2H	1.5	37
	10.8	23.8		2	1.35
	13	22		2.5
CIS50-32-200	7.5	52.5	2900	2		Y132S1-2H	5.5	52
	12.5	50		2	3.54
	15	48		2.5
CIS50-32-200A	7.2	48.3	2900	2		Y112M-2H	4	52
	12	46		2	3.1
	14.4	44.2		2.5
CIS50-32-200B	6.5	39.1	2900	2		Y100L-2H	3	52
	10.8	37.3		2	2.29
	12.9	35.8		2.5
CIS50-32-250	7.5	82	2950	2		Y160M1-2H	11	72
	12.5	80		2	7.17
	15	78.5		2.5
CIS50-32-250A	7	71.8	2900	2		Y132S2-2H	7.5	72
	11.7	70		2	5.87
	14	68.7		2.5
CIS50-32-250B	6.5	61.2	2900	2		Y132S1-2H	5.5	72
	10.8	59.7		2	4.63
	13	58.5		2.5
CIS65-50-125	15	21.8	2900	2		Y100L-2H	3	34
	25	20		2.5	1.97
	30	18.5		3
CIS65-50-125A	14.2	19.7	2900	2		Y90L-2H	2.2	34
	23.8	18.1		2.5	1.7
	28.5	16.7		3
CIS65-50-160	15	35	2900	2		Y132S1-2H	5.5	45
	25	32		2	3.35
	30	30		2.5
CIS65-50-160A	14	30.5	2900	2		Y112M-2H	4	45
	23.4	28		2	2.75
	28	26.2		2.5
CIS65-50-160B	13	26.3	2900	2		Y100L-2H	3	45
	21.7	24		2	2.2
	26	22.6		2.5
CIS65-40-200	15	53	2900	2		Y132S2-2H	7.5	58
	25	50		2	5.67
	30	47		2.5

Type	(50Hz 3 φ 380v) main technical parameter					Motor type power Kw		weight kg
Type	Capacity m3/h	Head m	Speed r/min	NPSHr m	Shaft power kw	Motor type power Kw		weight kg
CIS65-40-200A	14	46	2900	2		Y132S1-2H	5.5	58
	23.4	44		2	4.67
	28	41		2.5
CIS65-40-200B	12.6	37.3	2900	2		Y112M-2H	4	58
	21	35.3		2	3.36
	25.2	33.1		2.5
CIS65-40-250	15	82	2950	2		Y160M2-2H	15	76
	25	80		2	10.28
	30	78		2.5
CIS65-40-250A	14	71.8	2950	2		Y160M1-2H	11	76
	23.4	70		2	8.42
	28	68.3		2.5
CIS65-40-250B	12.6	57.8	2900	2		Y132S2-2H	7.5	76
	21	56		2	6.04
	25.2	53.2		2.5
CIS65-40-315	15	127	2950	2.5		Y200L1-2H	30	84
	25	125		2.5	21.3
	30	123		3
CIS65-40-315A	14.3	116	2950	2.5		Y180M-2H	22	84
	23.9	114		2.5	18.6
	28.6	112		3
CIS65-40-315B	13.6	104.5	2950	2.5		Y160L-2H	18.5	84
	22.7	103		2.5	15.92
	27.2	101		3
CIS65-40-315C	12.8	91.5	2950	2.5		Y160M2-2H	15	84
	21.4	90		2.5	13.1
	25.6	88.5		3
CIS80-65-125	30	22.5	2900	3		Y132S1-2H	5.5	47
	50	20		3	3.63
	60	18		3.5
CIS80-65-125A	27	18.2	2900	3		Y112M-2H	4	47
	45	15		3	2.96
	54	14.5		3.5
CIS80-65-160	30	36	2900	2.5		Y132S2-2H	7.5	52
	50	32		2.5	5.97
	60	29		3
CIS80-65-160A	28	31	2900	2.5		Y132S1-2H	5.5	52
	46.8	28		2.5	4.9
	56	25		3
CIS80-65-160B	25.2	25.4	2900	2.5		Y112M-2H	4	52
	42	22		2.5	3.49
	50.4	20		3
CIS80-50-200	30	53	2950	2.5		Y160M2-2H	15	60
	50	50		2.5	9.87
	60	47		3
CIS80-50-200A	28	46	2950	2.5		Y160M1-2H	11	60
	46.8	44		2.5	8.25
	56	41		3
CIS80-50-200B	26	39.7	2900	2.5		Y132S2-2H	7.5	60
	43.3	37.5		2.5	6.6
	52	35		3

Type	(50Hz 3 φ 380v) main technical parameter					Motor type power Kw		weight kg
Type	Capacity m3/h	Head m	Speed r/min	NPSHr m	Shaft power kw	Motor type power Kw		weight kg
CIS80-50-250	30	84	2950	2.5		Y180M-2H	22	97
	50	80		2.5	17.3
	60	75		3
CIS80-50-250A	28	73.5	2950	2.5		Y160L-2H	18.5	97
	46.8	70		2.5	14.6
	56	65.5		3
CIS80-50-250B	26	63	2950	2.5		Y160M2-2H	15	97
	43.3	60		2.5	11.8
	52	56		3
CIS80-50-315	30	128	2950	2.5		Y200L2-2H	37	108
	50	125		2.5	31.5
	60	123		3
CIS80-50-315A	28.6	116	2950	2.5		Y200L2-2H	37	108
	47.7	114		2.5	28
	57.2	112		3
CIS80-50-315B	27.2	105	2950	2.5		Y200L1-2H	30	108
	45.4	103		2.5	24.5
	54.5	101		3
CIS80-50-315C	25.2	90.6	2950	2.5		Y180M-2H	22	108
	42	88.5		2.5	19.7
	50.4	87.1		3
CIS100-80-125	60	24	2950	4		Y160M1-2H	11	49
	100	20		4.5	7
	120	16.5		5
CIS100-80-125A	56	20.4	2900	4		Y132S2-2H	7.5	49
	93.5	17		4.5	5.73
	112	14		5
CIS100-80-160	60	36	2950	3.5		Y160M2-2H	15	64
	100	32		4	11.2
	120	28		5
CIS100-80-160A	56	31.5	2950	3.5		Y160M1-2H	11	64
	93.5	28		4	9.27
	112	24.5		5
CIS100-80-160B	49.4	24.4	2900	3.5		Y132S2-2H	7.5	64
	82.4	21.7		4	6.4
	98.8	19		5
CIS100-65-200	60	54	2950	3		Y180M-2H	22	78
	100	50		3.6	17.9
	120	47		4.8
CIS100-65-200A	56	47.5	2950	3		Y160L-2H	18.5	78
	93.5	44		3.6	14.75
	112	41.3		4.8
CIS100-65-200B	52	41	2950	3		Y160M2-2H	15	78
	86.6	38		3.6	12
	104	35.5		4.8
CIS100-65-250	60	87	2950	3.5		Y200L2-2H	37	112
	100	80		3.8	30.3
	120	74.5		4.8
CIS100-65-250A	56	76	2950	3.5		Y200L1-2H	30	112
	93.5	70		3.8	24.8
	112	65		4.8

Type	(50Hz 3 φ 380v) main technical parameter					Motor type power Kw		weight kg
Type	Capacity m3/h	Head m	Speed r/min	NPSHr m	Shaft power kw	Motor type power Kw		weight kg
CIS100-65-250B	51.2	63.2	2950	3.5		Y180M-2H	22	112
	85.3	58.2		3.8	18.8
	102.4	54.1		4.8
CIS100-65-315	60	133	2950	3		Y280S-2H	75	128
	100	125		3.6	51.6
	120	118		4.2
CIS100-65-315A	57.3	121	2950	3		Y250M-2H	55	128
	95.5	114		3.6	45
	114.6	107		4.2
CIS100-65-315B	54.5	109	2950	3		Y225M-2H	45	128
	90.8	103		3.6	39.3
	109	97		4.2
CIS100-65-315C	51.5	97	2950	3		Y200L2-2H	37	128
	85.8	92		3.6	33.5
	103	86.8		4.2
CIS125-100-200	120	57.5	2950	4.5		Y225M-2H	45	92
	200	50		4.5	33.6
	240	45.8		5
CIS125-100-200A	112	50.6	2950	4.5		Y200L2-2H	37	92
	187	44		4.5	27.7
	224	38.9		5
CIS125-100-200B	99	39.1	2950	4.5		Y180M-2H	22	92
	165	34.1		4.5	19
	198	30.2		5
CIS125-100-250	120	87	2950	3.8		Y280S-2H	75	127
	200	80		4.2	55.9
	240	72		5
CIS125-100-250A	112	76	2950	3.8		Y250M-2H	55	127
	187	70		4.2	45.8
	224	62.5		5
CIS125-100-250B	104	65	2950	3.8		Y225M-2H	45	127
	173	60		4.2	36.8
	208	53.5		5
CIS125-100-250C	96	53	2950	3.8		Y200L2-2H	37	127
	160	49		4.2	29
	192	44		5
CIS125-100-315	120	132.5	2950	4		Y315S-2H	110	152
	200	125		4.5	90.8
	240	120		5
CIS125-100-315A	114.6	120	2950	4		Y315S-2H	110	152
	191	114		4.5	79.1
	229.2	109		5
CIS125-100-315B	109	109	2950	4		Y280M-2H	90	152
	181.6	103		4.5	68.9
	218	98.5		5
CIS125-100-315C	103	97.5	2950	4.5		Y280S-2H	75	152
	171.6	92		4.5	58.9
	206	88		5

Performance parameters when power frequency is 50HZ

Type	(50Hz 3 φ 380V) main technical parameter					Motor type power Kw		weight kg
Type	Capacity m3/h	Head m	Speed r/min	NPSHr m	Shaft power kw	Motor type power Kw		weight kg
CIS50-32-125	3.75	5.4	1450	2		Y801-4H	0.55	33
	6.3	5		2	0.16
	7.5	4.6		2.5
CIS50-32-160	3.75	8.5	1450	2		Y801-4H	0.55	37
	6.3	8		2	0.29
	7.5	7.4		2.5
CIS50-32-200	3.75	13.1	1450	2		Y802-4H	0.75	52
	6.3	12.5		2	0.51
	7.5	12		2.5
CIS50-32-200A	3.6	12	1450	2		Y801-4H	0.55	52
	6	11.5		2	0.45
	7.2	11		2.5
CIS50-32-250	3.75	20.5	1450	2		Y90L-4H	1.5	72
	6.3	20		2	1.07
	7.5	19.5		3
CIS50-32-250A	3.5	17.9	1450	2		Y90S-4H	1.1	72
	5.8	17.5		2	0.86
	7	17		3
CIS65-50-125	7.5	5.45	1450	2		Y801-4H	0.55	34
	12.5	5		2	0.27
	15	4.6		2.5
CIS65-50-160	7.5	8.8	1450	2		Y802-4H	0.75	45
	12.5	8		2	0.45
	15	7.2		2.5
CIS65-50-160A	7	7.6	1450	2		Y801-4H	0.55	45
	11.7	7		2	0.37
	14	6.3		2.5
CIS65-40-200	7.5	13.2	1450	2		Y90S-4H	1.1	58
	12.5	12.5		2	0.77
	15	11.8		2.5
CIS65-40-200A	7	11.5	1450	2		Y802-4H	0.75	58
	11.7	10.9		2	0.63
	14	10.3		2.5
CIS65-40-250	7.5	21	1450	2		Y100L1-4H	2.2	76
	12.5	20		2	1.42
	15	19.4		2.5
CIS65-40-250A	7	18.3	1450	2		Y90L-4H	1.5	76
	11.7	17.5		2	1.16
	14	16.9		2.5
CIS65-40-315	7.5	32.3	1450	2.5		Y112M-4H	4	84
	12.5	32		2.5	2.95
	15	31.7		3
CIS65-40-315A	7.1	29.5	1450	2.5		Y100L2-4H	3	84
	11.9	29.2		2.5	2.56
	14.3	28.9		3
CIS65-40-315B	6.8	26.5	1450	2.5		Y100L2-4H	3	84
	11.3	26.1		2.5	2.17
	13.6	25.9		3
CIS80-65-160	15	9	1450	2.5		Y90L-4H	1.5	52
	25	8		2.5	0.79
	30	7.2		3

Type	(50Hz 3 φ 380v) main technical parameter					Motor type power Kw		weight kg
Type	Capacity m3/h	Head m	Speed r/min	NPSHr m	Shaft power kw	Motor type power Kw		weight kg
CIS80-65-160A	14	7.8	1450	2.5		Y90S-4H	1.1	52
	23.4	7		2.5	0.65
	28	6.3		3
CIS80-50-200	15	13.2	1450	2.5		Y100L1-4H	2.2	60
	25	12.5		2.5	1.31
	30	11.8		3
CIS80-50-200A	14	11.5	1450	2.5		Y90L-4H	1.5	60
	23.4	11		2.5	1.1
	28	10.3		3
CIS80-50-250	15	21	1450	2.5		Y100L2-4H	3	97
	25	20		2.5	2.27
	30	18.8		3
CIS80-50-250A	14	18.3	1450	2.5		Y100L1-4H	2.2	97
	23.4	17.5		2.5	1.86
	28	16.4		3
CIS80-50-315	15	32.5	1450	2.5		Y132S-4H	5.5	108
	25	32		2.5	4.19
	30	31.5		3
CIS80-50-315A	14.3	29	1450	2.5		Y132S-4H	5.5	108
	23.8	28.5		2.5	3.72
	28.6	28		3
CIS80-50-315B	13.6	26.2	1450	2.5		Y112M-4H	4	108
	22.7	25.8		2.5	3.13
	27.2	25.3		2.5
CIS100-80-125	30	6	1450	2.5		Y90L-4H	1.5	49
	50	5		2.5	0.91
	60	4		3
CIS100-80-125A	28	4.8	1450	2.5		Y90S-4H	1.1	49
	46.8	4		2.5	0.74
	56	3.2		3
CIS100-80-160	30	9.2	1450	2.5		Y100L1-4H	2.2	64
	50	8		2.5	1.45
	60	6.8		3.5
CIS100-80-160A	28	8	1450	2		Y90L-4H	1.5	64
	46.8	7		2.5	1.21
	56	6		2.5
CIS100-65-200	30	13.5	1450	2		Y112M-4H	4	78
	50	12.5		2.0	2.33
	60	11.8		2.5
CIS100-65-200A	28	11.8	1450	2		Y100L2-4H	3	78
	46.8	11		2.0	1.92
	56	10.3		2.5
CIS100-65-200B	26	10	1450	2		Y100L1-4H	2.2	78
	43.3	9.5		2.0	1.56
	52	8.8		2.5
CIS100-65-250	30	21.3	1450	2		Y132S-4H	5.5	112
	50	20		2.0	4.0
	60	19		2.5
CIS100-65-250A	28	19	1450	2.0		Y112M-4H	4	112
	46.8	17.5		2.0	3.28
	56	16		2.5
CIS100-65-315	30	34	1480	2		Y160M-4H	11	128
	50	32		2.0	6.92
	60	30		2.5

Type	(50Hz 3 φ 380v) main technical parameter					Motor type power Kw		weight kg
Type	Capacity m3/h	Head m	Speed r/min	NPSHr m	Shaft power kw	Motor type power Kw		weight kg
CIS100-65-315A	28.6	20.8	1450	2		Y132M-4H	7.5	128
	47.7	28.5		2.0	6.0
	57.2	23.6		2.5
CIS100-65-315B	27.2	27.4	1450	2		Y132M-4H	7.5	128
	45.4	25.8		2.0	5.27
	54.4	24.1		2.5
CIS100-65-315C	25.7	24.9	1450	2		Y132S-4H	5.5	128
	42.9	23.5		2.0	4.5
	51.4	22		2.5
CIS125-100-200	60	14.5	1450	2.5		Y132M-4H	7.5	92
	100	12.5		2.5	4.48
	120	11		3
CIS125-100-200A	56	12.6	1450	2.5		Y132S-4H	5.5	92
	93.5	10.9		2.5	3.7
	112	9.6		3
CIS125-100-250	60	21.5	1480	2.5		Y160M-4H	11	127
	100	20		2.5	7.17
	120	18.5		3
CIS125-100-250A	56	18.7	1450	2.5		Y132M-4H	7.5	127
	93.5	17.5		2.5	5.87
	112	16.1		3
CIS125-100-250B	52	16	1450	2.5		Y132S-4H	5.5	127
	86.5	15		2.5	4.86
	104	13.8		3
CIS125-100-315	60	33.5	1480	2.5		Y160L-4H	1.5	152
	100	32		2.5	11.9
	120	30.5		3
CIS125-100-315A	57.3	29.8	1480	2.5		Y160L-4H	15	152
	95.5	28.5		2.5	10.33
	114.6	27.1		3
CIS125-100-315B	54.5	27.6	1480	2.5		Y160M-4H	11	152
	90.8	26.4		2.5	9.08
	109	25.1		3
CIS125-100-315C	51.5	24.0	1480	2.5		Y160M-4H	11	152
	85.8	23.5		2.5	7.8
	103	22.3		3
CIS125-100-400	60	52	1480	2.5		Y200L-4H	30	206
	100	50		2.5	21
	120	48.5		3
CIS125-100-400A	56.2	45.5	1480	2.5		Y180L-4H	22	206
	93.6	43.8		2.5	17.45
	112.3	42.4		3
CIS125-100-400B	52.8	39.9	1480	2.5		Y180M-4H	18.5	206
	88	38.4		2.5	14.66
	105.6	37.2		3
CIS125-100-400C	49.2	34.3	1480	2.5		Y160L-4H	15	206
	82	33		2.5	12.01
	98.4	32		3
CIS150-125-250	120	22.5	1480	3		Y180M-4H	18.5	150
	200	20		3.0	13.5
	240	17.5		3.5
CIS150-125-250A	112.2	19	1480	3		Y160L-4H	15	150
	187	17		3.0	11.12
	224.4	14.8		3.5

Type	(50Hz 3 φ 380v) main technical parameter					Motor type power Kw		weight kg
Type	Capacity m3/h	Head m	Speed r/min	NPSHr m	Shaft power kw	Motor type power Kw		weight kg
CIS150-125-250B	104	16.8	1480	3		Y160M-4H	11	150
	173	15		3.0	9.43
	208	13		3.5
CIS150-125-315	120	34	1480	2.5		Y200L-4H	30	161
	200	32		2.5	22.08
	240	29		3
CIS150-125-315A	112.2	29.7	1480	2.5		Y180L-4H	22	161
	187	28		2.5	18.05
	224.4	25.3		3
CIS150-125-315B	104	25.5	1480	2.5		Y180M-4H	18.5	161
	173	24		2.5	14.5
	208	21.7		3
CIS150-125-400	120	53	1480	2		Y225M-4H	45	246
	200	50		2.8	36.3
	240	46		3.5
CIS150-125-400A	112.2	46.3	1480	2		Y225S-4H	37	246
	187	43.7		2.8	29.68
	224.4	40.2		3.5
CIS150-125-400B	104	39.6	1480	2		Y200L-4H	30	246
	173	37.4		2.8	23.81
	208	34.4		3.5
CIS200-150-250	240	22.6	1480	3.6		Y225S-4H	37	175
	400	20		3.5	26.6
	460	17.2		4.9
CIS200-150-250A	224.4	19.7	1480	3.6		Y200L-4H	30	175
	374	17.4		4.6	21.61
	430	15		4.9
CIS200-150-250B	208	16.9	1480	3.6		Y180L-4H	22	175
	346	14.9		4.6	17.33
	398	12.8		4.9
CIS200-150-315	240	37	1480	3		Y250M-4H	55	252
	400	32		3.5	42.5
	460	28.5		4
CIS200-150-315A	224.4	32.3	1480	3		Y225M-4H	45	252
	374	28		3.5	35
	430	24.9		4
CIS200-150-315B	210	27.7	1480	3		Y225S-4H	37	252
	350	24		3.5	28.6
	403	21.3		4
CIS200-150-315C	197	23.9	1480	3		Y200L-4H	30	252
	327	20.7		3.5	23.4
	376	18.4		4
CIS200-150-400	240	55	1480	3		Y280M-4H	90	286
	400	50		3.8	67.2
	460	45		4.5
CIS200-150-400A	228	48.9	1480	3		Y280S-4H	75	286
	380	44.5		3.8	57.93
	437	40		4.5
CIS200-150-400B	204	39.6	1480	3		Y250M-4H	55	286
	340	36		3.8	41.67
	391	32.4		4.5
CIS200-150-400C	195	33.8	1480	3		Y225M-4H	45	286
	324	30.8		3.8	35.62
	373	27.7		4.5

Performance parameters when power frequency is 60 Hz

Type	(60Hz 3 φ 440V) main technical parameter					Motor type power Kw		weight kg
Type	Capacity m3/h	Head m	Speed r/min	NPSHr m	Shaft power kw	Motor type power Kw		weight kg
CIS50-32-125	9	31.6	3500	2.8		Y100L-2H	3	33
	15	28.8		2.8	1.96
	18	26.6		3.5
CIS50-32-125A	8	25.3	3500	2.8		Y90L-2H	2.2	33
	13.4	23		2.8	1.4
	16	21.3		3.5
CIS50-32-160	9	49.3	3500	2.8		Y132S1-2H	5.5	37
	15	46		2.8	3.48
	18	42.6		3.5
CIS50-32-160A	8.5	43.8	3500	2.8		Y112M-2H	4	37
	14.1	41		2.8	2.9
	16.9	37.8		3.5
CIS50-32-160B	7.7	36.8	3500	2.8		Y100L-2H	3	37
	12.9	34.2		2.8	2.3
	15.6	31.6		3.5
CIS50-32-200	9	75.6	3500	2.8		Y132S2-2H	7.5	52
	15	72		2.8	6.2
	18	69		3.5
CIS50-32-200A	8.6	69.5	3500	2.8		Y132S2-2H	7.5	52
	14.4	66.2		2.8	5.1
	17.2	63.6		3.5
CIS50-32-200B	7.8	56.3	3500	2.8		Y132S1-2H	5.5	52
	12.9	53.7		2.8	3.93
	15.5	51.5		3.5
CIS50-32-250	9	118	3550	2.8		Y160M2-2H	15	72
	15	115		2.8	12.4
	18	113		3.5
CIS50-32-250A	8.4	103	3550	2.8		Y160M2-2H	15	72
	14	100		2.8	10
	16.8	98		3.5
CIS50-32-250B	7.7	88	3550	2.8		Y160M1-2H	11	72
	13	85.5		2.8	7.97
	15.5	84		3.5
CIS65-50-125	18	31.3	3500	2.8		Y132S1-2H	5.5	34
	30	28.8		3.5	3.42
	36	26.6		4.2
CIS65-50-125A	17	28.3	3500	2.8		Y112M-2H	4	34
	28.5	26		3.5	2.92
	34.2	24		4.2
CIS65-50-160	18	50	3500	2.8		Y132S2-2H	7.5	45
	30	46		2.8	5.78
	36	43		3.5
CIS65-50-160A	16.8	43.5	3500	2.8		Y132S2-2H	7.5	45
	28	40		2.8	4.7
	33.6	37.5		3.5
CIS65-50-160B	15.5	37.5	3500	2.8		Y132S1-2H	5.5	45
	26	34.5		2.8	3.8
	31.2	32.5		3.5
CIS65-40-200	18	76	3550	2.8		Y160M2-2H	15	58
	30	72		2.8	9.8
	36	67.6		3.5

Type	(60Hz 3 φ 440v) main technical parameter					Motor type power Kw		weight kg
Type	Capacity m3/h	Head m	Speed r/min	NPSHr m	Shaft power kw	Motor type power Kw		weight kg
CIS65-40-200A	16.8	66	3550	2.8		Y160M1-2H	11	58
	28	63		2.8	8
	33.6	59		3.5
CIS65-40-200B	15	53.5	3500	2.8		Y132S2-2H	7.5	58
	25.2	50.8		2.8	5.72
	30	47.6		3.5
CIS65-40-250	18	118	3550	2.8		Y180M-2H	22	76
	30	115		2.8	17.73
	36	112		3.5
CIS65-40-250A	16.8	103	3550	2.8		Y160L-2H	18.5	76
	28	100.7		2.8	14.49
	33.6	98		3.5
CIS65-40-250B	15	83.2	3550	2.8		Y160M2-2H	15	76
	25.2	81.1		2.8	10.5
	30	79		3.5
CIS65-40-315	18	182	3580	3.5		Y225M-2H	45	84
	30	180		3.5	36.8
	36	177		4.2
CIS65-40-315A	17.2	166	3580	3.5		Y200L2-2H	37	84
	28.6	164		3.5	31.9
	34.4	161.5		4.2
CIS65-40-315B	16.3	150	3580	3.5		Y200L1-2H	30	84
	27.2	148		3.5	27.41
	32.6	145.8		4.2
CIS65-40-315C	15.4	130	3580	3.5		Y200L1-2H	30	84
	25.6	128		3.5	22.31
	30.8	126		4.2
CIS80-65-125	36	32	3500	4.2		Y132S2-2H	7.5	47
	60	28.5		4.2	6.21
	72	25.5		4.9
CIS80-65-125A	32.4	25.5	3500	4.2		Y132S2-2H	7.5	47
	54	23		4.2	5.10
	64.8	20.5		4.9
CIS80-65-160	36	51.8	3550	3.5		Y160M2-2H	15	52
	60	46		3.5	10.3
	72	41.5		4.2
CIS80-65-160A	33.6	44.6	3550	3.5		Y160M1-2H	11	52
	56	40		3.5	8.47
	67.2	36		4.2
CIS80-65-160B	30	36	3500	3.5		Y132S2-2H	7.5	52
	50	31		3.5	5.86
	60	28.5		4.2
CIS80-50-200	36	76	3550	3.5		Y180M-2H	22	60
	60	72		3.5	17.1
	72	67.5		4.2
CIS80-50-200A	33.6	66	3550	3.5		Y160L-2H	18.5	60
	56	63		3.5	13.9
	67.2	59		4.2
CIS80-50-200B	31.2	57	3550	3.5		Y160M2-2	15	60
	52	54		3.5	11.1
	62.4	50		4.2

Type	(60Hz 3 φ 440v) main technical parameter					Motor type power Kw		weight kg
Type	Capacity m3/h	Head m	Speed r/min	NPSHr m	Shaft power kw	Motor type power Kw		weight kg
CIS80-50-250	36	120	3580	3.5		Y200L2-2H	37	97
	60	115		3.5	29.8
	72	108		4.2
CIS80-50-250A	33.6	105	3580	3.5		Y200L1-2H	30	97
	56	100		3.5	25
	67.2	94		4.2
CIS80-50-250B	31.2	90	3580	3.5		Y200L1-2H	30	97
	52	86.4		3.5	20.4
	62.4	80.5		4.2
CIS80-50-315	36	184	3580	3.5		Y280S-2H	75	108
	60	180		3.5	54.47
	72	177		4.2
CIS80-50-315A	34.3	167	3580	3.5		Y250M-2H	55	108
	57.2	164		3.5	48.03
	68.6	161		4.2
CIS80-50-315B	32.6	151	3580	3.5		Y250M-2H	55	108
	54.4	148		3.5	42.17
	65.2	145		4.2
CIS80-50-315C	30.2	130	3580	3.5		Y200L2-2H	37	108
	50.4	127		3.5	34.18
	60.4	125		4.2
CIS100-80-125	72	34.5	3550	5.6		Y160M2-2H	15	49
	120	28.8		6.3	12.07
	144	23.7		7
CIS100-80-125A	67.2	29	3550	5.6		Y160M1-2H	11	49
	112	24		6.3	9.69
	134.4	20		7
CIS100-80-160	72	51.8	3550	4.9		Y180M-2H	22	64
	120	46		5.6	19.28
	144	40		6
CIS100-80-160A	67.2	45	3550	4.9		Y180M-2H	22	64
	112	40		5.6	15.86
	134.4	35		6
CIS100-80-160B	59.3	35	3550	4.9		Y160M2-2H	15	64
	98.8	31		5.6	10.97
	118.6	27		6
CIS100-65-200	72	77.7	3580	4.2		Y200L2-2H	37	78
	120	72		5	30.96
	144	67.6		6.7
CIS100-65-200A	67.2	68	3580	4.2		Y200L1-2H	30	78
	112	63		5	25.28
	134.4	59		6.7
CIS100-65-200B	62.4	59	3580	4.2		Y200L1-2H	30	78
	104	54.5		5	20.58
	124.8	51		6.7
CIS100-65-250	72	125	3580	4.8		Y280S-2H	75	112
	120	115		5.3	52.2
	144	107		7.4
CIS100-65-250A	67.2	109	3580	4.9		Y250M-2H	55	112
	112	100		5.3	42.36
	134.4	93.5		7.4

Type	(60Hz 3 φ 440v) main technical parameter					Motor type power Kw		weight kg
Type	Capacity m3/h	Head m	Speed r/min	NPSHr m	Shaft power kw	Motor type power Kw		weight kg
CIS100-65-250B	61.4	91	3580	4.9		Y200L2-2H	37	112
	102.4	83.8		5.3	32.91
	122.8	77.9		7.4
CIS100-65-315	72	191	3580	4.2		Y315S-2H	110	128
	120	180		5	89.13
	144	170		5.9
CIS100-65-315A	68.7	174	3580	4.2		Y280M-2H	90	128
	114.6	164		5	77.55
	229.2	154		5.9
CIS100-65-315B	65.2	156	3580	4.2		Y280M-2H	90	128
	109	148		4.2	67.59
	130.4	139		5
CIS100-65-315C	61.8	139	3580	4.2		Y280S-2H	75	128
	103	132		5	57.85
	123.6	124		5.9
CIS125-100-200	144	82.8	3580	6.3		Y280S-2H	75	92
	240	72		6.3	58.1
	288	64		7
CIS125-100-200A	134.4	72.8	3580	6.3		Y250M-2H	55	92
	224	63.3		6.3	48.3
	268.8	56		7
CIS125-100-200B	118.8	56.3	3580	6.3		Y225M-2H	45	92
	198	49.1		6.3	33.1
	237.6	43.4		7
CIS125-100-250	144	125	3580	5.3		Y315S-2H	110	127
	240	115		5.9	96.36
	288	103		7
CIS125-100-250A	134.4	109	3580	5.3		Y280M-2H	90	127
	224	100		5.9	78.21
	268.8	90		7
CIS125-100-250B	124.8	93	3580	5.3		Y280S-2H	75	127
	208	86		5.9	63.27
	249.6	77		7
CIS125-100-250C	115.2	76	3580	5.3		Y250M-2H	55	127
	192	70		5.9	49.8
	230.4	63		7
CIS125-100-315	144	190	3580	5.8		Y315L2-2H	200	152
	240	180		6.3	156.86
	288	172		7
CIS125-100-315A	137.5	172	3580	5.8		Y315L1-2H	160	152
	229.2	164		6.3	136.37
	275	156.8		7
CIS125-100-315B	131	157	3580	5.8		Y315M-2H	132	152
	218	148		6.3	118.74
	262	141.8		7
CIS125-100-315C	123.6	140	3580	5.8		Y315M-2H	132	152
	206	132		6.3	101.44
	247.2	120		7

Performance parameters when power frequency is 60 Hz

Type	(60Hz 3 φ 440V) main technical parameter					Motor type power Kw		weight kg
Type	Capacity m3/h	Head m	Speed r/min	NPSHr m	Shaft power kw	Motor type power Kw		weight kg
CIS50-32-125	4.5	7.7	1750	2.8		Y801-4H	0.55	33
	7.5	7.2		2.8	0.28
	9	6.6		3.5
CIS50-32-125A	4	6.3	1750	2.8		Y801-4H	0.55	33
	6.7	5.7		2.8	0.20
	8	5.3		3.5
CIS50-32-160	4.5	12.2	1750	2.8		Y802-4H	0.75	37
	7.5	11.5		2.8	0.49
	9	10.6		3.5
CIS50-32-160A	4.2	10.9	1750	2.8		Y801-4H	0.55	37
	7	10.2		2.8	0.42
	8.4	9.3		3.5
CIS50-32-160B	3.9	9.2	1750	2.8		Y801-4H	0.55	37
	6.5	8.4		2.8	0.31
	7.8	7.9		3.5
CIS50-32-200	4.5	18.8	1750	2.8		Y90S-4H	1.1	52
	7.5	18		2.8	0.88
	9	17.2		3.5
CIS50-32-200A	4.3	17.2	1750	2.8		Y90S-4H	1.1	52
	7.2	16.5		2.8	0.78
	8.6	15.8		3.5
CIS50-32-200B	3.8	13.9	1750	2.8		Y802-4H	0.75	52
	6.5	13.3		2.8	0.56
	7.8	12.8		3.5
CIS50-32-250	4.5	29.5	1750	2.8		Y100L1-4H	2.2	72
	7.5	28.8		2.8	1.84
	9	28		3.5
CIS50-32-250A	4.2	25.8	1750	2.8		Y100L1-4H	2.2	72
	7	25.2		2.8	1.5
	8.4	24.5		4.2
CIS50-32-250B	3.9	22	1750	2.8		Y90L-4H	1.5	72
	6.5	21.4		2.8	1.19
	7.7	20.5		4.2
CIS65-50-125	9	7.8	1750	2.8		Y801-4H	0.55	34
	15	7.2		2.8	0.46
	18	6.6		3.5
CIS65-50-125A	8.5	7	1750	2.8		Y801-4H	0.55	34
	14.2	6.4		2.8	0.39
	17	5.9		3.5
CIS65-50-160	9	12.5	1750	2.8		Y90S-4H	1.1	45
	15	11.5		2.8	0.78
	18	10		3.5
CIS65-50-160A	8.4	10.8	1750	2.8		Y90S-4H	1.1	45
	14	10		2.8	0.64
	16.8	9		3.5
CIS65-40-200	9	19	1750	2.8		Y100L1-4H	2.2	58
	15	18		2.8	1.34
	18	17		3.5
CIS65-40-200A	8.4	16.5	1750	2.8		Y90L-4H	1.5	58
	14	15.5		2.8	1.07
	16.8	14.8		3.5

Type	(60Hz 3 φ 440v) main technical parameter					Motor type power Kw		weight kg
Type	Capacity m3/h	Head m	Speed r/min	NPSHr m	Shaft power kw	Motor type power Kw		weight kg
CIS65-40-200B	7.5	13.3	1750	2.8		Y90S-4H	1.1	58
	12.6	12.6		2.8	0.79
	15	11.9		3.5
CIS65-40-250	9	30.2	1750	2.8		Y100L2-4H	3	76
	15	28.8		2.8	2.45
	18	27.9		3.5
CIS65-40-250A	8.4	26.4	1750	2.8		Y100L2-4H	3	76
	14	25.2		2.8	2.0
	16.8	24.4		3.5
CIS65-40-250B	7.5	21.3	1750	2.8		Y100L1-4H	2.2	76
	12.6	20.3		2.8	1.45
	15	19.6		3.5
CIS65-40-315	9	46.5	1750	3.5		Y132M-4H	7.5	84
	15	46		3.5	5.08
	18	45.5		4.2
CIS65-40-315A	8.6	42.4	1750	3.5		Y132S-4H	5.5	84
	14.3	42		3.5	4.42
	17.2	41.5		4.2
CIS65-40-315B	8.1	38	1750	3.5		Y112M-4H 4	4	84
	13.6	37.6		3.5	3.77
	16.3	37.2		4.2
CIS65-40-315C	7.7	34	1750	3.5		Y112M-4H	4	84
	12.8	33.7		3.5	3.17
	15.4	33.3		4.2
CIS80-65-125	18	8	1750	3.5		Y90S-4H	1.1	47
	30	7.2		3.5	0.83
	36	6.4		4.2
CIS80-65-125A	15	6.5	1750	3.5		Y802-4H	0.75	47
	26.4	5.8		3.5	0.59
	30	5.1		4.2
CIS80-65-160	18	12.9	1750	3.5		Y100L1-4H	2.2	52
	30	11.5		3.5	1.36
	36	10.3		4.2
CIS80-65-160A	16.8	11.2	1750	3.5		Y90L-4H	1.5	52
	28	10		3.5	1.11
	33.6	9		4.2
CIS80-65-160B	15	9	1750	3.5		Y90S-4H	1.1	52
	25.2	8		3.5	0.8
	30	7.2		4.2
CIS80-50-200	18	19	1750	3.5		Y100L2-4H	3	60
	30	18		3.5	2.26
	36	17		4.2
CIS80-50-200A	16.8	16.5	1750	3.5		Y100L1-4H	2.2	60
	28	15.8		3.5	1.85
	33.6	14.8		4.2
CIS80-50-200B	15.6	14	1750	3.5		Y100L1-4H	2.2	60
	26	13.3		3.5	1.45
	31.2	12.5		4.2
CIS80-50-250	18	30	1750	3.5		Y132S-4H	5.5	97
	30	28.8		3.5	3.92
	36	27		4.2
CIS80-50-250A	16.8	26.3	1750	3.5		Y112M-4H	4	97
	28	25.2		3.5	3.2
	33.6	23.6		4.2

Type	(60Hz 3 φ 440v) main technical parameter					Motor type power Kw		weight kg
Type	Capacity m3/h	Head m	Speed r/min	NPSHr m	Shaft power kw	Motor type power Kw		weight kg
CIS80-50-250B	15.6	22.3	1750	3.5		Y100L2-4H	3	97
	26	21.4		3.5	2.57
	31.2	20.3		4.2
CIS80-50-315	18	46.8	1780	3.5		Y160M-4H	11	108
	30	46		3.5	7.23
	36	45.3		4.2
CIS80-50-315A	17.1	41.5	1750	3.5		Y132M-4H	7.5	108
	28.5	41		3.5	6.13
	34.2	39.5		4.2
CIS80-50-315B	16.3	37.7	1750	3.5		Y132M-4H	7.5	108
	27.2	37.1		3.5	5.39
	32.6	36.4		4.2
CIS80-50-315C	15.1	33	1750	3.5		Y132S-4H	5.5	108
	25.2	32.4		3.5	4.36
	30.2	31.6		4.2
CIS100-80-125	36	8.6	1750	3.5		Y100L1-4H	2.2	49
	60	7.2		3.5	1.57
	72	5.7		4.2
CIS100-80-125A	33.6	6.9	1750	3.5		Y100L1-4H	2.2	49
	56	5.7		3.5	1.26
	67.2	4.6		4.2
CIS100-80-160	36	13.2	1750	2.8		Y100L2-4H	3	64
	60	11.5		3.5	2.51
	72	9.8		4.2
CIS100-80-160A	33.6	9.6	1750	3.5		Y100L1-4H	2.2	64
	56	8.4		3.5	1.73
	67.2	7.2		4.2
CIS100-80-160B	29.6	8.9	1750	2.8		Y100L1-4H	2.2	64
	49.4	7.7		3.5	1.44
	59.2	6.6		4.2
CIS100-65-200	36	19.4	1750	2.8		Y132S-4H	5.5	78
	60	18		2.8	4.03
	72	16.9		3.5
CIS100-65-200A	33.6	16.9	1750	2.8		Y112M-4H	4	78
	56	15.8		2.8	3.3
	67.2	14.8		3.5
CIS100-65-200B	31.2	14.4	1750	2.8		Y100L2-4H	3	78
	52	13.6		2.8	2.68
	62.4	12.6		3.5
CIS100-65-250	36	30.6	1780	2.8		Y160M-4H	11	112
	60	28.8		2.8	6.92
	72	27.3		3.5
CIS100-65-250A	33.6	27	1750	2.8		Y132M-4H	7.5	112
	56	25		2.8	5.69
	67.2	23		3.5
CIS100-65-315	36	48.9	1780	2.8		Y160L-4H	15	128
	60	46		2.5	11.93
	72	43.2		3.5
CIS100-65-315A	34.3	38.5	1780	2.8		Y160L-4H	15	128
	57.2	41		2.8	10.14
	68.6	33.9		3.5

Type	(60Hz 3 φ 440v) main technical parameter					Motor type power Kw		weight kg
Type	Capacity m3/h	Head m	Speed r/min	NPSHr m	Shaft power kw	Motor type power Kw		weight kg
CIS100-65-315B	32.6	39.4	1780	2.8		Y160M-4H	11	128
	54.5	37.1		2.8	8.88
	65.2	34.7		3.5
CIS100-65-315C	30.8	35.8	1780	2.8		Y160M-4H	11	128
	51.4	33.8		2.8	7.76
	61.6	31.6		3.5
CIS125-100-200	72	20.8	1780	3.5		Y160M-4H	11	92
	120	18		3.5	7.74
	144	15.8		4.2
CIS125-100-200A	67.2	18	1750	3.5		Y132M-4H	7.5	92
	112	15.6		3.5	6.35
	134.4	13.8		4.2
CIS125-100-200B	59.4	14.1	1750	3.5		Y132S-4H	5.5	92
	99	12.2		3.5	4.39
	118.8	10.8		4.2
CIS125-100-250	72	30.9	1780	3.5		Y160L-4H	15	127
	120	28.8		3.5	12.39
	144	26.6		4.2
CIS125-100-250A	67.2	26.5	1780	3.5		Y160L-4H	15	127
	112	25.2		3.5	10.12
	134.4	23.1		4.2
CIS125-100-250B	62.4	23	1780	3.5		Y160M-4H	11	127
	104	21.6		3.5	8.16
	124.8	19.5		4.2
CIS125-100-250C	57.6	18.5	1750	3.5		Y132M-4H	7.5	127
	96	17.5		3.5	6.27
	115.2	16.1		4.2
CIS125-100-315	72	48	1780	3.5		Y200L-4H	30	152
	120	46		3.5	20.59
	144	44		4.2
CIS125-100-315A	68.7	42.9	1780	3.5		Y180L-4H	22	152
	114.6	41		3.5	17.5
	137.5	39		4.2
CIS125-100-315B	65.4	39.5	1780	3.5		Y180M-4H	18.5	152
	109	38		3.5	15.67
	130.8	36		4.2
CIS125-100-315C	61.8	35	1780	3.5		Y160L-4H	15	152
	103	33.5		3.5	13.24
	123.6	32		4.2
CIS125-100-400	72	74.8	1780	3.5		Y225M-4H	45	206
	120	72		3.5	36.20
	144	69.8		4.2
CIS125-100-400A	67.4	65.5	1780	3.5		Y225S-4H	37	206
	112.3	63		3.5	30.11
	135	61		4.2
CIS125-100-400B	63.4	57.4	1780	3.5		Y200L-4H	30	206
	105.6	55.2		3.5	25.28
	127	53.5		4.2

Type	(60Hz 3 φ 440v) main technical parameter					Motor type power Kw		weight kg
Type	Capacity m3/h	Head m	Speed r/min	NPSHr m	Shaft power kw	Motor type power Kw		weight kg
CIS150-125-200	144	20.1	1780	4.2		Y180M-4H	18.5	135
	240	18		4.5	14.52
	288	15.8		6.3
CIS125-100-400C	59	49	1780	3.5		Y200L-4H	30	206
	98.4	47		3.5	20.51
	118	46		4.2
CIS150-125-200A	125	15	1780	4.5		Y160M-4H	11	135
	208	13.4		4.5	9.49
	250	11.8		6.3
CIS150-125-250	144	32.4	1780	4.2		Y200L-4H	30	150
	240	28.8		4.2	23.24
	288	25.2		6.3
CIS150-125-250A	135	27.3	1780	4.2		Y180L-4H	22	150
	224.4	24.4		4.2	19.14
	270	21.3		6.3
CIS150-125-250B	125	24	1780	4.2		Y180L-4H	22	150
	208	21.6		4.2	16.32
	250	18.5		6.3
CIS150-125-315	144	48.9	1780	3.5		Y225M-4H	45	161
	240	46		3.5	38.06
	288	41.7		4.2
CIS150-125-315A	135	42.5	1780	3.5		Y225S-4H	37	161
	224.4	40		3.5	30.95
	270	36.4		4.2
CIS150-125-315B	125	36.5	1780	3.5		Y200L-4H	30	161
	208	34.5		3.5	25.06
	250	31.2		4.2
CIS150-125-400	144	76	1780	2.8		Y280S-4H	75	246
	240	72		3.9	62.75
	288	66		4.9
CIS150-125-400A	135	66.6	1780	2.8		Y280S-4H	75	246
	224.4	62.9		3.9	51.25
	270	57.8		4.9
CIS150-125-400B	125	57	1780	2.8		Y250M-4H	55	246
	208	53.8		3.9	41.18
	250	49.5		4.9
CIS200-150-250	288	32.5	1780	5		Y250M-4H	55	175
	480	28.8		6.5	45.91
	552	24.7		6.9
CIS200-150-250A	270	28.3	1780	5		Y225M-4H	45	175
	450	25		6.5	37.36
	516	21.6		6.9
CIS200-150-250B	250	24.3	1780	5		Y225S-4H	34	175
	415	21.4		6.5	29.86
	478	18.4		6.9
CIS200-150-315	288	53	1780	4.2		Y280M-4H	90	252
	480	46		4.9	73.33
	552	41		5.6

Type	(60Hz 3 φ 440v) main technical parameter					Motor type power Kw		weight kg
	Capacity m3/h	Head m	Speed r/min	NPSHr m	Shaft power kw
CIS200-150-315A	270	53	1780	4.9		Y280S-4H	75	252
	450	40		5.6	59.78
	516	35.5		3
CIS200-150-315B	252	39.5	1780	4.2		Y250M-4H	55	252
	420	34.5		4.9	49.95
	484	30.5		5.6
CIS200-150-315C	237	34	1780	4.2		Y225M-4H	45	252
	392	29.5		4.9	40
	452	26		5.6
CIS200-150-400	288	79	1780	4.2		Y315M-4H	132	246
	480	72		5.3	116.2
	552	64.8		6.3
CIS200-150-400A	274	70	1780	4.2		Y315S-4H	110	246
	456	64		5.3	99.97
	525	57.6		6.3
CIS200-150-400B	245	57	1780	4.2		Y280M-4H	90	246
	408	51.5		5.3	71.53
	470	46.5		6.3
CIS200-150-400C	234	48.5	1780	4.2		Y280S-4H	75	246
	389	44.3		5.3	61.51
	448	39.5		6.3

Hot Tags: CIS Marine Horizontal Centrifugal Pump

Related Category

Send Inquiry

Contact Info



Address

No. 148 Dongfeng Village, Xiaoshan District, Hangzhou City, Zhejiang Province, China


Tel

+86-13429195547


E-mail

info@advancegearboxcn.com

Get customized price quotes for marine transmissions within 24hrs. China factory with multi-classification certifications. Submit your project requirements now!
