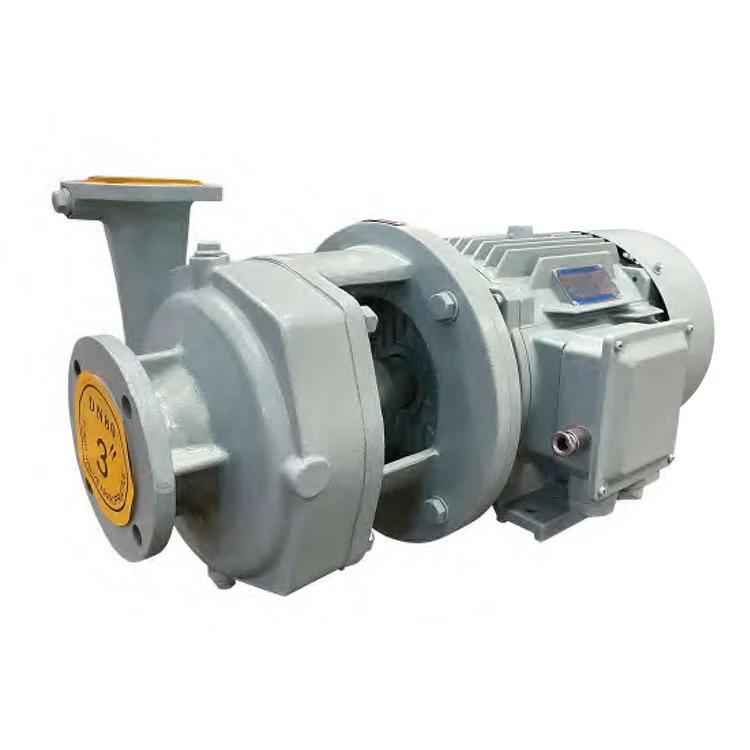

BL Marine Horizontal Centrifugal Pump

Want to find reliable manufacturer and supplier of marine euipments? Cagon is a good choice for you. Our BL marine horizontal centrifugal pump has a wide application, with good quality and durability. Our products can be customized, you can send us your specific needs to get more information about services.

Send Inquiry

Product Description

The BL marine horizontal centrifugal pumps are suitable for fire control, cooling, and sanitation applications. They are used in various industries, city water supply and drainage, as well as agricultural and orchard irrigation.

Main technical parameter:

performance parameters when power frequency is 50Hz

Type	(50Hz) Main technical parameter					Motor type & power kw		Remarks
Type	capacity m3/h	Head m	speed r/min	m	shaft power kw	Motor type & power kw		Remarks
1BL-3D	1.5	25	2810			Y801-2H	0.75
11/2BL-6	6	20.3	2900	6.6	0.745	Y90s-2H	1.5	44
	11	17.4		6.7	0.923
	14	14		6.0	1.01
11/2BL-6A	5	16	2900	6.5	0.578	Y90s-2H	1.5
	9.5	14.2		6.9	0.713
	13.5	11.2		6.1	0.825
11/2 BL-6B	4.5	12.8	2900	6.4	0.448	Y802-2H	1.1
	9	11.4		7.0	0.57
	13	8.8		6.3	0.693
2BL-2	2	25	2900			Y802-2H	1.1
2BL-6	10	34.5	2900	8.2	1.86	Y112M-2H	4	80
	20	30.8		7.2	2.61
	30	24		5.7	3.09
2BL-6A	10	28.5	2900	8.2	1.43	Y100L-2H	3
	20	25.2		7.2	2.07
	30	20		5.7	2.55
11/2BL-6A	5	16	2900	6.5	0.578	Y90s-2H	1.5
	9.5	14.2		6.9	0.713
	13.5	11.2		6.1	0.825
11/2 BL-6B	4.5	12.8	2900	6.4	0.448	Y802-2H	1.1
	9	11.4		7.0	0.57
	13	8.8		6.3	0.693
2BL-6	10	34.5	2900	8.2	1.86	Y112M-2H	4	80
	20	30.8		7.2	2.61
	30	24		5.7	3.09
2BL-6A	10	28.5	2900	8.2	1.43	Y100L-2H	3
	20	25.2		7.2	2.07
	30	20		5.7	2.55
2BL-6B	10	22	2900	8.2	1.10	Y90L-2H	2.2
	20	18.8		7.2	1.57
	25	16.3		6.6	1.73
2BL-9	11	21	2900	8.0	1.12	Y90L-2H	2.2
	20	18.5		6.8	1.47
	25	16		6.0	1.66
2BL-9A	10	16.8	2900	8.1	0.85	Y90L-2H	2.2
	17	15		7.3	1.06
	22	13		6.5	1.23
2BL-9B	10	13	2900	8.1	0.70	Y90s-2H	1.5	46
	15	12		7.6	0.82
	20	10.3		9.8	0.91

Type	(50Hz) Main technical parameter					Motor type & power kw		Remarks
Type	capacity m3/h	Head m	Speed r/min	m	Shaft power kw	Motor type & power kw		Remarks
3BL-6	30	62	2950	7.7	9.3	Y160M2-2H	15
	45	67		6.7	11.0
	60	50		5.6	12.3
	70	44.5		4.7	13.3
3BL-6A	30	45	2950	7.5	6.65	Y160M1-2H	11
	40	41.5		7.1	7.30
	50	37.5		6.4	7.98
	60	30			8.80
3BL-9	30	35.5	2900	7.0	4.66	Y132S2-2H	7.5
	45	32.6		5.0	5.56
	55	28.8		3.0	6.32
3BL-9A	25	26.2	2900	7.0	2.83	Y132S1-2H	5.5
	35	25		6.4	3.35
	45	22.5		5.0	3.87
3BL-13	32.5	21.5	2900	6.5	2.5	Y112M-2H	4
	45.0	18.8		5.5	2.88
	52.2	15.6		5.0	2.96
3BL-13A	29.5	17.4	2900	6.0	1.86	Y100L-2H	3
	39.6	15.0		5.0	2.02
	48.6	12.0		4.5	2.15
3BL-13B	28.0	13.5	2900	5.5	1.63	Y90L-2H	2.2
	34.2	12.0		5.0	1.72
	41.5	9.5		4.0	1.73
4BL-12	65	37.7	2950	6.7	9.25	Y160M2-2H	15
	90	34.6		5.8	10.8
	120	28		3.3	12.3
4BL-12A	60	31.6	2950	6.9	7.4	Y160M1-2H	11
	85	28.6		6.0	8.7
	110	23.3		4.5	9.5
4BL-18	65	22.6	2950		5.32	Y160M1-2H	11
	90	20		5	6.28
	110	17.1			6.93
4BL-18A	60	17.2	2900		3.80	Y132S1-2H	5.5
	80	15.2		5	4.35
	95	13.2			4.80
4BL-25	54	17.6	2900		3.69	Y132S1-2H	5.5
	79	14.8		5	4.10
	99	10			4.02
4BL-25A	50	14	2900		2.80	Y112M-2H	4
	72	11		5	2.87
	86	8.5			2.78

Type	(50Hz) Main technical parameter					Motor type & power kw		Remarks
Type	capacity m3/h	Head m	Speed r/min	m	Shaft power kw	Motor type & power kw		Remarks
4BL-18	65	22.6	2950		5.32	Y160M1-2H	11
	90	20		5	6.28
	110	17.1			6.93
4BL-18A	60	17.2	2900		3.80	Y132S1-2H	5.5
	80	15.2		5	4.35
	95	13.2			4.80
4BL-25	54	17.6	2900		3.69	Y132S1-2H	5.5
	79	14.8		5	4.10
	99	10			4.02
4BL-25A	50	14	2900		2.80	Y112M-2H	4
	72	11		5	2.87
	86	8.5			2.78
