AWG180 Hydraulic transmission is updated by HAGG on the basis of standard WG180 transmission. At the Max, it can realize 6 forward and 3 reverse. It is suitable for construction machineries such as loader, grader, off-road vehicles etc.
Main Data
Max engine power: 190KW
Max engine speed: 2600r/min
Max output torque of turbine shaft: 1450N. m
Center distance: 555/500mm
Shifting method: AT with manual mode (electric-hydraulic proportional control)
Ratio: identical to that of WG180 transmission
Applications
The high-efficiency integrated electric-hydraulic proportional control system may reduceshifting impact by over 20%, increase working efficiency by over 15%, thus achieving full potential performance of the transmission. All-condition adaptive automatic variation greatly reduces working strength. The automated mechanical transmission way provides more driving modes. And multi-data automatic shifting, safety and pre-diagnosis functions ensure excellent vehicle performance.
It is developed on the basis of YB310 hydraulic transmission, which at Max has 6 forward and 3 reverse speeds, and lock-up clutch is optional. It is suitable for construction vehicles such as loader, grader and tractor etc.
Main Data
Max engine power: 310KW
Max engine speed: 2500r/min
Max input torque: 2750N. m
Speeds: 6 forward 3 reverse, 4 forward 3 reverse or 3 forward 3 reverse
Shifting method: AMT (electric-hydraulic proportional control)
Input type: the torque converter is directly connected to flywheel casing, or connected via flange or universal joint.
Output type: flange, double outputs
Torque converter: 375 converter
PTO: ratio for PTO1 is 1:1(rotation direction same with engines'), for PTO2 is-1:1(rotation direction contrary to engine)
Applications
AYB310 automatic transmission gearbox for motor graders is used in construction vehicles such as loader, grader and tractor etc.
DBA170 powershift transmission, using helical gear transmission, low noise, can replace imported mining gearbox.
Main Data
Max input power: 170KW
Max input speed: 2600r/min
Max output torque: 1350N. m
Speeds: 3 forward 3 reverse
Forward Speeds: 5. 019/3. 413/1. 379
Reverse Speeds: 5. 019/3. 413/1. 379
Center distance: 470mm
Shifting method: electric-hydraulic control
Input type: flange
Output type: flange, double outputs
Applications
DBA170 powershift transmission with YJ305 torque converter is used to 52 ton rock drilling jumbo.

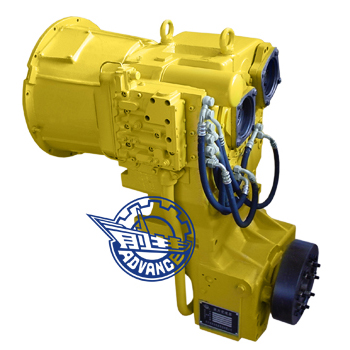

WG180 Hydraulic transmission is based on technology introduced from ZF Company, Germany. It is a countershaft multi-speed hydraulic transmission, consists of a torque converter and a power shift gearbox, electricalor mechanical-hydraulic control. Speeds are available as 6 forward 3 reverse, 4 forward 3 reverse or 3 forward 3 reverse, with corresponding shifting handle. Lock-up clutch and towing pump are optional.
Main Data
Max engine power: 190KW
Max engine speed: 2600r/min
Max output torque of turbine shaft: 1450N. m
Speeds: 6 forward 3 reverse, 4 forward 3 reverse, or 3 forward 3 reverse
Shifting method: electrical- or mechanical-hydraulic control
Input type: the torque converter may be directly connected to SAE1#, 2# (only 305 and 320 converters), 3# (only 305 converter) flywheel casing, or connected via flange or universal joint.
Output type: flange, double outputs 305, 320, 340 or 350 torque converter is optional.
Front and rear axle output. Rear axle releasing mechanism is optional.
Applications
WG180 hydraulic transmission gearbox for motor graders is widely used in construction vehicles such as grader, loader, tractor, scraper etc.
WG181 Hydraulic transmission is based on technology introduced from ZF Company, Germany. It is acounter shaft multi-speed hydraulic transmission, consists of a torque converter and a power shift gearbox, electrical- or mechanicalhydraulic control. Speeds are available as 6 forward 3 reverse, 4 forward 3 reverse or 3 forward 3 reverse, with corresponding shifting handle. Lock-up clutch is optional.
Main Data
Max engine power: 170KW
Max engine speed: 2600r/min
Max output torque of turbine shaft: 1350N. m
Speeds: 6 forward 3 reverse, 4 forward 3 reverse, or 3 forward 3 reverse
Shifting method: electrical- or mechanical-hydraulic control
Input type: the torque converter may be directly connected to SAE1#, 2# (only 305 and 320 converters), 3# (only 305 converter) flywheel casing, or connected via flange or universal joint.
Output type: flange 305, 320, 340 or 350 torque converter is optional.
Single output.
Applications
WG180 hydraulic transmission is widely used in construction vehicles such as tractor, forklift etc.
YB160 transmission is a fixed-shaft multi-Speeds hydraulic transmission, combining Speeds and torque variable as integral, electrical- hydraulic, blocking function is optional.
Main Data
Max input power: 160KW
Max input speed: 2500r/min
Max turbine shaft torque: 1100N. m
Speeds: 6 forward 3 reverse or 4 forward 3 reverse or 3 forward 3 reverse
Shifting method: Electric -hydraulic control
Input type: The torque converter is directly connected to flywheel casing, or connected via flange
Output type: Flange, double outputs
Torque converter: Optional for 305, 320, 340 or 350 converter
Input output center distance: 500mm
Applications
YB160 hydraulic transmission is widely used in construction vehicles such as loader, fork truck, grader and tractor etc.
YB210 transmission is a fixed-shaft multi-Speeds hydraulic transmission, combining speeds and torque variable as integral, electricalhydraulic, blocking function is optional.
Main Data
Max input power: 210KW
Max input speed: 2500r/min
Max turbine shaft torque: 1650N. m
Speeds: 6 forward 3 reverse or 4 forward 3 reverse or 3 forward 3 reverse
Shifting method: Electric -hydraulic control
Input type: The torque converter is directly connected to flywheel casing, or connected via flange
Output type: Flange, double outputs
Torque converter: Optional for 340 or 350 converter
Input output center distance: 540mm
Applications
YB210 hydraulic transmission is widely used in construction vehicles such as loader, fork truck, grader and tractor etc.
YD130 hydraulic transmission is a fixed-shaft multi-speed hydraulic transmission, combining Speeds and torque variable as integral, electricalor mechanical-hydraulic controlled. Speeds are 6 forward 3 reverse, 4 forward 3 reverse or 3 forward 3 reverse via corresponding shifting handle. Blocking function is optional.
Main Data
Max engine power: 130KW
Max engine speed: 2600r/min
Max output torque of turbine shaft: 1000N. m
Speeds: 6 forward 3 reverse, 4 forward 3 reverse or 3 forward 3 reverse
Shifting method: electrical- or mechanical-hydraulic control
Input type: the torque converter may be directly connected to SAE2#, 3# (only 305 converter) flywheel casing, or connected via flange or universal joint.
Output type: flange, double outputs 305 or 320 torque converter is optional.
PTO: ratio for PTO1 is 1:1(rotation direction same with engines'), for PTO2 is-1:1(rotation direction contrary to engine)
Applications
YD130 hydraulic transmission is widely used in construction vehicles such as grader, loader, tractor and scraper etc.
YD131 hydraulic transmission is a countershaft multi-speed hydraulic transmission, consists of a torque converter and a power shift gearbox, electrical-or mechanical-hydraulic controlled. Speeds are 6 forward 3 reverse, 4 forward 3 reverse or 3 forward 3 reverse via corresponding shifting handle. Lock-up clutch is optional.
Main Data
Max engine power: 130KW
Max engine speed: 2600r/min
Max output torque of turbine shaft: 1000N. m
Speeds: 6 forward 3 reverse, 4 forward 3 reverse or 3 forward 3 reverse
Shifting method: electrical- or mechanical-hydrauliccontrol
Input type: the torque converter may be directly connected to SAE2#, 3# (only 305 converter) flywheel casing, or connected via flange or universal joint.
Output type: flange, double outputs 305 or 320 torque converter is optional.
Applications
YD131 hydraulic transmission is widely used in construction vehicles such as tractor, rotary drilling rig and forklift etc.
| Hydraulic transmission for grader | |||
| Serial number | Product model | Application specifications | Remark |
| 1 | YD130 | PY160 | 6 front and 3 reverse, electro-hydraulic shift |
| 2 | YB160 | PY180 | 6 front and 3 reverse, electro-hydraulic shift |
| 3 | WG180 | PY180/190 | 6 front and 3 reverse, electro-hydraulic shift |
| 4 | AWG180 | PY180/190 | 6 front and 3 reverse, manual and automatic |
| 5 | YB210 | PY240 | 6 front and 3 reverse, electro-hydraulic shift |
| 6 | YB310 | PY300 | 6 front and 3 reverse, electro-hydraulic shift |
