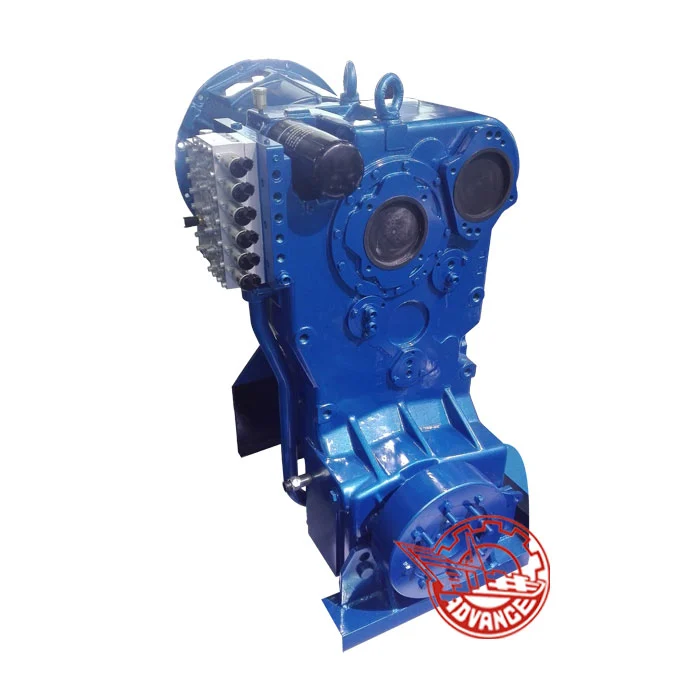

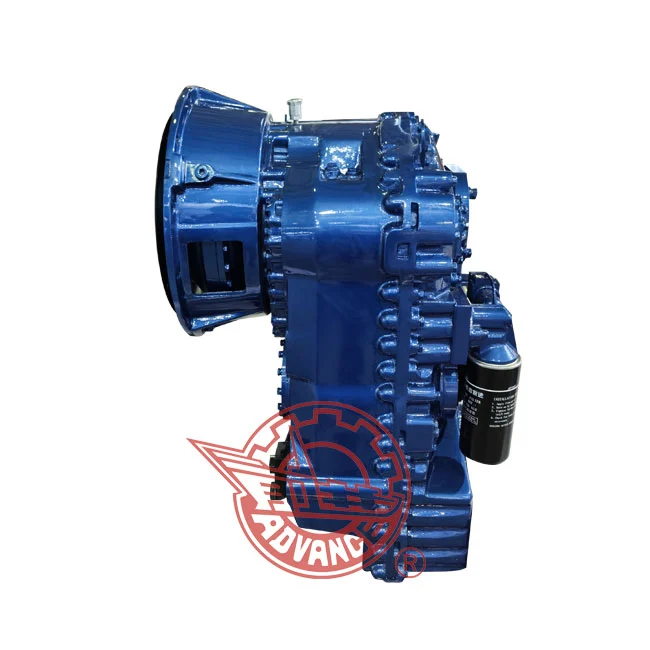

AWG180 Hydraulic transmission gearbox for loaders is updated by HAGG on the basis of standard WG180 transmission. At the Max, it can realize 6 forward and 3 reverse. It is suitable for construction machineries such as loader, grader, off-road vehicles etc.
Main Data
Max engine power: 190KW
Max engine speed: 2600r/min
Max output torque of turbine shaft: 1450N. m
Center distance: 555/500mm
Shifting method: AT with manual mode (electric-hydraulic proportional control)
Ratio: identical to that of WG180 transmission
Applications
The high-efficiency integrated electric-hydraulic proportional control system may reduce shifting impact by over 20%, increase working efficiency by over 15%, thus achieving full potential performance of the transmission. All-condition adaptive automatic variation greatly reduces working strength. The automated mechanical transmission way provides more driving modes. And multi-data automatic shifting, safety and pre-diagnosis functions ensure excellent vehicle performance.

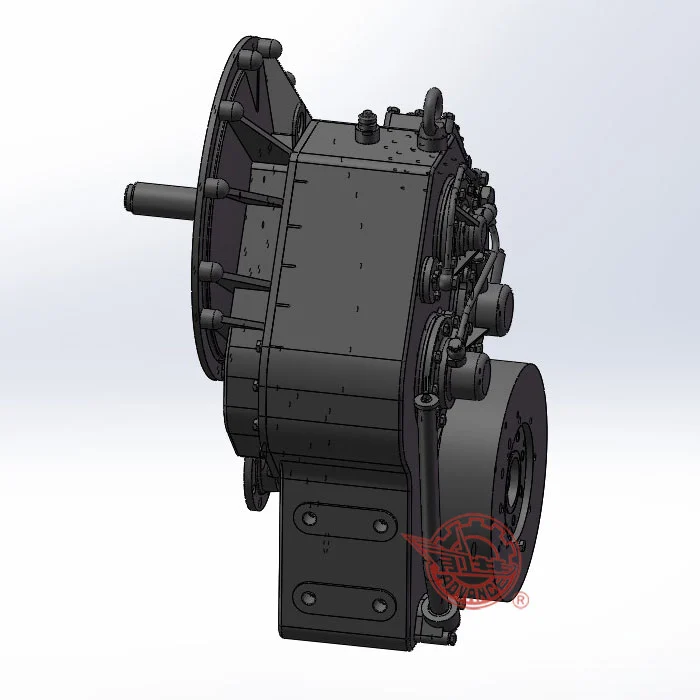

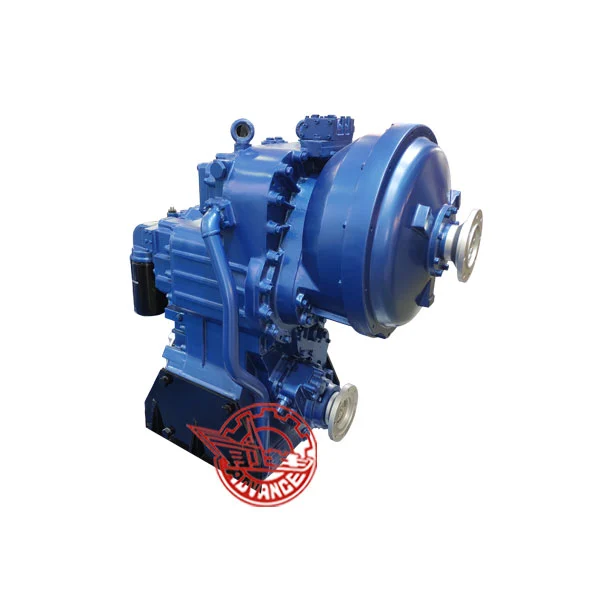

It is developed on the basis of YB310 hydraulic transmission, which at Max has 6 forward and 3 reverse speeds, and lock-up clutch is optional. It is suitable for construction vehicles such as loader, grader and tractor etc.
Max engine power: 310KW
Max engine speed: 2500r/min
Max input torque: 2750N. m
Speeds: 6 forward 3 reverse, 4 forward 3 reverse or 3 forward 3 reverse
Shifting method: AMT (electric-hydraulic proportional control)
Input type: the torque converter is directly connected to flywheel casing, or connected via flange or universal joint.
Output type: flange, double outputs
Torque converter: 375 converter
PTO: ratio for PTO1 is 1:1(rotation direction same with engines'), for PTO2 is-1:1(rotation direction contrary to engine)
Applications
AYB310 automatic transmission is used in construction vehicles such as loader, grader and tractor etc.

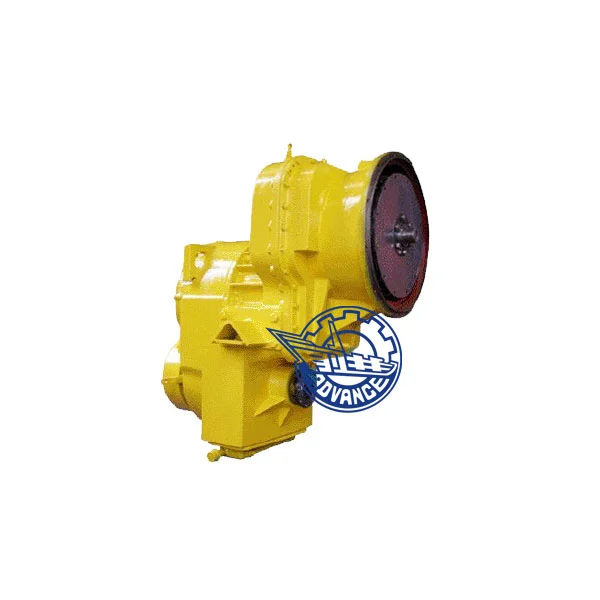

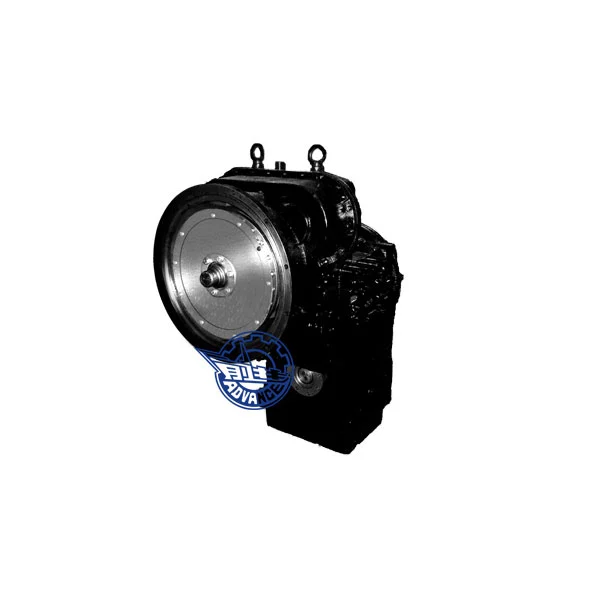

BS428 transmission is a fixed-shaft multi-speed wet clutch transmission, torque converter separately mounted, mechanical-hydraulic controlled and using fork for upshift, downshift and stop. BS428D applies to vehicles requiring reducing rotation Speeds.
Main Data
Max input power: 74KW
Max input speed: 2500r/min
Max input torque: 650N. m
Speeds: 4 forward 2 reverse
Shifting method: mechanical control valve for shifting/fork for shifting high or low Speeds
Input type: flange
Output type: flange, double outputs
Applications
BS428 transmission is widely used in ZL20 or ZL30 loader

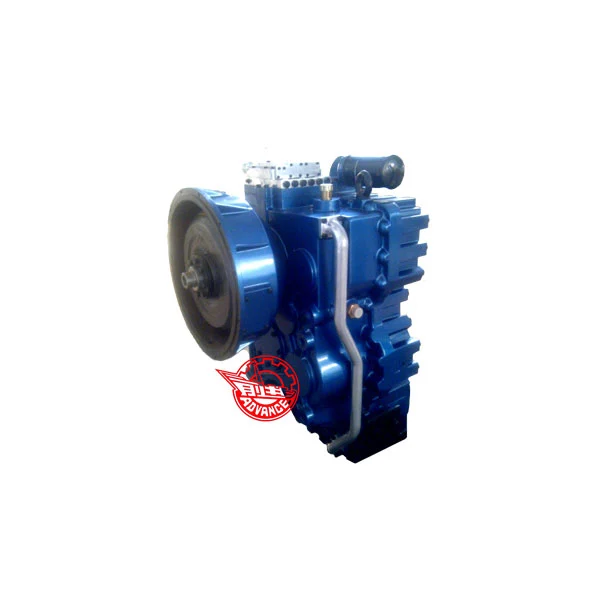

DB55 transmission is a countershaft multi-speed powershift transmission, mechanical-hydraulic controlled and torque converter separately mounted.
Main Data
Max input power: 58KW
Max input speed: 2400r/min
Speeds: 2 forward 2 reverse
Shifting method: mechanical-hydraulic control or electric-hydraulic control
Input type: flange
Output type: flange, double outputs
Applications
DB55 transmission is widely used in loader type ZL16 (1.6t) and ZL18 (1.8t).

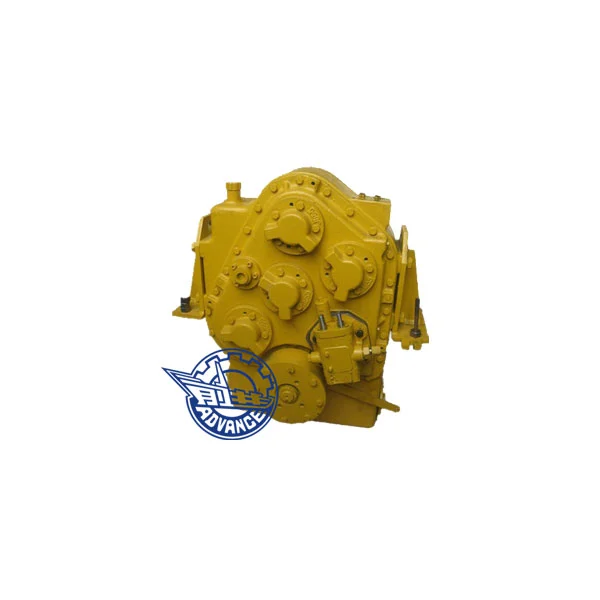

DB428 transmission is electric-hydraulic controlled powershift transmission, having 4 forward and 3 reverse Speeds, normally with YJ315X torque converter separately mounted but used together. Its installation dimensions are completely identical to those of BS428 transmission (i.e. ZL30), so it is unnecessary to modify vehicle frame for upgrade to electric controlled shifting.
Main Data
Max input power: 130KW
Max input speed: 2600r/min
Max input torque: 1000N. m
Speeds: 4 forward 3 reverse
Shifting method: electrical-hydraulic control
Input type: flange
Output type: flange, double outputs
Applications
DB428 transmission is widely used in 3t loader.

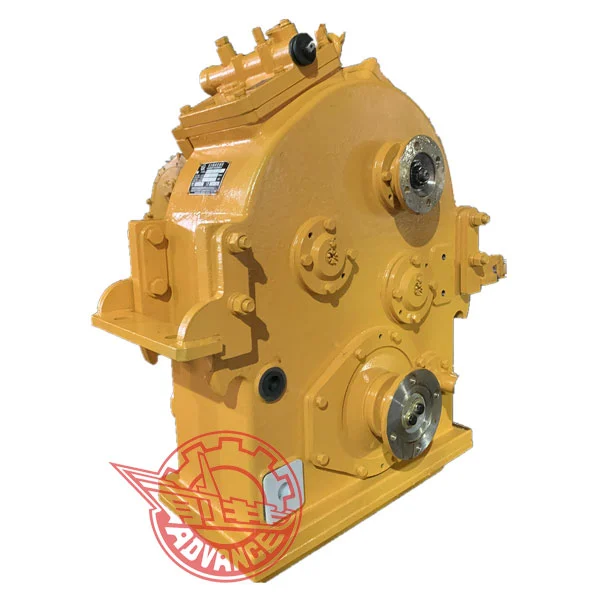

WG180 Hydraulic transmission is based on technology introduced from ZF Company, Germany. It is a countershaft multi-speed hydraulic transmission, consists of a torque converter and a power shift gearbox, electricalor mechanical-hydraulic control. Speeds are available as 6 forward 3 reverse, 4 forward 3 reverse or 3 forward 3 reverse, with corresponding shifting handle. Lock-up clutch and towing pump are optional.
Main Data
Max engine power: 190KW
Max engine speed: 2600r/min
Max output torque of turbine shaft: 1450N. m
Speeds: 6 forward 3 reverse, 4 forward 3 reverse, or 3 forward 3 reverse
Shifting method: electrical- or mechanical-hydraulic control
Input type: the torque converter may be directly connected to SAE1#, 2# (only 305 and 320 converters), 3# (only 305 converter) flywheel casing, or connected via flange or universal joint.
Output type: flange, double outputs 305, 320, 340 or 350 torque converter is optional. Front and rear axle output. Rear axle releasing mechanism is optional.
Applications
WG180 hydraulic transmission is widely used in construction vehicles such as grader, loader, tractor, scraper etc.

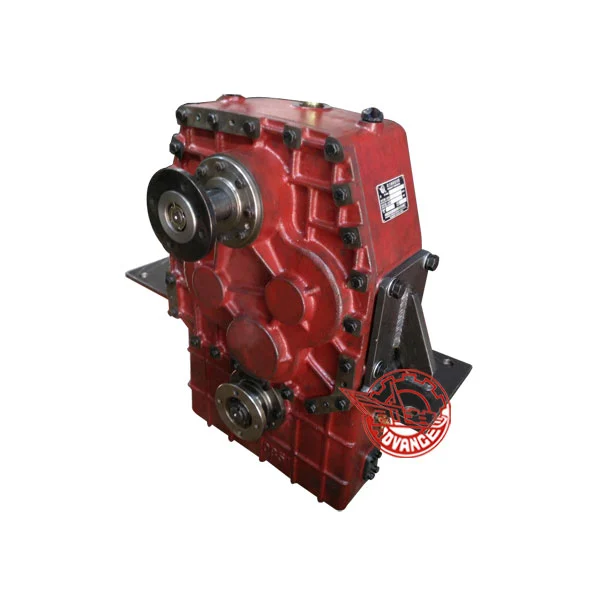

WG181 Hydraulic transmission is based on technology introduced from ZF Company, Germany. It is acounter shaft multi-speed hydraulic transmission, consists of a torque converter and a power shift gearbox, electrical- or mechanicalhydraulic control. Speeds are available as 6 forward 3 reverse, 4 forward 3 reverse or 3 forward 3 reverse, with corresponding shifting handle. Lock-up clutch is optional.
Main Data
Max engine power: 170KW
Max engine speed: 2600r/min
Max output torque of turbine shaft: 1350N. m
Speeds: 6 forward 3 reverse, 4 forward 3 reverse, or 3 forward 3 reverse
Shifting method: electrical- or mechanical-hydraulic control
Input type: the torque converter may be directly connected to SAE1#, 2# (only 305 and 320 converters), 3# (only 305 converter) flywheel casing, or connected via flange or universal joint.
Output type: flange 305, 320, 340 or 350 torque converter is optional.
Single output.
Applications
WG180 hydraulic transmission is widely used in construction vehicles such as tractor, forklift etc.

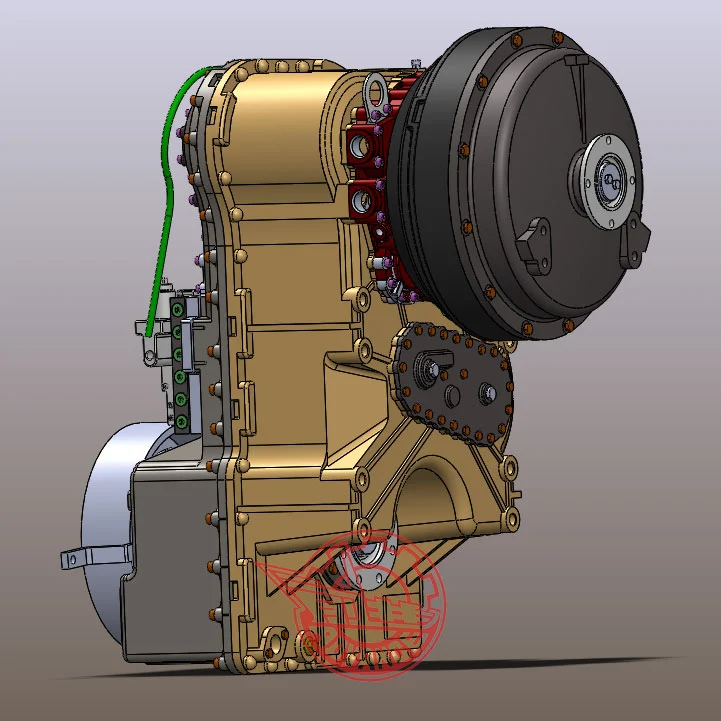

YB210 transmission is a fixed-shaft multi-Speeds hydraulic transmission, combining speeds and torque variable as integral, electricalhydraulic, blocking function is optional.
Main Data
Max input power: 210KW
Max input speed: 2500r/min
Max turbine shaft torque: 1650N. m
Speeds: 6 forward 3 reverse or 4 forward 3 reverse or 3 forward 3 reverse
Shifting method: Electric -hydraulic control
Input type: The torque converter is directly connected to flywheel casing, or connected via flange
Output type: Flange, double outputs
Torque converter: Optional for 340 or 350 converter
Input output center distance: 540mm
Applications
YB210 hydraulic transmission is widely used in construction vehicles such as loader, fork truck, grader and tractor etc.
YB230 transmission is a fixed-shaft multi-speed hydraulic transmission, consists of a torque converter and power shift gearbox, electrical-hydraulic controlled. Lock-up clutch is optional or towing pump is optional.
Main Data
Max input power: 230KW
Max input speed: 2200r/min
Max input torque: 2450N. m
Speeds: 4 forward 4 reverse
Shifting method: electrical-hydraulic control
Input type: the torque converter is directly connected to flywheel casing, or connected via flange or universal joint.
Output type: flange, double outputs
Torque converter: 375 converter
PTO: ratio for PTO1 is 1:1(rotation direction same with engines'),
for PTO2 is-1:1(rotation direction contrary to engine)
Applications
YB230 hydraulic transmission is widely used in construction vehicles such as loader, fork truck, grader and tractor etc.
ZL50D hydraulic transmission is a planetary multi-speed transmission, with twin turbine four element hydraulic torque converter integrated, and mechanical-hydraulic controlled.
Main Data
Max input power: 154KW
Max input speed: 2200r/min
Speeds: 2 forward 1 reverse
Shifting method: mechanical control valve for shifting
Input type: directly connected to diesel engine via diaphragm spring
Output type: flange, double outputs
Applications
ZL50D hydraulic transmission is widely used in ZL50 loader.
ZL60 hydraulic transmission is a planetary multi-speed transmission, with twin-turbine four element hydraulic torque converter integrated, and mechanical-hydraulic controlled.
Main Data
Max input power: 186KW
Max input speed: 2200r/min
Speeds: 2 forward 1 reverse
Shifting method: mechanical control valve for shifting
Input type: directly connected to diesel engine via diaphragm spring
Output type: flange, double outputs
Number of PTO: double
Applications
ZL60 hydraulic transmission is widely used in ZL60 loader.
| Gearbox/Hydraulic Transmission for Loaders | |||
| Serial number | Product model | Application specifications | Remark |
| 1 | DB55 | 1.5/1.8 tons | 2 front 2 reverse, hydraulic shift, electro-hydraulic shift |
| 2 | DB51 | 1.5/1.8 tons | 2 front 2 reverse, hydraulic shift |
| 3 | DB428 | 3 tons (high configuration) | 4 front 3 reverse, hydraulic shift, electro-hydraulic shift |
| 4 | BS428 | 3 tons | 4 front 2 reverse, hydraulic shift |
| 5 | BS428D | 3 tons | 4 front 2 reverse, hydraulic shift |
| 6 | ZL50D | 5 tons | 2 front 1 reverse, hydraulic shift, twin turbo |
| 7 | YB160 | 5 tons | 4 front 3 reverse, electro-hydraulic shift |
| 8 | WG180 | 5 tons (high configuration) | 4 front 3 reverse, electro-hydraulic shift |
| 9 | AWG180 | 5 tons (high configuration) | 4 front 3 reverse, electro-hydraulic shift |
| 10 | EDB210 | 5 tons | 4 front 3 reverse, manual and automatic |
| 11 | ZL60 | 6 tons | Motor drive, 2 gears, automatic shift |
| 12 | YB210 | 6 tons | 2 front 1 reverse, hydraulic shift, twin turbo |
| 13 | YB230 | 7 tons (new) | 4 front 3 reverse, electro-hydraulic shift |
| 14 | YB310 | 8 tons | 4 front 4 reverse, electro-hydraulic shift |
