Marine Full Rotary Thrusters
  • Marine Full Rotary ThrustersMarine Full Rotary Thrusters

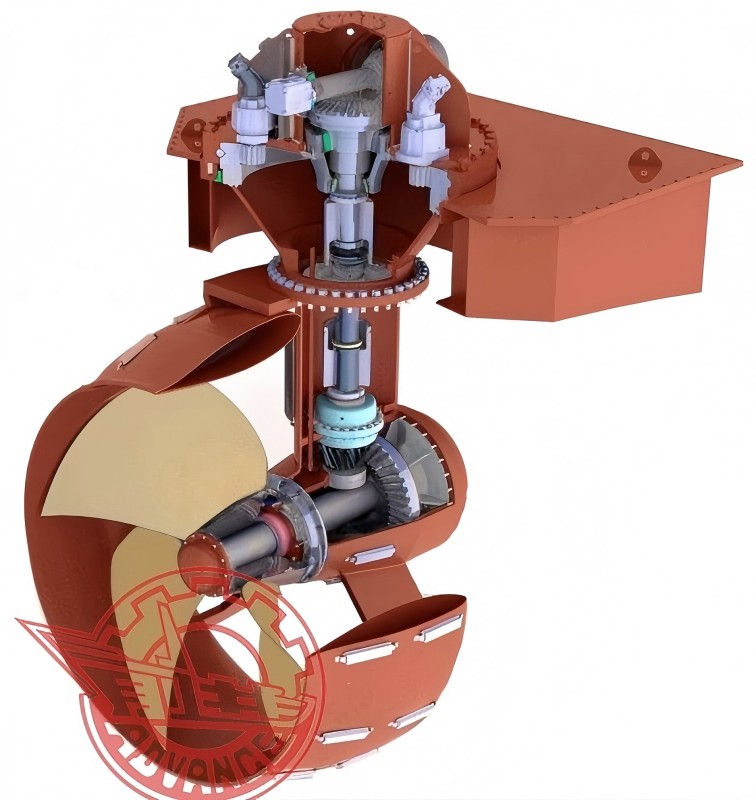

Marine Full Rotary Thrusters

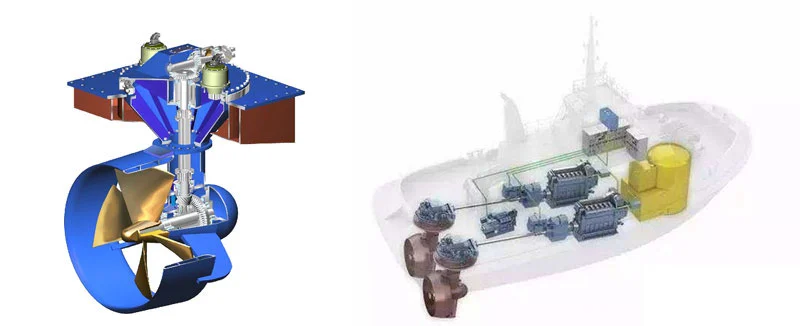

Marine full rotary thrusters are commonly utilized in a wide range of vessels, including offshore support vessels, ferries, and some specialized ships. They can work independently or in combination with other propulsion units to optimize the ship's performance according to different operational requirements.

Marine full rotary thrusters are commonly utilized in a wide range of vessels, including offshore support vessels, ferries, and some specialized ships. They can work independently or in combination with other propulsion units to optimize the ship's performance according to different operational requirements


The marine full rotary thrusters can change the thrust direction of the propeller arbitrarily within 360 degrees. When it is necessary to change the course, 100% of the propeller's thrust can be applied to the hull. This feature enables the ship to complete actions such as turning in place, moving sideways, moving forward at a very low speed, moving backward and making an emergency stop. Meanwhile, by changing the thrust direction of the propeller, the astern thrust can be greatly increased, which significantly improves the ship's controllability and maneuverability.


Model Maximum power
(kW/PS)
Enter the rotational speed
(r/min)
Propeller diameter
(mm(max)
Propeller thrust
kN(max)
Propeller type Drive form
ARP05 55/75 1000-2400 500 8.9 4-blade propeller fixed propeller with/without duct Host driver
Motor drive
PTO driven
Hydraulically driven
ARP10 103/140 1000-2400 600 16
ARP17 168/250 1000-2200 700 27
ARP24 240/326 1000-2200 800 39
ARP30 294/400 10002200 900 47
ARP37 368/500 1000-2200 1100 59
ARP50 515/700 900-1800 1300 83
ARP65 662/900 900-1800 1500 106
ARP80 810/1100 900-1800 1650 132
ARP100 1030/1400 900-1800 1800 167
ARP125 1250/1700 750-1500 2000 203
ARP150 1470/2000 750-1500 2200 238
ARP180 1764/2400 750-1500 2400 286
ARP200 2058/2800 750-1500 2600 334
ARP240 2350/3200 750-1500 2800 382
ARP280 2720/3700 600-1000 3000 442
ARP310 3080/4200 600-1000 3300 500
ACRP50 515/700 900-1800 1300 83 4-blade propeller adjustable propeller with/without duct Host driver
Motor drive
PTO driven
ACRP65 662/900 900-1800 1500 106
ACRP80 810/1100 900-1800 1650 132
ACRP100 1030/1400 900-1800 1800 167
ACRP125 1250/1700 750-1500 2000 203
ACRP150 1470/2000 750-1500 2200 238
ACRP180 1764/2400 750-1500 2400 286
ACRP200 2058/2800 750-1500 2600 334
ACRP240 2350/3200 750-1500 2800 382
ACRP280 2720/3700 600-1000 3000 442
ACRP310 3080/4200 600-1000 3300 500
