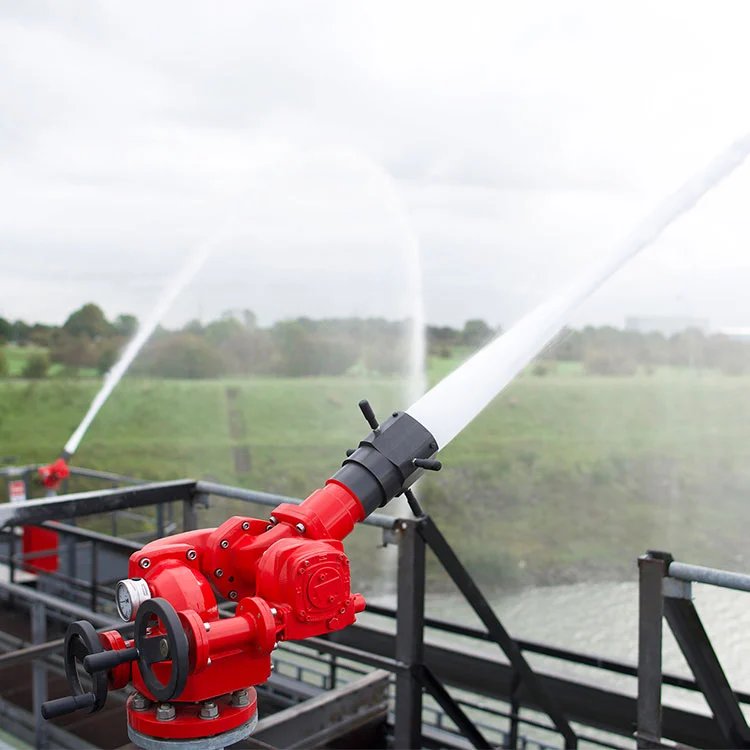

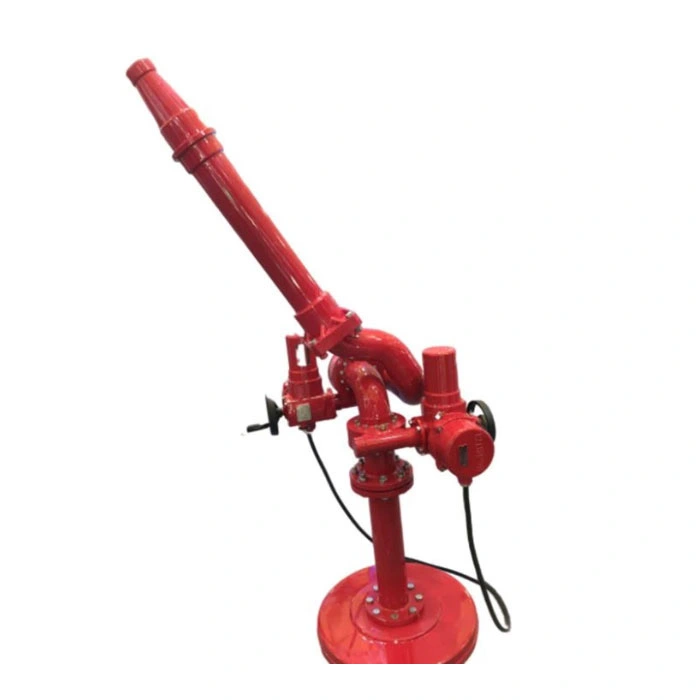

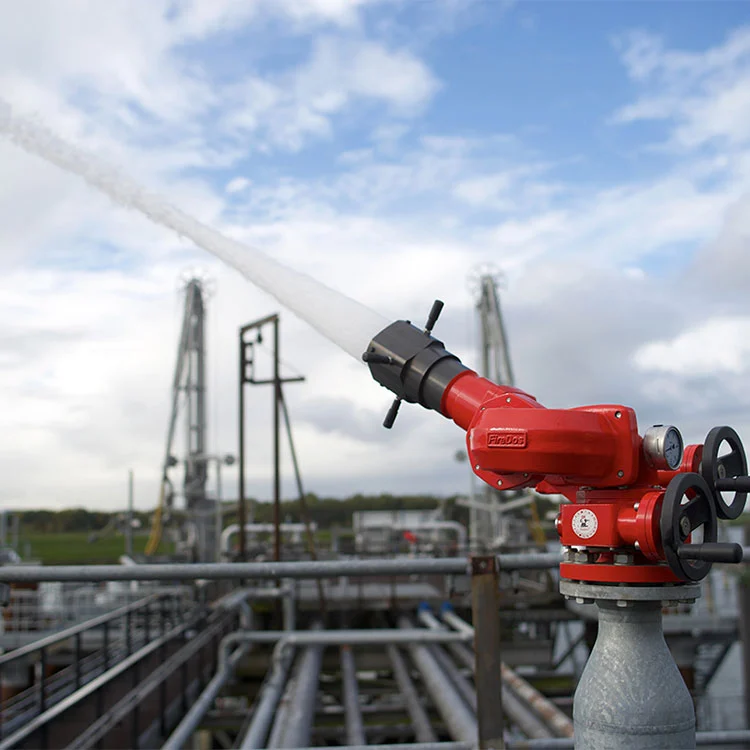

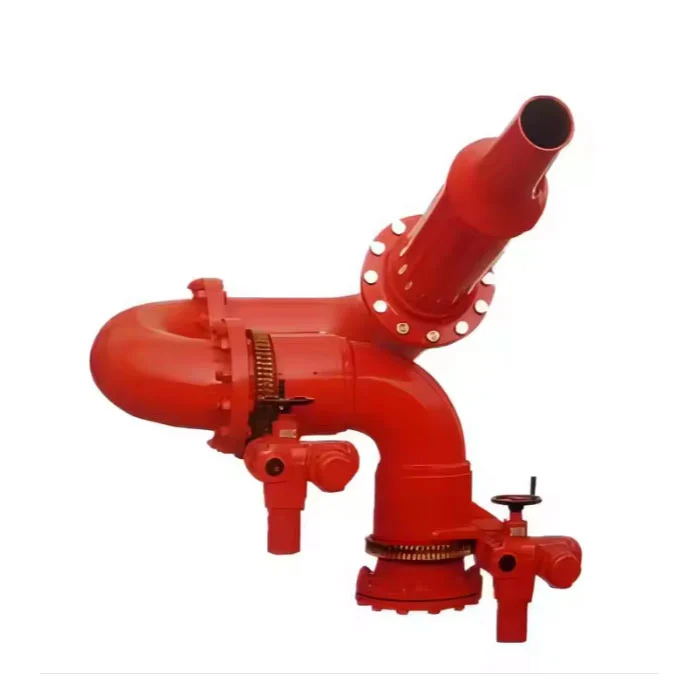

Our marine fire monitors are engineered using cutting-edge fluid dynamics principles and manufactured to the most rigorous inspection and testing standards. With globally leading technological advantages, they deliver high flow rates, concentrated spray patterns, and exceptional range for superior firefighting performance.
The marine fire monitors' nozzle types are categorized as: PS for Water Monitors, PL for Dual-Purpose Monitors (water/foam), and PZ for Combined Fire-Fighting Monitors (integrated functions)
| Marine Fire Water Monitors |
| Marine Fire Foam Monitors |
| Marine Dual-Purpose Fire Monitors |
| Marine Combined Fire-Fighting Monitor |
1. Nozzle Type of Fire-Fighting Monitor
(PS) = Water Monitor
(PL) = Dual-Purpose Monitor
PL = Dual-Purpose Fire-Fighting Monitor
PZ = Combined Fire-Fighting Monitor
2. Operation Mode (Feature Code)
HL = Handle
HR = Handwheel
EL (KD)* = Electric
HY (KY)* = Hydraulic
PN (KQ) = Pneumatic
3. Application Mode
F = Fixed
P = Portable
4. Additional Notes
KD = Electric Control (abbreviated as EC or ED)
KQ = Pneumatic Control (abbreviated as PC or PD)
Y = Portable
Note: Items marked with ()* comply with national standard models.
|
National Standard Model |
Effective Flow Rated Operating Pressure (m/m) (MPa) |
Inlet DN | |
| PS/PP/PL20 | 28.8-72 | 0.8 | DN50 |
| PS/PP/PL25 | 72-90 | 0.8 | DN50 |
| PS/PP/PL30 | 90-108 | 0.8 | DN50 |
| PS/PP/PL(KD)40 | 108-144 | 0.8 | DN65 |
| PS/PP/PL(KD)50 | 144-180 | 0.8 | DN80 |
| PS/PP/PL(KD)60 | 180-216 | 1.0 | DN80 |
| PS/PP/PL(KD)70 | 216-240 | 1.0 | DN80 |
| PS/PP/PL(KD)80 | 240-288 | 1.0 | DN100 |
| PS/PP/PL(KD)100 | 288-360 | 1.2 | DN100 |
| PS/PP/PL(KD)120 | 360-432 | 1.2 | DN150 |
| PS/PP/PL(KD)150 | 432-540 | 1.4 | DN150 |
| PS/PP/PL(KD)180 | 540-648 | 1.4 | DN150 |
| PS/PP/PL(KD)200 | 648-1080 | 1.4 | DN150 |
| 1080-1560 | 1.4 | DN200 | |
| 1560-1920 | 1.4 | DN250 | |
| 1920-3600 | 1.4 | DN300 | |
| — | 3600-4800 | 1.4 | DN400 |
