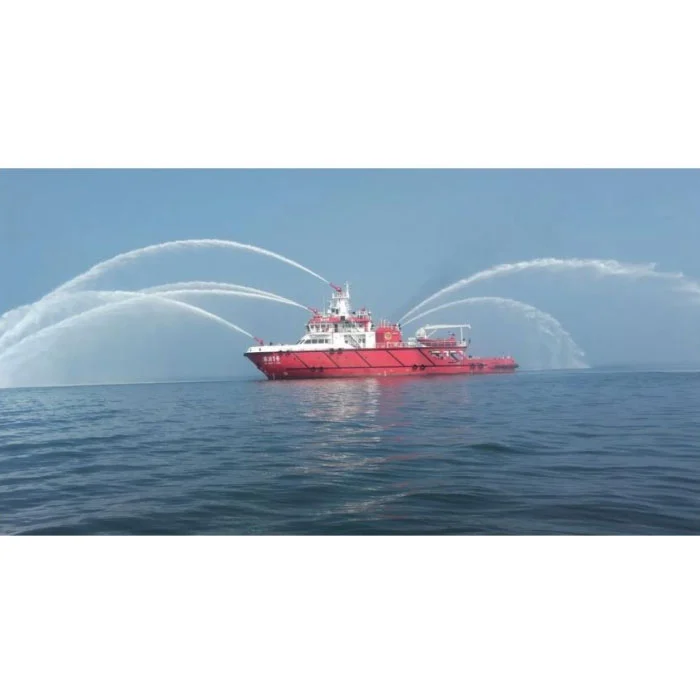

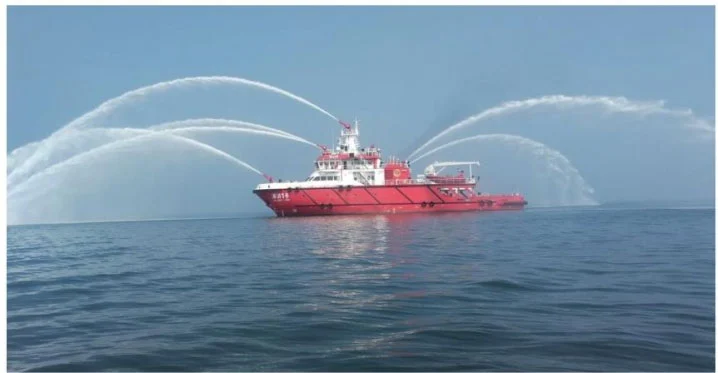

The marine external fire fighting system provides three levels of FiFi-1, FiFi-Il and FiFi-IIl. Based on the technical advantages of our fire-fighting water monitors and pump sets, with a more compact and stable product structure and a wider flow range and more concentrated water column range, combined with the cable and wireless electrical control system independently developed by the Company, which is a well-known product in the field of global marine external fire fighting system.
| Equipment | Type of External Fire-fighting System | |||
| I | II | Ⅲ | ||
| Minimum number of water monitors | 2 | 3 | 4 | 4 |
| Minimum discharge rate of each water monitor(m³/h) | 1200 | 2400 | 1800 | 2400 |
| Minimum number of fire-fighting pumps | 1 | 2 | 2 | |
| Minimum total capacity of fire-fighting pump(m³/h | 2400 | 7200 | 9600 | |
| Performance of water monitor: | ||||
| Minimum height ofwatermonitorjettrajecory abovewatersurface(m) | 45 | 70 | 70 | |
| Minimum range of water monitor(m) | 120 | 150 | 150 | |
| Minimum duration of fuel required for simultaneous and continuous operation of all water monitors(H) | 24 | 96 | 96 | |
| Fixed Foam System: | ||||
| Minimum number of foam monitors | — | 2 | ||
| Minimum discharge rate of each foam monitor(m³/h) | 300 | |||
| Continuous foam generation time(min) | — | 30 | ||
| Portable fire-fighting equipment: | ||||
| Portable foam generator | ||||
| Minimum foam supply rate(m³/min) | — | 100 | 100 | |
| Continuous foam generation time(min) | — | 30 | 30 | |
| Fire hose | ||||
| Number of fire-fighting hose hydrants and connectors on each side of the ship | 4 | 8 | 8 | |
| Equipment for firemen | 4 | 8 | 8 | |
