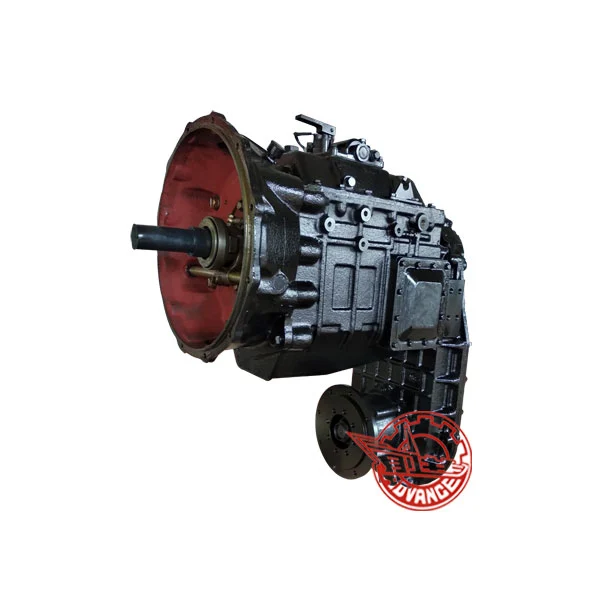

The BJ16 transmission gearbox for road roller is a mechanical multi-gear transmission, which adopts synchronizer fork shifting.
Main Data
Maximum input power: 120kW;
Maximum input speed: 2200 r/min;
Gears: 3 forward gears and 2 reverse gears;
Shifting mode: Synchronizer fork shifting;
Input type: Directly connected to the main clutch;
Output type: Flange, single output.
Applications
The BJ16 gearbox is widely used in 20-ton mechanical single-drum road rollers.
The BZ18A gearbox is a reduction gearbox with the transmission type of one-stage parallel shaft external meshing transmission and one-stage bevel gear transmission.
Main Data
Rated input speed: 2200 r/min;
Rated output torque: 5000 N·m;
Maximum output torque: 8000 N·m;
Input form: External spline shaft;
Output form: External spline shaft.
Applications
The BZ18A gearbox is widely applied to the working devices of 1m road milling machines.

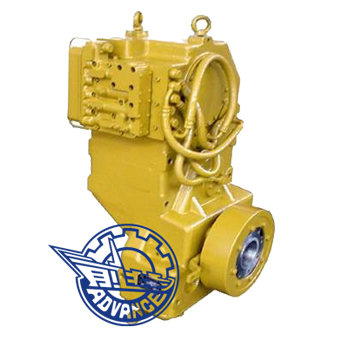

YD133 powershift transmission is a countershaft multi-speed transmission, electrical-hydraulic controlled. Speeds are 3 forward 3 reverse via corresponding shifting handle.
Main Data
Max input power: 130KW
Max input speed: 2600r/min
Max input torque: 1000N. m
Speeds: 3 forward 3 reverse
Shifting method: electric -hydraulic control
Input type: flange
Output type: flange, double outputs
Applications
YD133 powershift transmission is widely used in single steel roll roller.
Y L 1 3 / Y L 2 0 hydraulic transmission is a countershaft multi-speed hydraulic transmission, consists of a torque converter and a power shift gearbox, electric-hydraulic controlled and 2 forward and 2 reverse.
Main Data
Max engine power:
| YL13 | YL20 |
| 135KW | 194KW |
Max engine speed: 2200r/min
Speeds: 2 forward 2 reverse
Shifting method: electric-hydraulic control
Input type: the torque converter may be directly connected to SAE2# flywheel casing, or connected via flange or universal joint.
Output type: flange, single output
Applications
YL13 hydraulic transmission is widely used in 24t-28t rubber wheeled roller, and YL20 hydraulic transmission in 36t-40t rubber wheeled roller.
| Gearbox for road roller | |||
| Serial number | Product model | Application specifications | Remark |
| 1 | BJ16 | 20 tons | 3 forward 2 reverse, mechanical shift |
| 2 | DB132/YD133 | 22 tons/26 tons | 3 forward 3 reverse, electro-hydraulic shift |
| 3 | YL13 | 24 tons/28 tons | 2 forward 2 reverse, electro-hydraulic shift |
