The 106 gearbox is a transmission gearbox for maintenance machines, which adopts fork shifting and hydraulic control.
Main Technical Parameters
Rated input speed: 2300 r/min;
Rated output torque: 4000 N·m;
Maximum output torque: 8000 N·m;
Gears: 2 forward gears and 1 reverse gear;
Shifting mode: Controlled by a hydraulic cylinder, shifted by a fork, and the travel switch provides the in-place signal;
Input type: Flange;
Output type: Flange, single output.
Applications
The BJ06 gearbox is widely used in 1m road milling machines.

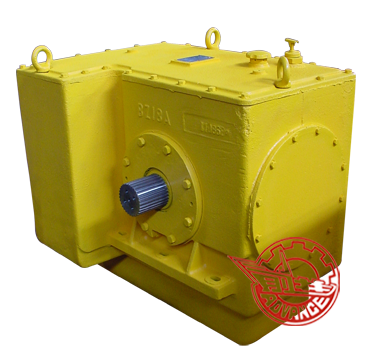

The BZ18A gearbox is a reduction gearbox with the transmission type of one-stage parallel shaft external meshing transmission and one-stage bevel gear transmission.
Main Technical Parameters
Rated input speed: 2200 r/min;
Rated output torque: 5000 N·m;
Maximum output torque: 8000 N·m;
Input form: External spline shaft;
Output form: External spline shaft.
Applications
The BZ18A gearbox is widely applied to the working devices of 1m road milling machines.
| Milling machine gearbox | |||
| Serial number | Product model | Application specifications | Remark |
| 1 | BZ18A | 1m road milling machine | |
| 2 | BJ06 | 1m road milling machine | |
