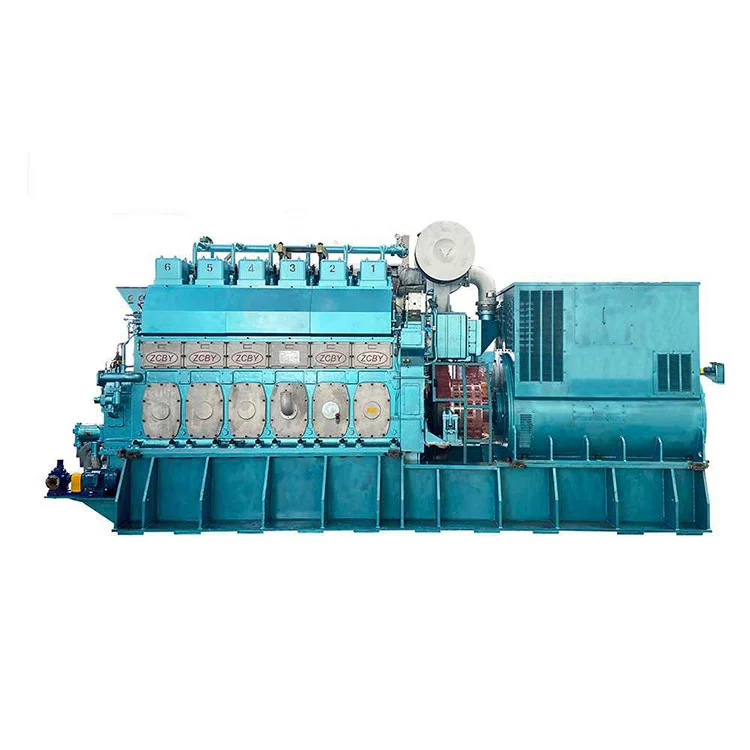

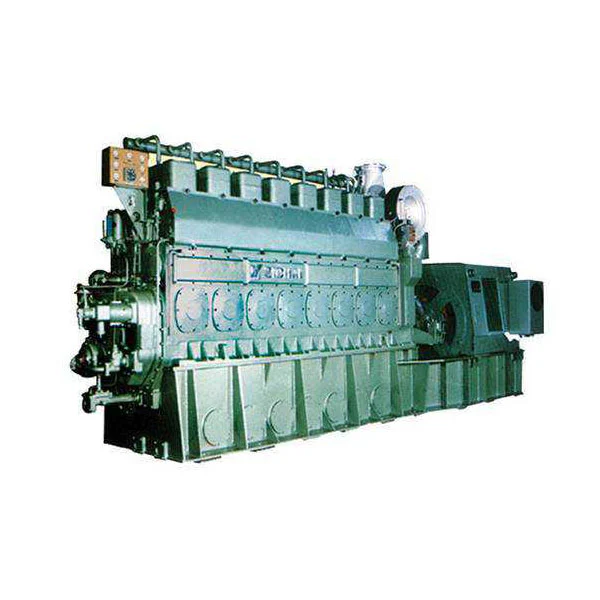

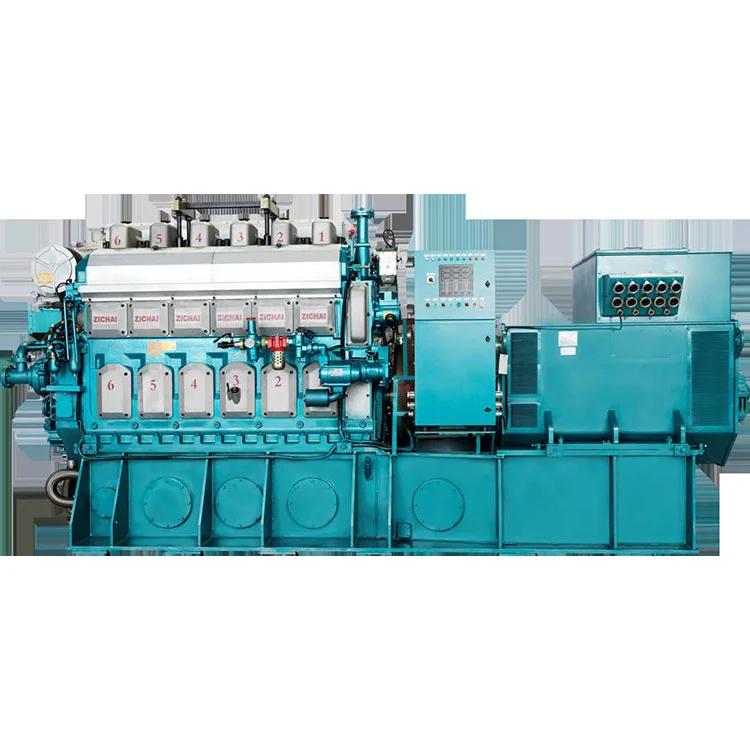

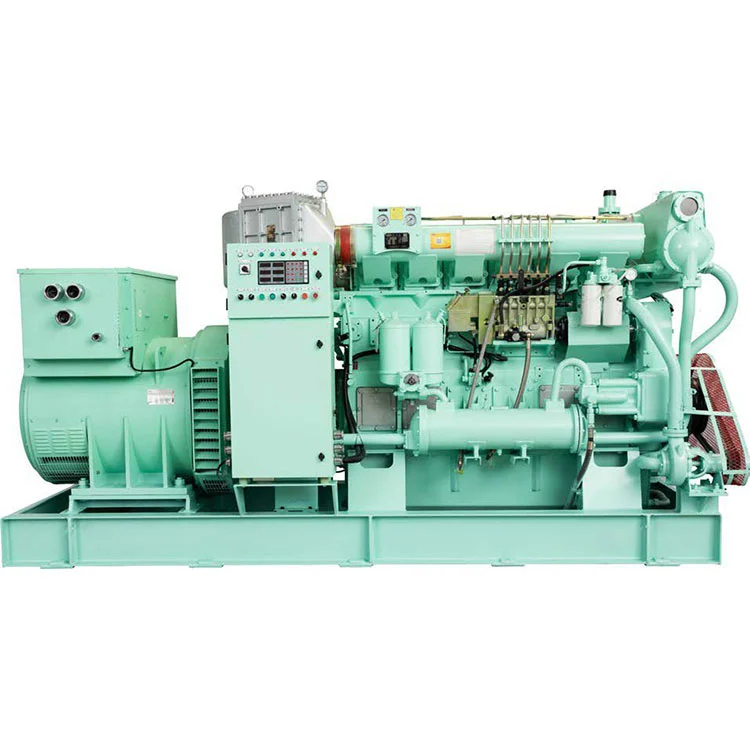

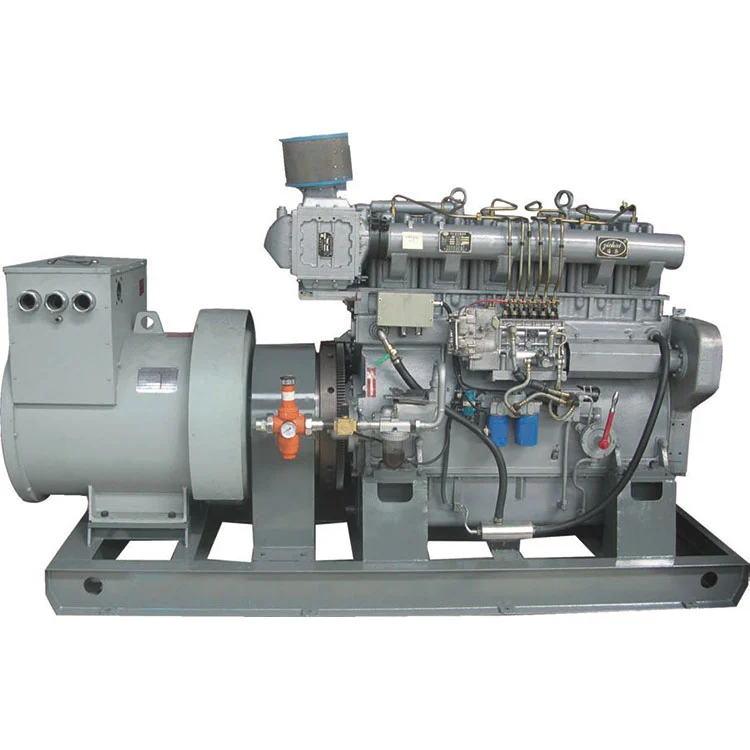

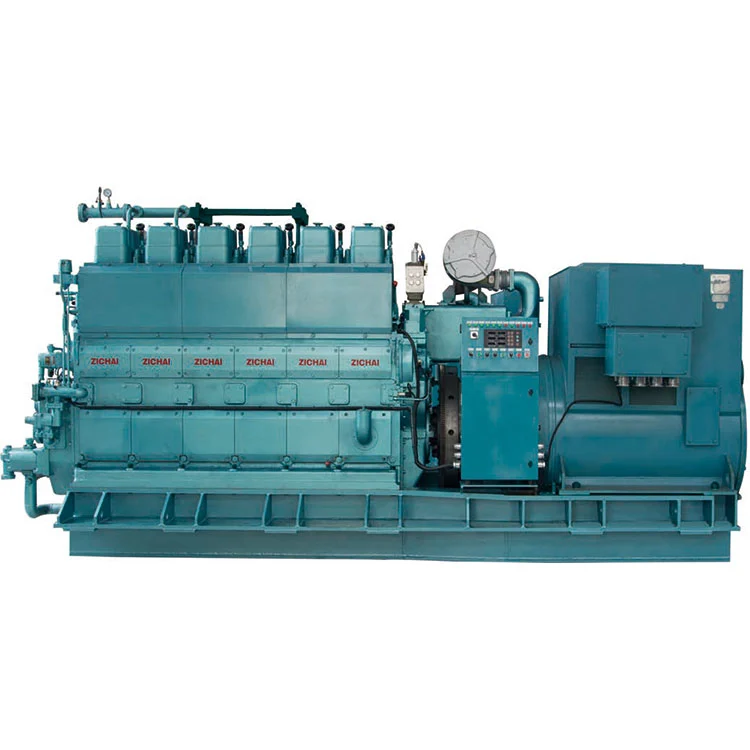

Zichai Marine Diesel Generator Sets

Cagon can offer Zichai marine diesel generator sets, as we cooperate with the famous brand. Zichai is a specialized manufacturing enterprise of high power medium medium-high speed diesel engine, which has a production history of 48 years. Headquartered in Zichai Industrial Park, Zibo Hi-tech Zone, with an annual production of more than 10000 sets, total power of 6 million kilowatt capacity.

Send Inquiry

Product Description

1. Stable power supply and quality assurance.

Zichai marine diesel generator sets should have sufficient and stable power supply, as well as excellent quality, in order to meet the long time full load operation.

2. Adapt to extreme working environment.

Frequent work at sea usually in the hot season, the face of high humidity, high temperature seawater environment, the generator set should still ensure normal operation.

3. Convenient installation.

A lot of cabin because of limited space, the size and assembly of the generator set must also be clever and flexible.

4. Simple operation.

Zichai marine diesel generator sets should be compact and easy to operate, equipped with Huaquan cloud intelligent control system to realize remote control and intelligent maintenance, start and stop and other functions.

Zichai 160 Series

								Diesel Engine		Machine Size (mm)
	(KW)	(KVA)	(r/min)	(V)	(A)	(Hz)		Diesel Engine		Machine Size (mm)
Model	Power	Rated Capacity	Rated Speed	Rated Voltage	Rated Current	Frequency	Power Factor	Model	Power(KW)	Length	Width	Height
CCFJ200J-W	200	250	1000	400	361	50	0.8	EL6160ZLD-13	257	3525	1210	1540
CCFJ250J-W	250	312.5	1000	400	451	50	0.8	EL6160ZLD-11	294	3625	1210
CCFJ300J-W	300	375	1000	400	541	50	0.8	EL6160ZLD-10	330	3625	1210	1540

Zichai 170 Series

Model	(KW) Power	(KVA) Rated Capacity	(r/min) Rated Speed	(V) Rated Voltage	(A) Rated Current	(Hz) Frequency	Power Factor	Diesel Engine		Machine Size (mm)
Model	(KW) Power	(KVA) Rated Capacity	(r/min) Rated Speed	(V) Rated Voltage	(A) Rated Current	(Hz) Frequency	Power Factor	Model	(KW) Power	Length	Width	Height
CCFJ200J-W	200	250	1000	400	361	50	0.8	EZ6170ZLD-2	275	3470	1425	2030
CCFJ250J-W	250	312.5	1000	400	451	50	0.8	EZ6170ZLD-1	300	3470	1425	2030
CCFJ300J-W	300	375	1000	400	540	50	0.8	EZ6170ZLD	330	3570	1425	2030
CCFJ350J-W	350	437.5	1000	400	632	50	0.8	EZ6170ZLD-10	400	3570	1425	2030
CCFJ400J-W	400	500	1000	400	720	50	0.8	EZ8170ZLD	441	4225	1540	2250
CCFJ450J-W	450	562.5	1500	400	812	50	0.8	EZ8170ZLCZ-7	540	4100	1540	2250
CCFJ500J-W	500	625	1500	400	902	50	0.8	EZ8170ZLD-6	600	4100	1540	2250

Zichai 180 Series

Model	(KW) Power	(KVA) Rated Capacity	(r/min) Rated Speed	(V) Rated Voltage	(A) Rated Current	(Hz) Frequency	Power Factor	Diesel Engine		(mm)
Model	(KW) Power	(KVA) Rated Capacity	(r/min) Rated Speed	(V) Rated Voltage	(A) Rated Current	(Hz) Frequency	Power Factor	Model	(KW) Power	Length	Width	Height
CCFJ200J-W	200	250	1000	400	361	50	0.8	EZ6180ZLD-37	250	3555	1480	2028
CCFJ250J-W	250	312.5	1000	400	451	50	0.8	EZ6180ZLD-16	294	3555	1480	2028
CCFJ300J-W	300	375	1000	400	541	50	0.8	EZ6180ZLD-15	330	3570	1450	2028
CCFJ350J-W	350	437.5	1000	400	632	50	0.8	EZ6180ZLD-13	400	3880	1500	2028
CCFJ400J-W	400	500	1000	400	722	50	0.8	EZ6180ZLD-13A	440	3800	1500	2100
CCFJ450J-W	450	562.5	1000	400	812	50	0.8	EZ8180ZLD-14A	500	4230	1530	2250
CCFJ500J-W	500	625	1000	400	902	50	0.8	EZ8180ZLD-13B	570	4305	1525	2270
CCFJ550J-W	550	687.5	1500	400	992	50	0.8	EZ8180ZLD-4	661	4305	1525	2270
CCFJ600J-W	600	750	1500	400	1083	50	0.8	EZ8180ZLD-2A	772	4580	1525	2250
CCFJ700J-W	700	875	1500	400	1263	50	0.8	EZ8180ZLD-1	800	4580	1525	2365

Zichai 200 Series

Model	(KW) Power	(KVA) Rated Capacity	(r/min) Rated Speed	(V) Rated Voltage	(A) Rated Current	(Hz) Frequency	Power Factor	Diesel Engine		Machine Size (mm)
Model	(KW) Power	(KVA) Rated Capacity	(r/min) Rated Speed	(V) Rated Voltage	(A) Rated Current	(Hz) Frequency	Power Factor	Model	(KW) Power	Length	Width	⾼ Height
CCFJ600J-W	600	750	1000	400	1083	50	0.8	EZC6200ZLD-26	662	4800	1605	3116
CCFJ700J-W	700	875	1000	400	1263	50	0.8	EZC6200ZLD-29	809	5085	1570	2420
CCFJ750J-W	750	937.5	1000	400	1353	50	0.8	EZC6200ZLD-2	882	5625	1555	2870
CCFJ800J-W	800	1000	1000	400	1443	50	0.8	EZC6200ZLD-2	882	5625	1555	2870
CCFJ900J-W	900	1125	1000	400	1624	50	0.8	EZC6200ZLD-1	992	5725	1555	2870
CCFJ1000J-W	1000	1250		400	1804	50	0.8	EZC6200ZLD	1103	5825	1555	2870

Zichai 210 Series

Model	(KW) Power	(KVA) Rated Capacity	(r/min) Rated Speed	(V) Rated Voltage	(A) Rated Current	(Hz) Frequency	Power Factor	Diesel Engine		Machine Size (mm)
Model	(KW) Power	(KVA) Rated Capacity	(r/min) Rated Speed	(V) Rated Voltage	(A) Rated Current	(Hz) Frequency	Power Factor	Model	(KW) Power	Length	Width	⾼ Height
CCFJ400J-W	400	500	600	400	721	50	0.8	E6210ZLD-11	490	5125	1560	2645
CCFJ450J-W	450	562.5	750	400	812	50	0.8	E6210ZLD-11	490	5250	1650	2700
CCFJ500J-W	500	625	750	400	902	50	0.8	E6210ZLD-3	551	5560	1652	2700
CCFJ550J-W	550	687.5	750	400	992	50	0.8	E6210ZLD-10	610	5560	1652	2700
CCFJ600J-W	600	750	750	400	1083	50	0.8	E6210ZLD-5	662	5285	1510	2830
CCFJ700J-W	700	875	1000	400	1263	50	0.8	E6210ZLD-16	809	5610	1665	2830
CCFJ800J-W	800	1000	1000	400	1443	50	0.8	E6210ZLD-19	882	5610	1665	2830

Zichai 250 Series

Model	(KW) Power	(KVA) Rated Capacity	(r/min) Rated Speed	(V) Rated Voltage	(A) Rated Current	(Hz) Frequency	Power Factor	Diesel Engine		Machine Size (mm)
Model	(KW) Power	(KVA) Rated Capacity	(r/min) Rated Speed	(V) Rated Voltage	(A) Rated Current	(Hz) Frequency	Power Factor	Model	(KW) Power	Length	Width	Height
CCFJ800J-W	800	1000	750	400	1443	50	0.8	LB6250ZLD-4	882	6511	2050	2735
CCFJ900J-W	900	1125	750	400	1624	50	0.8	LB6250ZLD-6	1000	6615	2050	2735
CCFJ1000J-W	1000	1250	750	400	1804	50	0.8	LB6250ZLD-2	1103	6615	2050	2735
CCFJ1000J-W	1000	1250	750	400	1804	50	0.8	LB8250ZLD-1	1103	7035	1680	2940
CCFJ1200J-W	1200	1500	750	400	2165	50	0.8	LB8250ZLD-4	1324	7230	1680	2940
CCFJ1500J-W	1500	1875	750	400	2706	50	0.8	LC8250ZLD-6	1617	6991	1730	3110

Zichai 260 Series

Model	(KW) Power	(KVA) Rated Capacity	(r/min) Rated Speed	(V) Rated Voltage	(A) Rated Current	(Hz) Frequency	Power Factor	Diesel Engine		Machine Size (mm)
Model	(KW) Power	(KVA) Rated Capacity	(r/min) Rated Speed	(V) Rated Voltage	(A) Rated Current	(Hz) Frequency	Power Factor	Model	(KW) Power	Length	Width	Height
CCFJ1000J-W	1000	1250	600	400	1804	50	0.8	6N260ZLD-7	1103	6146	2051	3230
CCFJ1200J-W	1200	1500	750	400	2165	50	0.8	6N260ZLD-5	1324	6245	2051	3230
CCFJ1500J-W	1500	1875	750	400	2706	50	0.8	6N260ZLD-1	1610	6093	2051	3230
CCFJ1800J-W	1800	2250	750	400	3248	50	0.8	8N260ZLD-3	1960	6835	2055	3330
