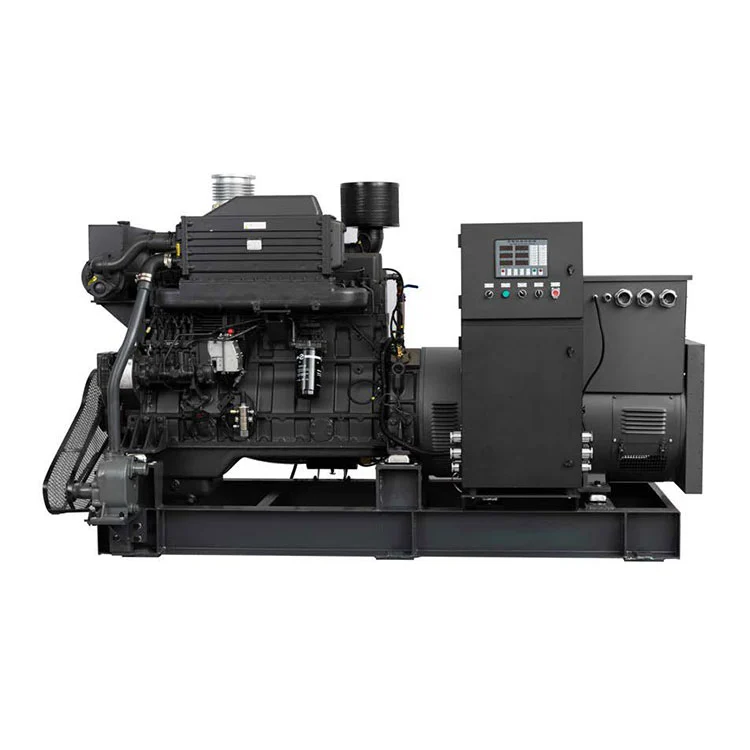

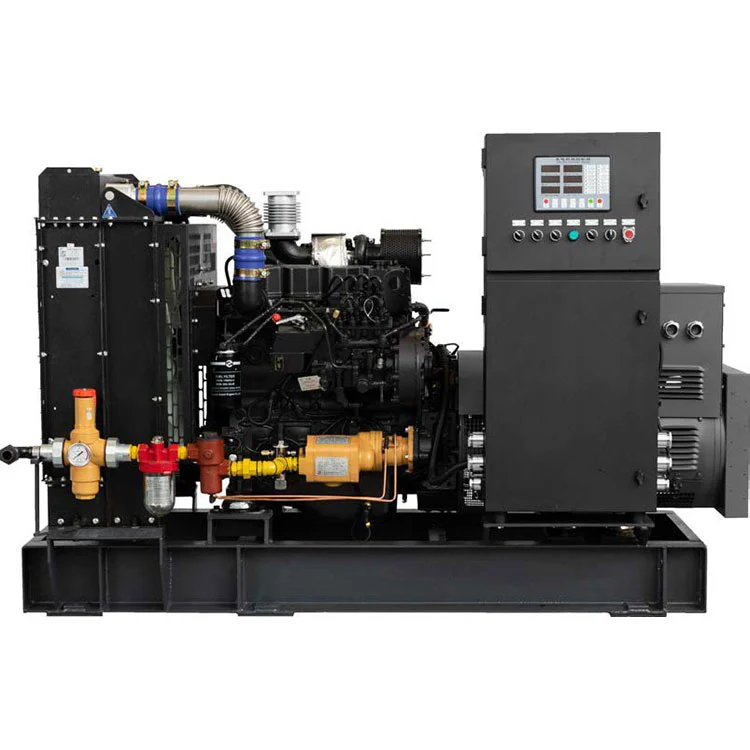

Shangchai Marine Diesel Generator Sets

. The Shangchai marine diesel generator sets feature a compact and rational design. Employing an integral crankshaft, a girder - type engine block, a plain - cut connecting rod, and a short piston, they achieve a more compact appearance.

. These generator sets are equipped with a new - type re - entrant combustion chamber. This effectively elevates the fuel injection pressure and optimizes the combustion process, thus meeting environmental protection standards. Their exhaust pollutant emission values comply with the regulations of JB8891 - 1999. Meanwhile, the noise level reaches the requirements of GB14097 - 1999, with a certain margin left.

. In terms of the lubrication and cooling systems, the generator sets of Shanghai Diesel Engine Co., Ltd. have undergone optimized design, reducing the number of external pipelines and components. Additionally, by adopting technologies such as an integral brushless AC generator, leakage problems have been significantly reduced, greatly enhancing their reliability.

. These Shangchai marine diesel generator sets are also equipped with J98 and J114b type exhaust gas turbochargers, endowing them with excellent high - altitude operation capabilities. Even when used in high - altitude areas at an altitude of 5000 meters, the power reduction is controlled within 3%.

Shangchai SC4 series

Shangchai Sc7 series

Shangchai G128 series

Shangchai SC4H series
