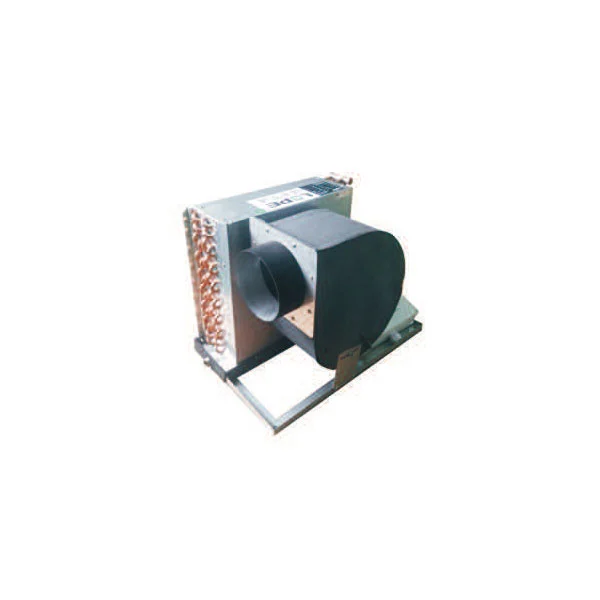

Compact indoor unit with ultra-quiet operation

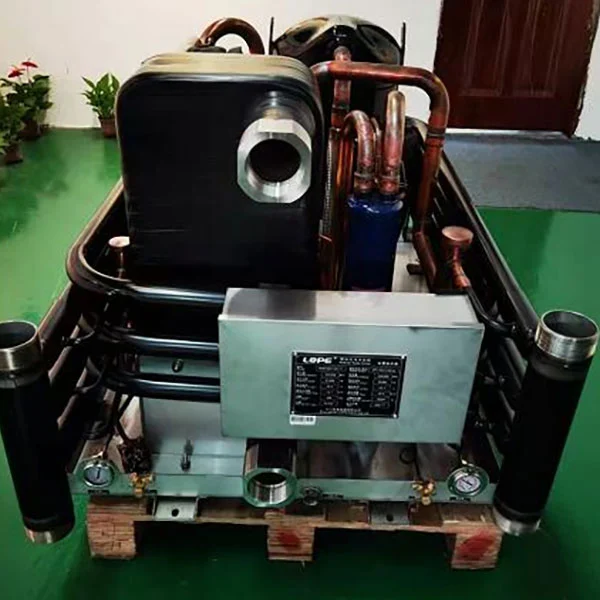

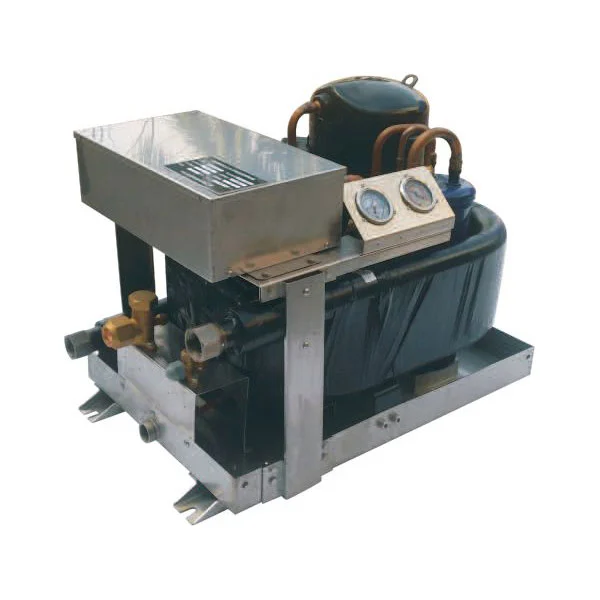

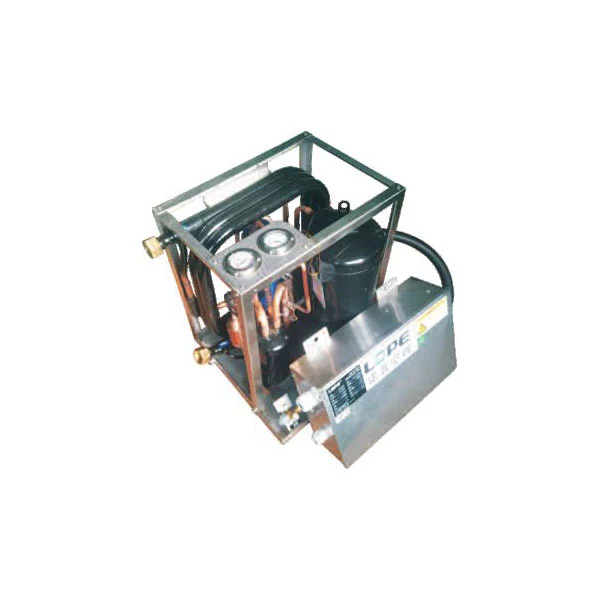

Outdoor unit built for harsh marine conditions
Indoor fan can rotate 90° for flexible cabin installation
Split type marine air conditioners have stainless steel housing throughout
Corrosion-resistant nickel-copper heat exchanger
Optional soft starter reduces power surges at startup
Features LOPE's exclusive D-Smart controller:
✓ Real-time performance monitoring
✓ Automatic fault diagnosis
✓ User-friendly interface
✓ Space-saving flexible installation
✓ Whisper-quiet cabin operation
✓ Split type marine air conditioners are built to withstand saltwater environments
✓ Reduced electrical stress on ship's power system
| Model | MC9-E2A | MC12-E2A | MC18-E2A | MC24-E2A | MC36-S2A/T | MC72-S2A/T | ||
| Power supply | Ph-V-Hz | 1Ph/220V/50Hz | 3Ph/380V/50Hz | |||||
| Coolling | Capacity | BTU | 9, 000 | 12, 000 | 18, 000 | 24, 000 | 36, 000 | 72, 000 |
| Input power | W | 620 | 840 | 1, 060 | 1, 260 | 2, 600 | 4, 300 | |
| Rated current | A | 3.3 | 4.5 | 6.0 | 7.8 | 5.5 | 8.0 | |
| EER | 4.2 | 4.1 | 4.1 | 4.1 | 4.0 | 4.0 | ||
| Heating | Capacity | BTU | 10, 000 | 13, 000 | 19, 900 | 27, 300 | 44, 500 | 75, 000 |
| Input power | W | 630 | 860 | 1, 100 | 1, 560 | 3, 200 | 5, 780 | |
| Rated current | A | 3.5 | 4.6 | 6.6 | 8.7 | 6.3 | 9.5 | |
| COP | 4.4 | 3.8 | 4.0 | 4.2 | 4.0 | 4.1 | ||
| Max.current | A | 4.8 | 6.3 | 9.0 | 10.2 | 7.6 | 12.2 | |
| Sea water flow | m³/h | 0.5 | 0.65 | 1.0 | 1.4 | 2.2 | 3.8 | |
| Sea water pipe | mm | G1/2" | G3/4" | G1" | ||||
| Refrigerant type | R410a | |||||||
| Connecting pipe | 1/4"、3/8" | 1/2"、1/4" | 1/2"、1/4" | 5/8"、3/8" | 3/4"、3/8" | 778 3/8" | ||
| Dimension(L*W*H) | mm | 416×331×447 | 477×322×450 | 664X436×495 | 664×436X490 | |||
| Net weight | Kg | 23 | 23.5 | 28 | 38.5 | 67 | 81 | |
| Noise level | dB(A) | ≤50 | ≤50 | ≤50 | ≤50 | ≤55 | ≤55 | |
| Condensed water pipe | mm | G1/2" | G3/4" | |||||

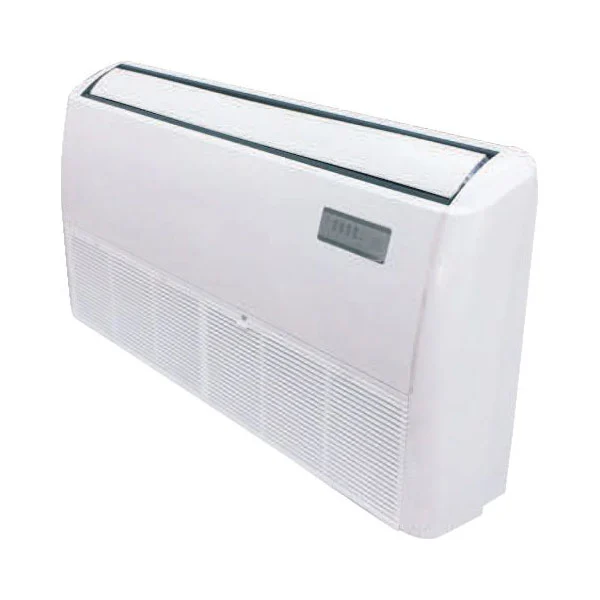

| Floored | ||||||
| Model | MA9-E2A | MA12-E2A | MA18-E2A | MA24-E2A | MA36-E2A | |
| Power supply | Ph-V-Hz | 1Ph/220V/50Hz | ||||
| Capacity | BTU | 9, 000 | 12, 000 | 18, 000 | 24, 000 | 36, 000 |
| Capacity | BTU | 10, 000 | 13, 300 | 20, 100 | 27, 500 | 43, 900 |
| Input power | W | 140 | 140 | 200 | 360 | 2×200 |
| Refrigerant type | R410a | |||||
| Connecting pipe | 1/4"、3/8" | 1/2"、1/4" | 1/2"、1/4" | 5/8"、3/8" | 3/4"、3/8" | |
| Dimension(L*W*H) | mm | 495×357×331 | 558×357×395 | 618×380×432 | 1030×365×405 | |
| air flow | m³/h | 630 | 630 | 810 | 1, 150 | 2×810 |
| Noise level | dB(A) | ≤52 | ≤52 | ≤54 | ≤59 | ≤67 |
| Net weight | Kg | 14 | 15 | 19 | 25 | 30.5 |
| Fan duct size | mm | φ150 | ||||
| Condensed water pipe | mm | G3/4" | ||||

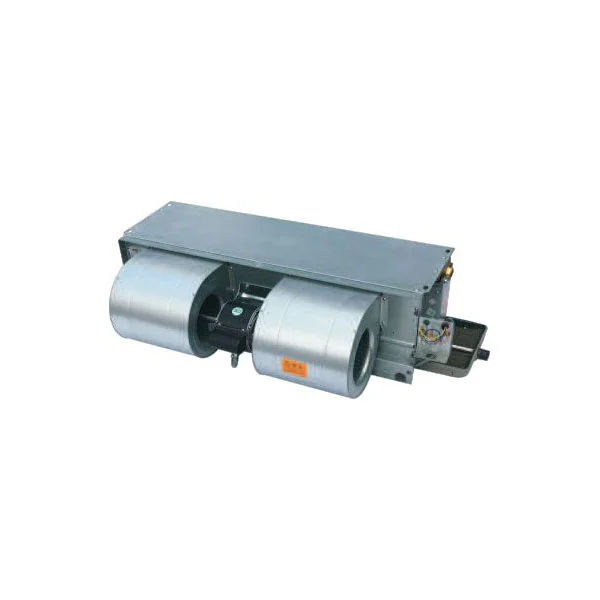

| Horizontal | ||||||
| Model | MA12-E2B | MA18-E2B | MA24-E2B | MA36-E2B | ||
| Power supply | Ph-V-Hz | 1Ph/220V/50Hz | ||||
| Capacity | BTU | 12, 000 | 18, 000 | 24, 000 | 36, 000 | |
| Capacity | BTU | 13, 800 | 20, 700 | 27, 600 | 41, 400 | |
| Input power | W | 70 | 108 | 150 | 215 | |
| Refrigerant type | R410a | |||||
| Connecting pipe joints | nch | 1/2"、1/4" | 5/8"、3/8" | 3/4"、3/8" | ||
| air flow | m³/h | 700 | 850 | 1, 350 | 2, 000 | |
| Noise leve | dB(A) | ≤40 | ≤42 | ≤47 | ≤49 | |
| Net weight | Kg | 20 | 23 | 34 | 41 | |
| Dimension(L*W*H) | mm | 985X465×240 | 1085×465×240 | 1485×465×240 | 1685×465×240 | |
| Condensed water pipe | mm | G3/4" | ||||

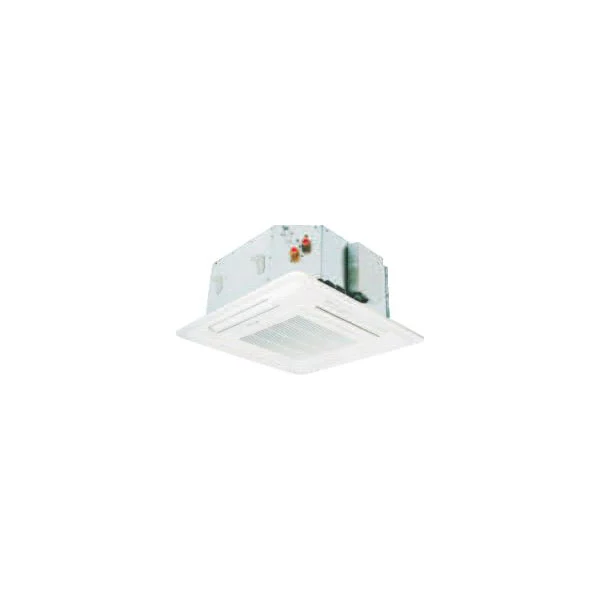

| Ceiling Cassette | |||||
| Model | MA18-E2E | MA24-E2E | MA36-E2B | MA48-E2E | |
| Power supply | Ph-V-Hz | 1Ph/220V/50Hz | |||
| Capacity | BTU | 18, 000 | 24, 000 | 36, 000 | 48, 000 |
| Capacity | BTU | 18, 750 | 26, 600 | 43, 300 | 52, 500 |
| nput power | W | 76 | 132 | 152 | 189 |
| Refrigerant type | R410a | ||||
| Connecting pipe joints | inch | 1/2"、1/4" | 5/8"、3/8" | 3/4"、3/8" | |
| air flow | m³/h | 850 | 1, 360 | 1, 700 | 2, 040 |
| Noise level | dB(A) | ≤43 | ≤45 | ≤47 | ≤50 |
| Net weight | Kg | 21 | 27 | 35.5 | |
| Dimension(L*W*H) | mm | 582×582×265 | 712×712×290 | 827×827×290 | |
| Dimension(L2*W2*H2) | mm | 680×680×30 | 830×830×30 | 980×980×30 | |
| Condensed water pipe | mm | φ26 | |||
