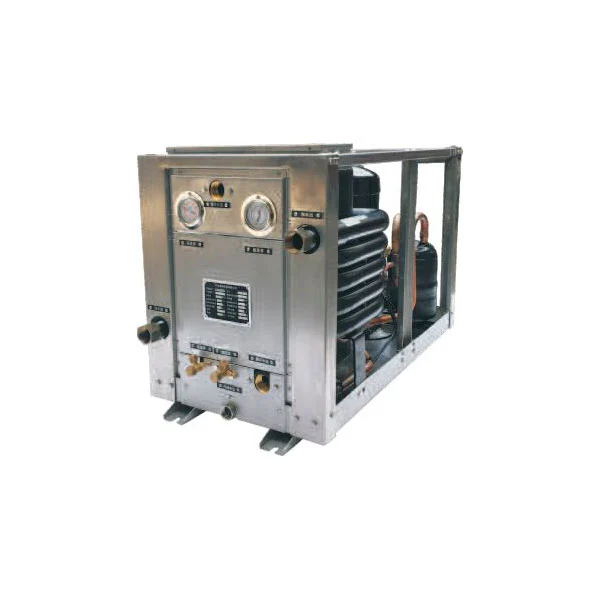

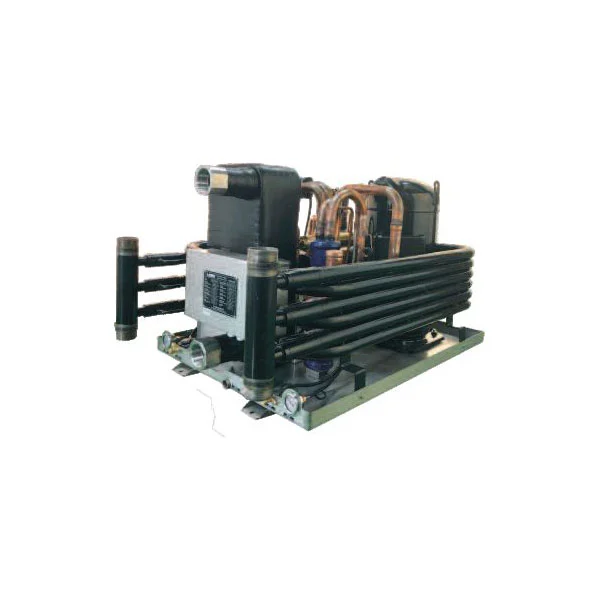

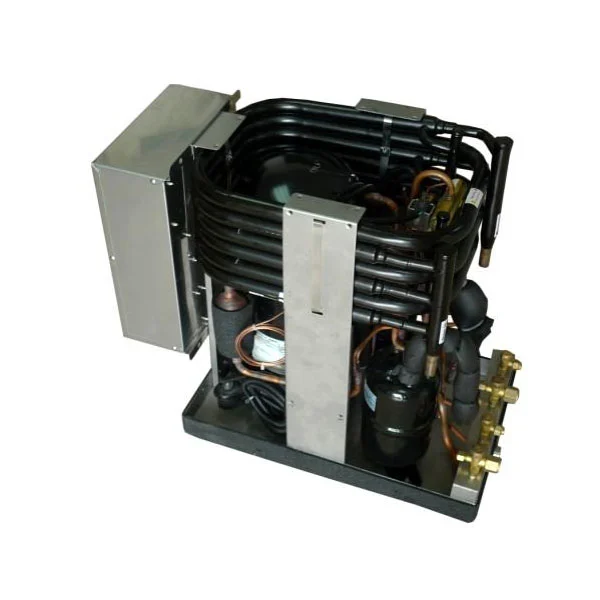

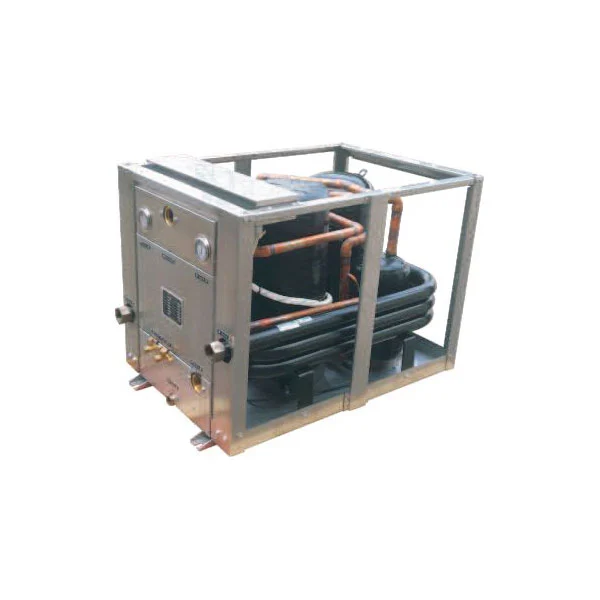

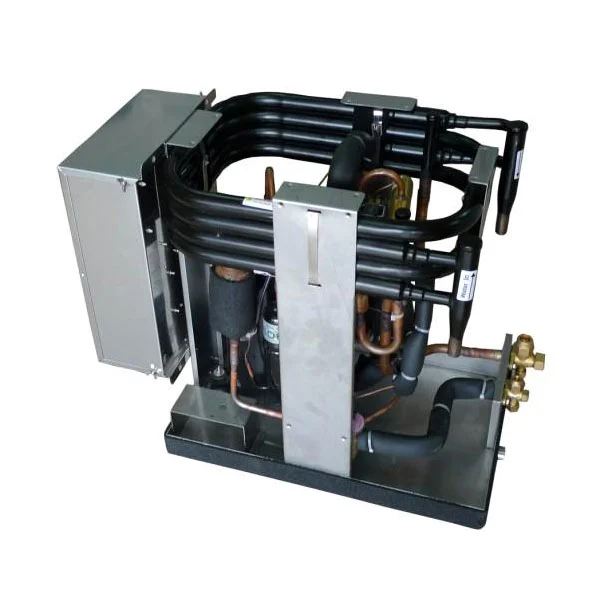

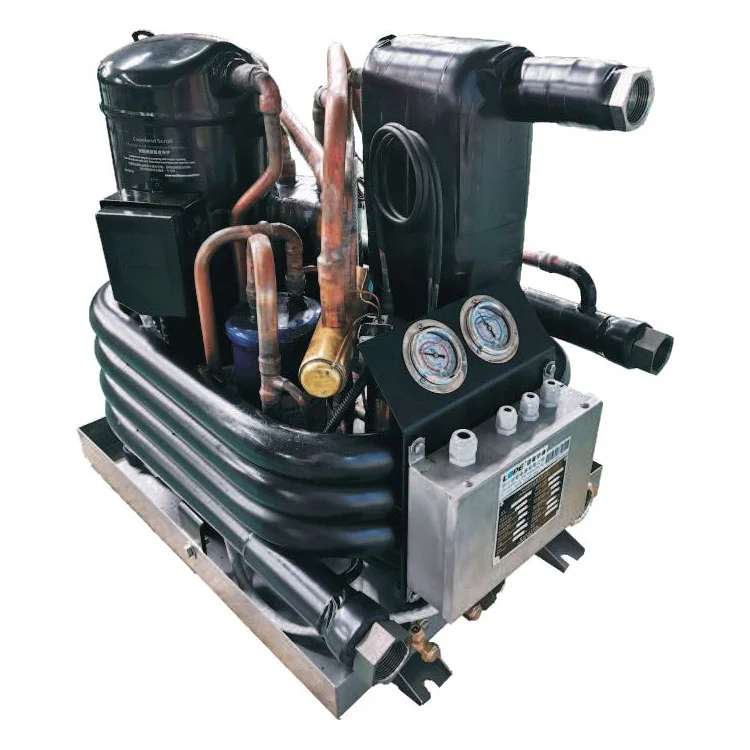

Flexible & Compact Design
Plug-and-play modular units (36,000-180,000 BTU each)
Combine 1-6 units for custom cooling capacity

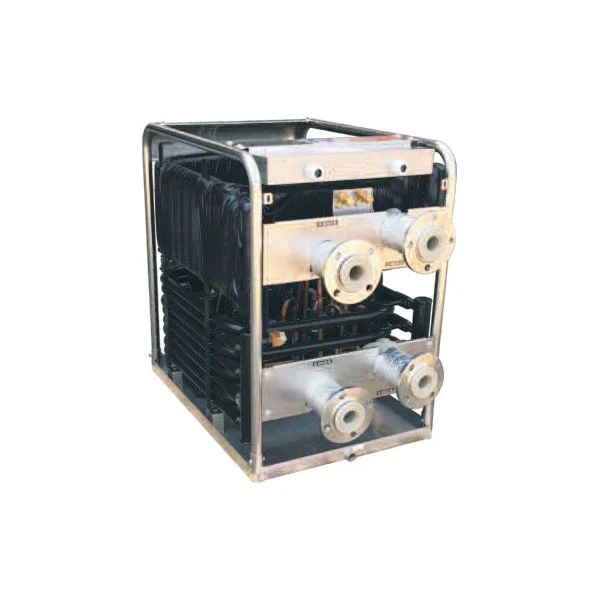

Marine modular chillers is perfect for space-conscious marine applications

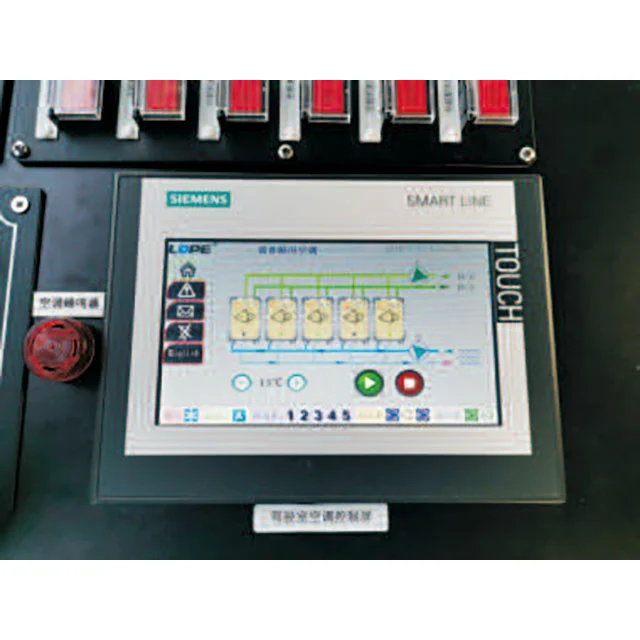

Smart Energy Management
Automatic load-based operation
Compressors activate only when needed
Cuts energy waste by up to 30% vs conventional systems
Built for Marine Environments
All-in-one sealed refrigerant circuits
No messy onsite assembly required
Pre-piped for quick installation
Reliability You Can Trust
Self-contained units provide automatic backup
Keeps cooling online even if one module fails
Proven on high-speed catamarans and ferries
✔ Silent scroll compressors
✔ Smart 4-way valve operation
✔ Corrosion-resistant coaxial condensers
✔ Easy-read pressure gauges
✔ Self-draining pans
Special knurled titanium coaxial tubes
Handles poor quality seawater
Ideal for cruise ships and commercial vessels
| Model | MWA36-S2C/T | MWA48-S2C/T | MWA60-S2C/T | MWA72-S2C/T | ||
| Powersupply | Ph-V-Hz | 3Ph/380V/50Hz | ||||
| Coollng | Capacity | BTU | 36, 000 | 48, 000 | 60, 000 | 72, 000 |
| Input power | W | 2, 600 | 3, 460 | 4, 480 | 5, 200 | |
| Rated current | A | 4.6 | 6.2 | 8.0 | 9.2 | |
| EER | 4.0 | 4.0 | 3.9 | 4.0 | ||
| Heating | Capacity | BTU | 44, 500 | 59, 300 | 75, 000 | 89, 000 |
| Input power | W | 3, 250 | 4, 330 | 5, 780 | 6, 500 | |
| Rated current | A | 5.7 | 7.6 | 10.3 | 11.4 | |
| COP | 4.0 | 4.0 | 3.8 | 4.0 | ||
| Max.current | A | 7.4 | 9.9 | 13.6 | 14.8 | |
| Seawaterflow | m³/h | 2.3 | 3.0 | 3.8 | 4.5 | |
| Chiller water flow | m³/h | 1.8 | 2.4 | 3.1 | 3.6 | |
| Seawaterpipe | G1" | |||||
| Chillerwaterpipe | G1" | |||||
| Condensed water pipe | mm | G3/4" | ||||
| Noiselevel | dB(A) | ≤52 | ≤55 | ≤62 | ≤65 | |
| Dimension(L*W*H) | mm | 694X433X590 | 888×415×540 | 860X559X580 | ||
| Netweight | Kg | 84 | 90 | 101 | 107 | |
| Refrigerant type | R410a | |||||
| Model | MWA90-S2C/T | MWA120-S2C/T | MWA150-S2C/T | MWA180-S2C/T | ||
| Powersupply | Ph-V-Hz | 3Ph/380V/50Hz | ||||
| Coollng | Capacity | BTU | 90, 000 | 120, 000 | 150, 000 | 180, 000 |
| Input power | W | 6, 230 | 9, 030 | 10, 360 | 12, 430 | |
| Rated current | A | 11.8 | 16.4 | 19.5 | 23.4 | |
| EER | 4.0 | 3.9 | 4.2 | 4.2 | ||
| Heating | Capacity | BTU | 115, 000 | 158, 000 | 189, 800 | 227, 700 |
| Input power | W | 7, 500 | 11, 300 | 12, 940 | 15, 530 | |
| Rated current | A | 13.5 | 19.6 | 23 | 27.6 | |
| COP | 4.5 | 4.0 | 4.3 | 4.3 | ||
| Max.current | A | 15.4 | 23.8 | 29 | 34.8 | |
| Seawaterflow | m³/h | 5.8 | 8.0 | 9.6 | 11.5 | |
| Chiller water flow | m³/h | 4.6 | 6.1 | 7.6 | 9.1 | |
| Seawaterpipe | G1-1/4" | 2XG1-1/4" | ||||
| Chillerwaterpipe | G1-1/4" | G1-1/2" | ||||
| Condensed water pipe | mm | G3/4" | ||||
| Noiselevel | dB(A) | ≤67 | ≤71 | ≤74 | ≤78 | |
| Dimension (L*W*H) | mm | 910×600×650 | 910X600×794 | |||
| Netweight | Kg | 135 | 158 | 215 | 255 | |
| Refrigeranttype | R410a | |||||
| Model | MWA60-S2D/T | MWA72-S2D/T | MWA90-S2D/T | MWA105-S2D/T | |||
| Powersupply Ph-V-Hz | 3Ph/380V/50Hz | ||||||
| Coollng | Capacity BTU | 60.000 | 72.000 | 90.000 | 105.000 | ||
| Inputpower W | 4.180 | 5.016 | 6.270 | 7.315 | |||
|
A Ratedcurrent |
7.9 | 9.5 | 11.8 | 13.8 | |||
| EER | 4.2 | 4.2 | 4.2 | 4.2 | |||
| Heating | Capacity | BTU | 78.000 | 93.600 | 117.000 | 136.500 | |
| Inputpower | W | 5.200 | 6.240 | 7.800 | 9.100 | ||
| Rated current | A | 9.3 | 11.2 | 14.0 | 16.3 | ||
| COP | 4.4 | 4.4 | 4.4 | 4.4 | |||
| Max.current | A | 12.9 | 15.5 | 19.4 | 22.6 | ||
| Seawaterflow | m³/h | 3.9 | 4.7 | 5.9 | 6.9 | ||
| Chiller water flow | m³/h | 3.0 | 3.6 | 4.5 | 5.3 | ||
| Sea waterpipe | G1" | G1-1/4" | |||||
| Chillerwaterpipe | G1" | G1-1/4" | |||||
| iCondensed waterpipe | mm | G3/4" | |||||
| Noiselevel | dB(A) | ≤62 | ≤65 | ≤67 | ≤69 | ||
| Dimension(L*W*H) | mm | 655X482X500 | 667X478X610 | ||||
| Netweight | Kg | 95 | 101 | 112 | 120 | ||
| Refrigeranttype |
R410a |
||||||
| Model | MWA150-S2D/T | MWA240-S2D/T | MWA270-S2D/T | MWA320-S2D/T | |||||
| Powersupply | Ph-V-Hz | 3Ph/380V/50Hz | |||||||
| Cooling | Capacity | BTU | 150, 000 | 240, 000 | 270.000 | 320.000 | |||
| Input power | W | 10, 360 | 13.250 | 16.900 | 21, 400 | ||||
| Rated current | 19.5 | 27.5 | 32.5 | 40 | |||||
| EER | 4.2 | 4.2 | 4.2 | 4.2 | |||||
| Heating | Capacity | BTU | 189, 800 | 315.000 | 340.000 | 406.400 | |||
| Input power | W | 12, 180 | 17.400 | 19.850 | 25.890 | ||||
| Rated current | A | 23 | 33.6 | 36.3 | 46.1 | ||||
| COP | 4.4 | 4.4 | 4.4 | 4.4 | |||||
| Max.current | A | 31.2 | 40.3 | 44.7 | 54.3 | ||||
| Seawaterflow | m³/h | 9.6 | 15.8 | 16.3 | 19.4 | ||||
| Chiller water flow | m³/h | 7.6 | 12.1 | 13.6 | 16.1 | ||||
| Seawaterpipe | 2XG1-1/4" | G2-1/2" | |||||||
| Chillerwaterpipe | G1-1/2" | G2" | 2XG2-1/2" | ||||||
|
Condensed water pipe |
mm |
G3/4" | |||||||
| Noise level | dB(A) | ≤75 | ≤78 | ≤82 | ≤84 | ||||
| Dimension(L*W*H) | mm | 853X522X693 | 1169×705×921 | 1397X820X761 | |||||
| Netweight | Kg | 204 | 325 | 345 | 399 | ||||
| Refrigeranttype | R410a | ||||||||
| Model | MWA36-E2A | MWA48-E2A | MWA60-E2A | MWA120-S2A MWA180-S2A | |||
| Powersupply | Ph-V-Hz | 1Ph/220V/50Hz | 3Ph/380V/50Hz | ||||
| Cooling | Capacity | BTU | 36, 000 | 48, 000 | 60, 000 | 120, 000 | 180, 000 |
| Input power | W | 2, 510 | 3, 470 | 4, 070 | 8, 760 | 13, 100 | |
|
Rated current |
A | 11.4 | 15.8 | 18.5 | 15.9 | 24.5 | |
| EER | 4.2 | 4.0 | 4.2 | 4.0 | 4.0 | ||
| Heating | Capacity | BTU | 49, 500 | 58, 000 | 70, 500 | 153, 000 | 228, 000 |
| Input power | W | 3, 300 | 4, 040 | 4, 620 | 10, 480 | 16, 200 | |
| Rated current | A | 15 | 18.3 | 21 | 18.7 | 28.7 | |
| COP | 4.4 | 4.2 | 4.4 | 4.3 | 4.2 | ||
| Max.current | A | 20 | 23 | 26.5 | 22.8 | 33.1 | |
| Seawaterflow | m³/h | 2.5 | 3.0 | 3.6 | 7.7 | 11.5 | |
| Chiller water flow | m³/h | 1.8 | 2.4 | 3.0 | 6.1 | 9.1 | |
| Sea waterpipe | G1" | G1-1/4" | G1-1/2" | ||||
| Chillerwaterpipe | G1" | G1-1/4" | G1-1/2" | ||||
|
Condensed water pipe |
mm |
G3/4 | |||||
| Noise level | dB(A) | ≤52 | ≤55 | ≤62 | ≤68 | ≤73 | |
| Dimension(L*W*H) | mm | 640×430×667 | 640×450×670 | 950×600×876 | 1050×650×900 | ||
| Netweight | Kg | 102 | 104 | 105 | 192 | 256 | |
| Refrigerant type | R410a | ||||||
