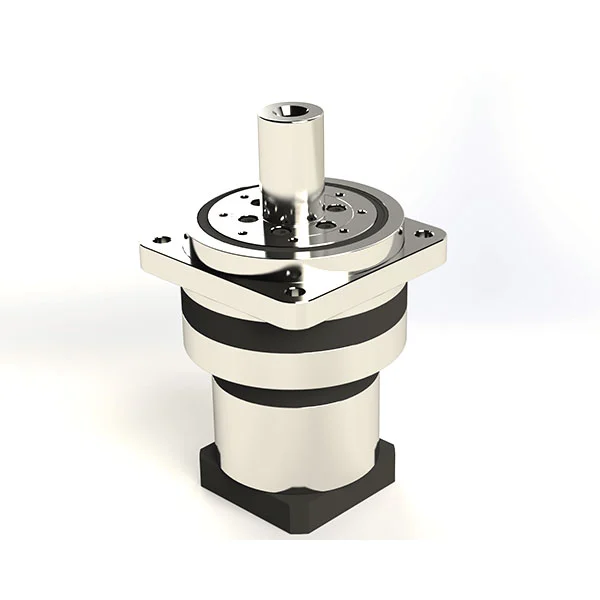

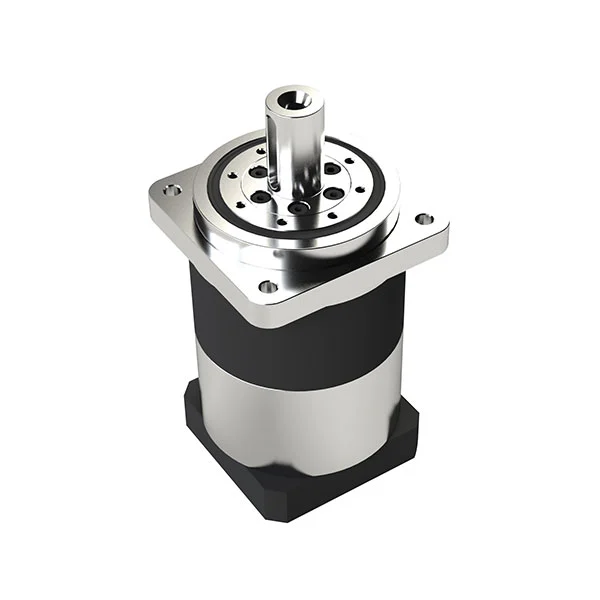

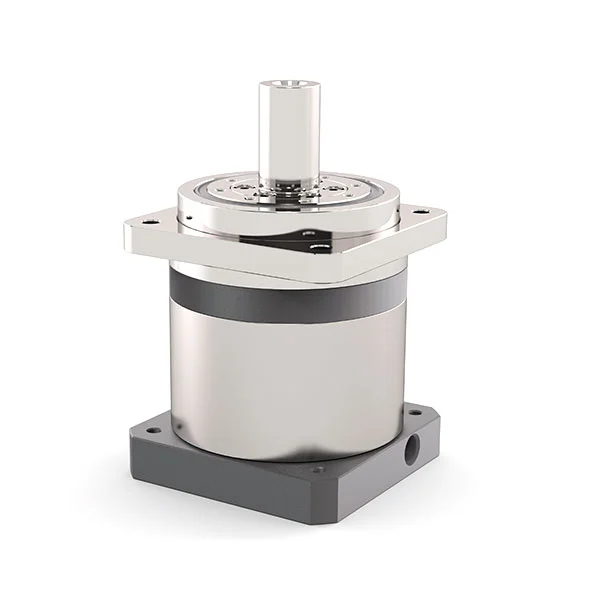

Planetary Reducers

Advantages of the Hollow Planetary Integrated Machine:

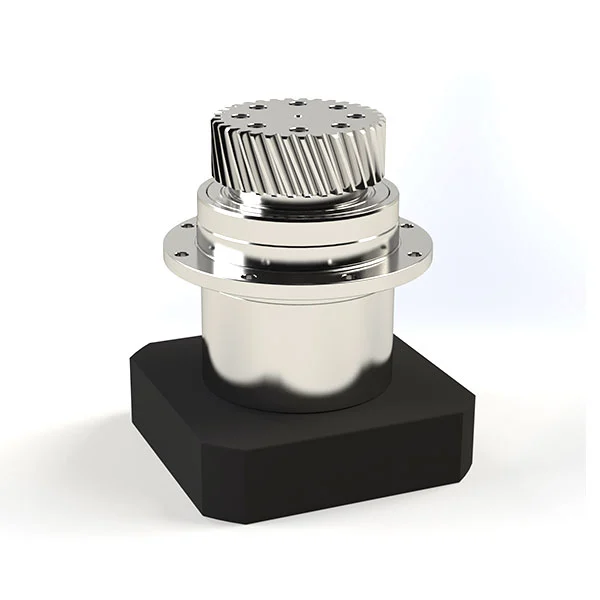

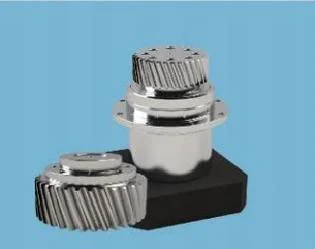

The hollow planetary machine also uses crossed roller bearings. (Currently, it is the first domestic enterprise that independently develops the structure of the planetary crossed roller bearing, and its load-bearing moment is several times that of the deep groove ball bearing.) This greatly increases the axial and radial forces.Meanwhile, the output shaft of the planetary gear is directly rolled into teeth to serve as the input end of the hollow platform. Planetary reducers have the advantages of high rigidity, high precision, low tendency to slip, strong gear meshing performance, long service life, small overall space and easy installation

Installation Instructionsfor KMI Hollow Rotary Table

① First, confirm whether the motor matches the platform, and wipe off any foreign matter on the surface.	② Remove the flat-end screws on the transition flange and rotate the input end to adjust the position until the fastening bolts of the locking ring can be seen.	③ Align the motor shaft with the reducer input end, insert it into the reducer, and pre-tighten the connecting bolts diagonally. At this time, please make sure that the fastening bolts are loose.
④ Place the reducer vertically on a flat surface with the motor mounting surface facing upwards. Slowly insert the motor shaft into the input shaft, taking care to avoid installing the motor onto the input shaft. Make sure that the motor flange is close to the reducer flange. Tighten the motor mounting bolts to the specified tightening torque.	⑤ Tighten the fastening bolts to the specified tightening torque using a torque wrench, etc.	⑥ Tighten the flat-point screw.

Motor Installtion Instructions

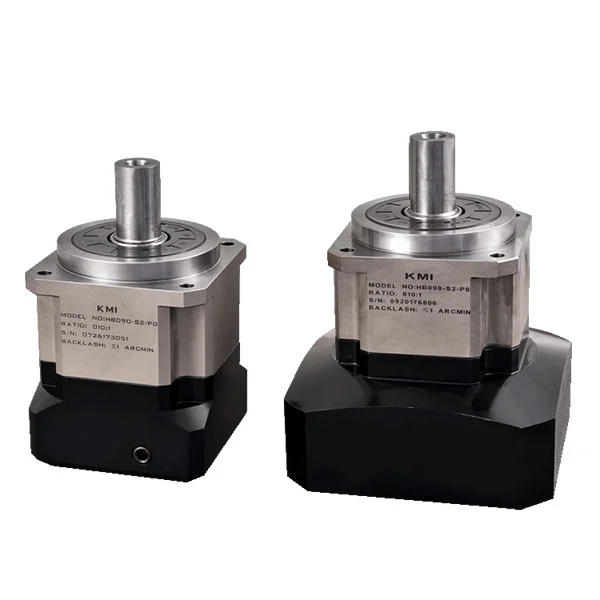

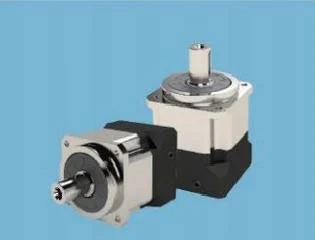

	HB Series	First Generation

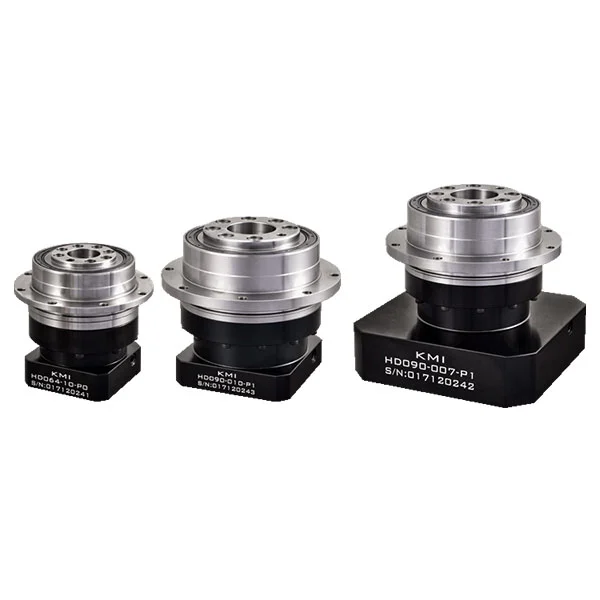

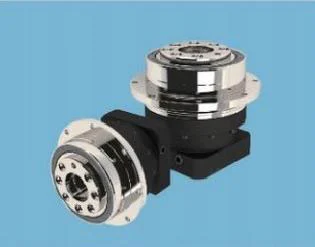

	HD Series	First Generation

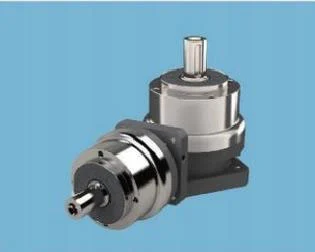

	HE Series	First Generation

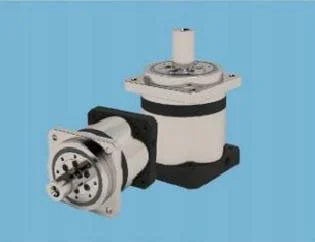

	HA Series	Second Generation
	HDA Series	Second Generation
